2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

Assembly-License Plate Lamp/Rear Camera




Component ID: 18
Component : ASSEMBLY-LICENSE PLATE LAMP/REAR CAMERA

Connector:
Name : ASSEMBLY-LICENSE PLATE LAMP/REAR CAMERA
Color :
# of pins : 10

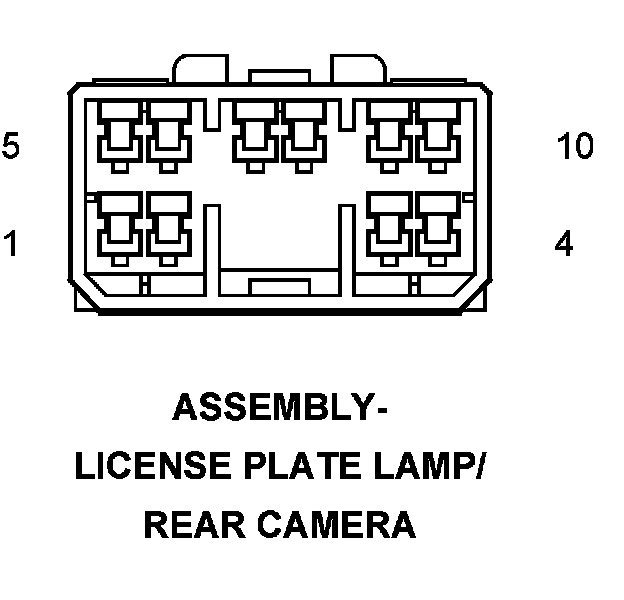

Factory service manual diagram




Pin Circuit Description
1 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
2 Z800 20BK GROUND
3 Q80 20OR/VT FLIP-UP GLASS SWITCH SENSE
4 - -
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 X971 20DG/OR CAMERA RETURN
7 X970 20DG/BR CAMERA SIGNAL
8 X972 20DG/WT CAMERA SHIELD
9 - -
10 L1 16WT/LG BACKUP LAMP FEED



Connector:
Name : ASSEMBLY-LICENSE PLATE LAMP/REAR CAMERA
Color :
# of pins : 10
Qualifier : (COMPONENT SIDE)

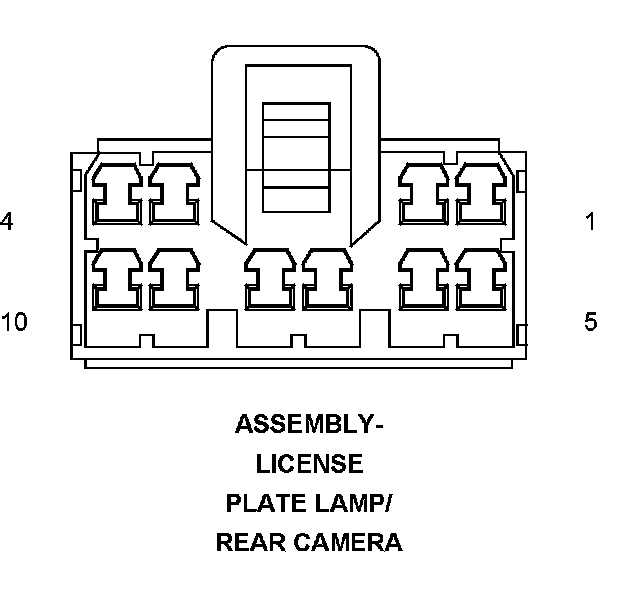

Factory service manual diagram




Pin Circuit Description
1 WT FUSED PARK LAMP RELAY OUTPUT
2 LG GROUND
3 TN/LG FLIP-UP GLASS SWITCH SENSE
4 - -
5 BL LIFTGATE CHIME DRIVER
6 BK CAMERA RETURN
7 RD CAMERA SIGNAL
8 - -
9 - -
10 TN BACKUP LAMP FEED
