2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Module-Hydraulic Cooling Fan
Component ID: 223

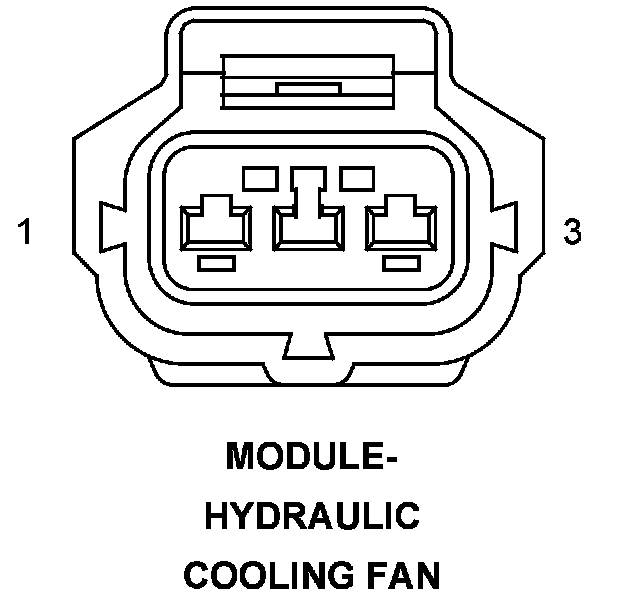

Component : MODULE-HYDRAULIC COOLING FAN
Connector:
Name : MODULE-HYDRAULIC COOLING FAN
Color :
# of pins : 3
Pin Circuit Description
1 A916 18RD FUSED B(+)
Pin Circuit Description
1 A916 18RD/GY FUSED B(+)
2 K173 20BR/VT HYDRAULIC RADIATOR FAN SOLENOID CONTROL
3 Z823 20BK/DG GROUND
Component Location - 7
