2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Motor-Seat Adjuster-Rear Driver Vertical
Component ID: 248

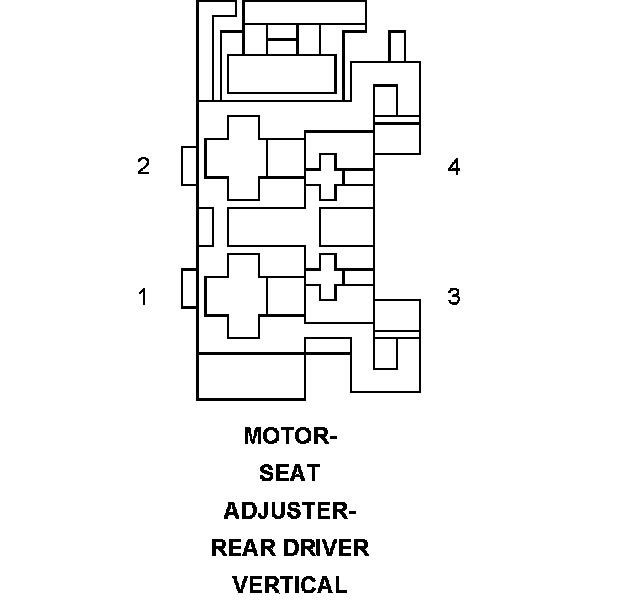

Component : MOTOR-SEAT ADJUSTER-REAR DRIVER VERTICAL
Connector:
Name : MOTOR-SEAT ADJUSTER-REAR DRIVER VERTICAL
Color :
# of pins : 4
Pin Circuit Description
1 P13 16LG/OR DRIVER SEAT REAR RISER DOWN DRIVER
Pin Circuit Description
1 P113 16LG/WT DRIVER SEAT REAR VERTICAL DOWN DRIVER
2 P11 16LG/YL DRIVER SEAT REAR RISER UP DRIVER
2 P111 16LG/YL DRIVER SEAT REAR VERTICAL UP DRIVER
3 G492 20LB/VT DRIVER SEAT REAR VERTICAL SENSOR GROUND
4 G402 20VT/DB DRIVER SEAT REAR VERTICAL POSITION SENSE
