2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

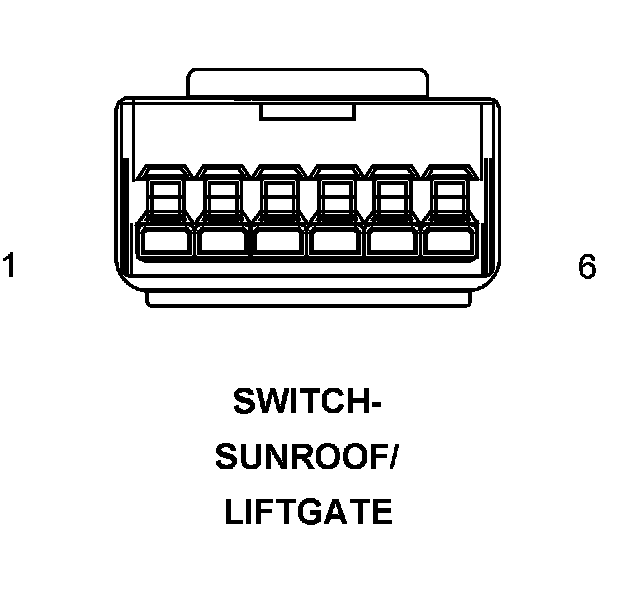

Switch-Sunroof/Liftgate
Component ID: 589
Component : SWITCH-SUNROOF/LIFTGATE
Connector:
Name : SWITCH-SUNROOF/LIFTGATE
Color :
# of pins : 6
Pin Circuit Description
1 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
2 Q6 20OR/LG SUNROOF SWITCH SUPPLY
3 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
4 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
5 Z915 20BK GROUND
6 G25 20VT/TN DECKLID/LIFTGATE RELEASE SWITCH SENSE
