2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

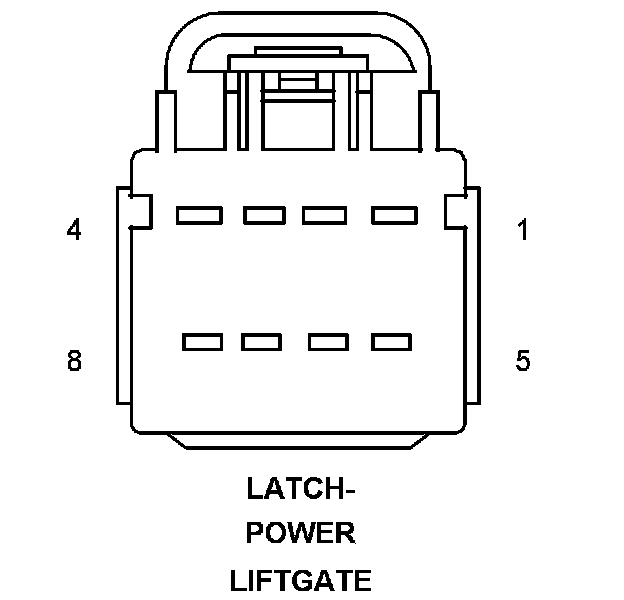

Latch-Power Liftgate
Component ID: 200
Component : LATCH-POWER LIFTGATE
Connector:
Name : LATCH-POWER LIFTGATE
Color :
# of pins : 8
Pin Circuit Description
1 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
2 Q79 20OR/LB SECTOR SWITCH SENSE
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
5 Q901 20OR/VT LOGIC GROUND
6 Q76 20OR/YL LATCH SECONDARY POSITION SENSE
7 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
8 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
