2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Pedal Positioning Relay
Component ID: 269

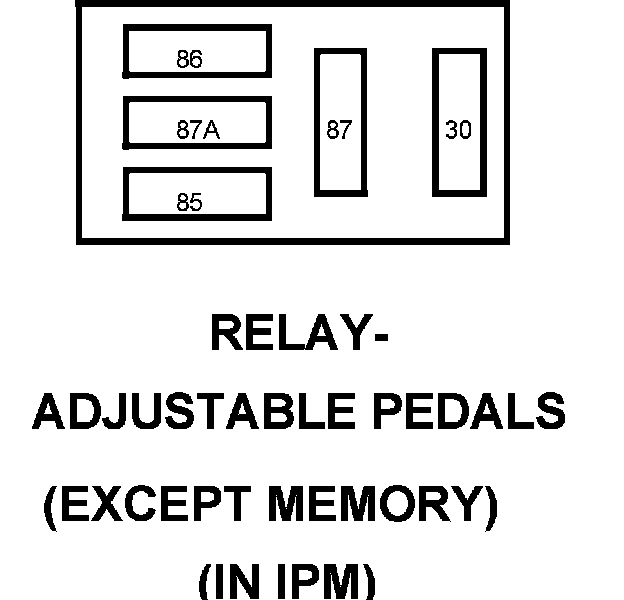

Component : RELAY-ADJUSTABLE PEDALS
Connector:
Name : RELAY-ADJUSTABLE PEDALS
Color :
# of pins : 0
Qualifier : (EXCEPT MEMORY)
30 INTERNAL FUSED B(+)
85 INTERNAL ADJUSTABLE PEDALS RELAY CONTROL
86 INTERNAL FUSED B(+)
87 - -
87A A72 18RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
