2008 Jeep Commander 4WD V6-3.7LSECTION Oil Temperature Sensor/Switch, Engine
Component ID: 508
Component : SENSOR-OIL TEMPERATURE

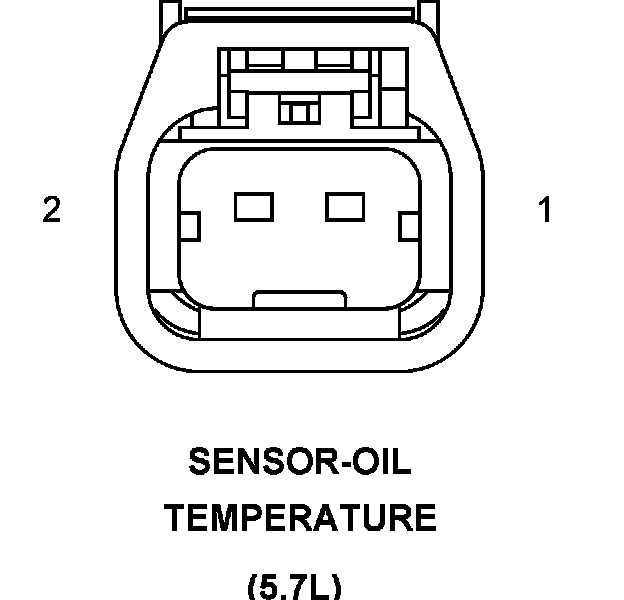

Connector:
Name : SENSOR-OIL TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (5.7L)
Pin Circuit Description
1 G224 20VT/GY ENGINE OIL TEMPERATURE SIGNAL
2 K900 20DB/DG SENSOR GROUND
Component Location - 29
Component Location - 24

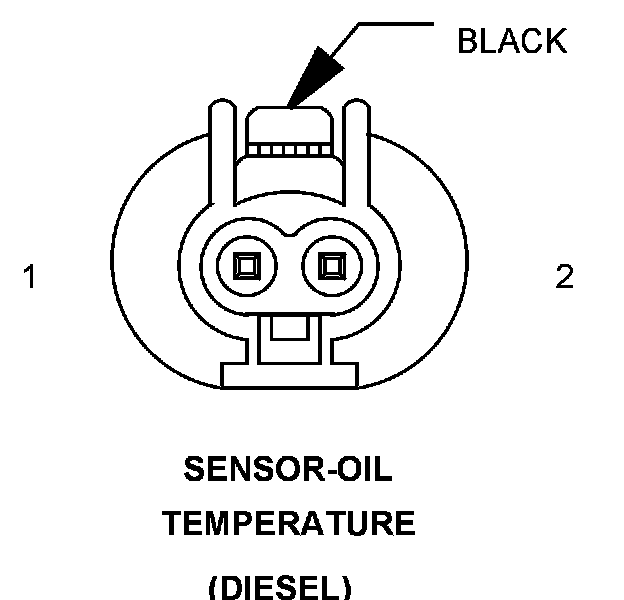

Connector:
Name : SENSOR-OIL TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)
Pin Circuit Description
1 Z36 18YL/DG OIL TEMPERATURE SENSOR GROUND
2 G224 20YL/GY OIL TEMPERATURE SENSOR SIGNAL
Component Location - 29
Component Location - 24
