Component ID: 203
Component : MIRROR-INSIDE REARVIEW

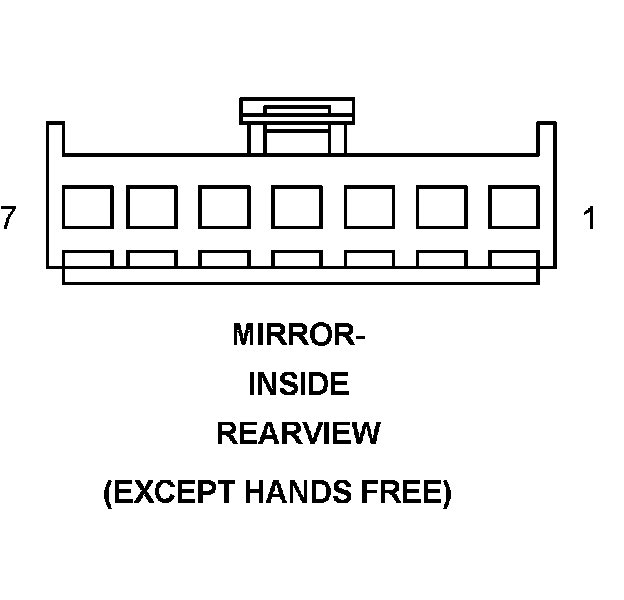

Connector:
Name : MIRROR-INSIDE REARVIEW
Color :
# of pins : 7
Qualifier : (EXCEPT HANDS FREE)

Pin Circuit Description
1 F921 20PK/YL FUSED RUN RELAY OUTPUT
2 Z915 20BK GROUND
3 L1 18BR/LB BACKUP LAMP FEED
4 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
5 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)
6 D55 20BR/OR CAN B BUS (+)
7 D54 20WT CAN B BUS (-)

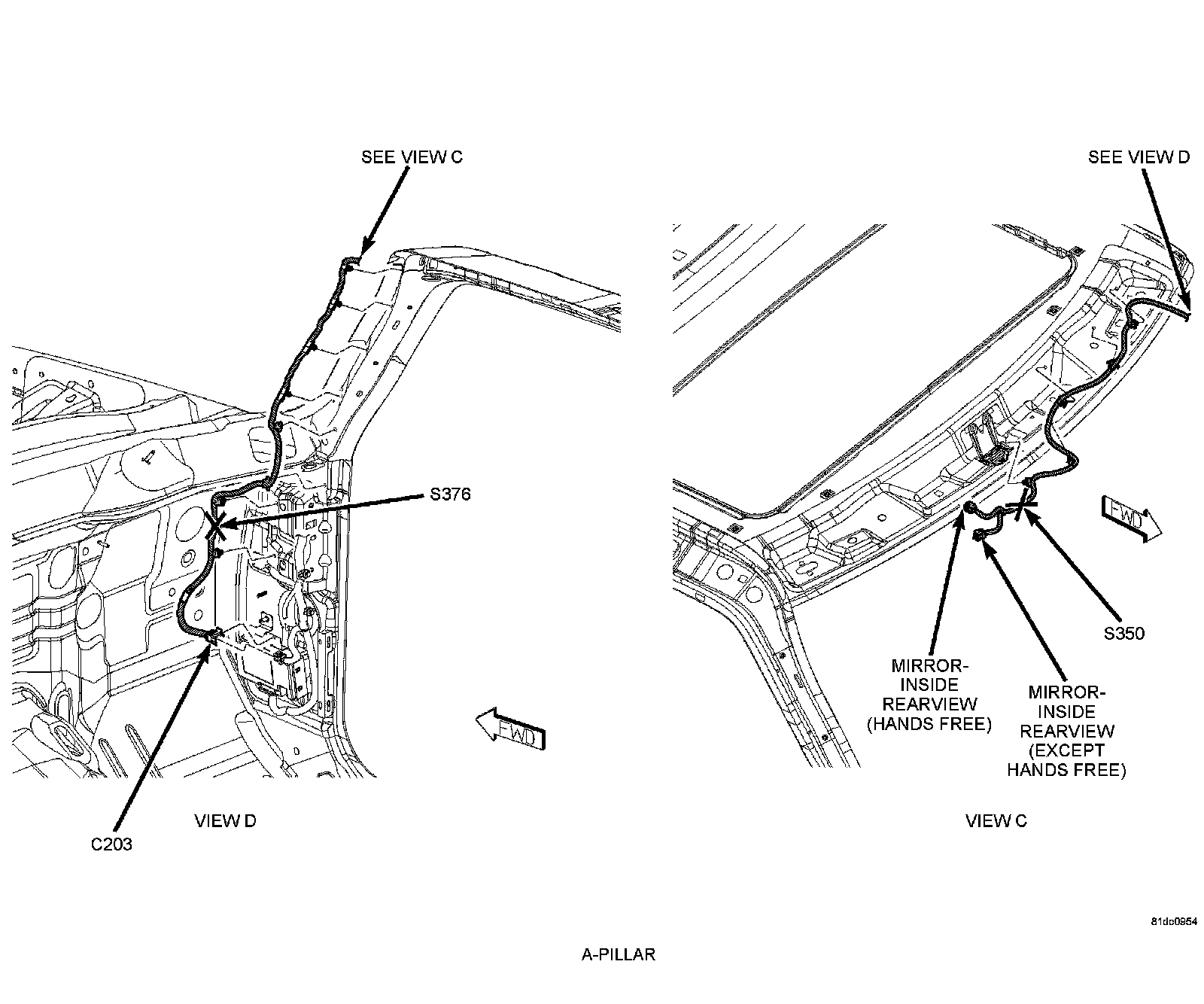

Component Location - 46

Component Location - 47

Connector:
Name : MIRROR-INSIDE REARVIEW
Color :
# of pins : 16
Qualifier : (HANDS FREE)

Pin Circuit Description
1 X712 20BR/RD MICROPHONE 1 IN (+)
2 X792 20DB/YL MICROPHONE IN (-)
3 X722 20DB MICROPHONE 2 IN (+)
4 - -
5 - -
6 D55 20WT/OR CAN B BUS (+)
7 D54 20WT CAN B BUS (-)
8 Z915 20BK GROUND
9 L1 18WT/LG BACKUP LAMP FEED
10 X835 20BR/YL SENSOR GROUND
11 - -
12 - -
13 F921 20PK/YL FUSED RUN RELAY OUTPUT
14 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
15 X793 20BR/WT MICROPHONE FEED
16 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)

Component Location - 46

Component Location - 47
