2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Four Wheel Drive Selector Switch
Component ID: 590

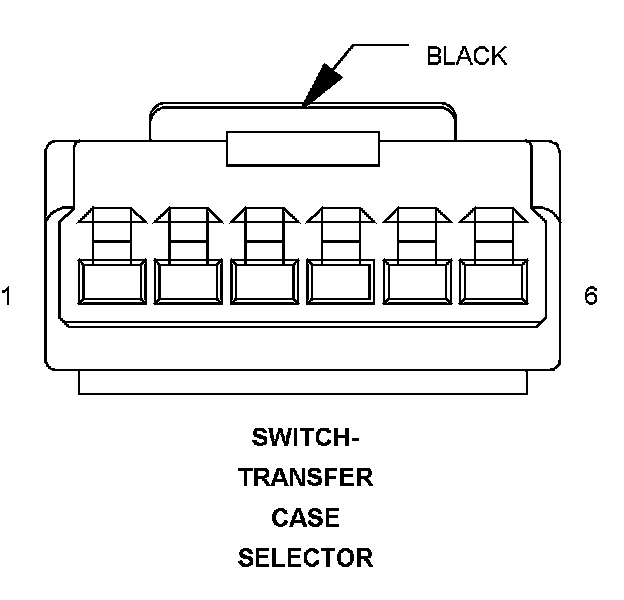

Component : SWITCH-TRANSFER CASE SELECTOR
Connector:
Name : SWITCH-TRANSFER CASE SELECTOR
Color : BLACK
# of pins : 6
Pin Circuit Description
1 Z907 20BK GROUND
2 E2 20OR/BR PANEL LAMPS DRIVER
3 F943 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 G95 20VT/BR 4WD NEUTRAL INDICATOR
5 K977 20BR/WT MODE SELECT
6 K504 20BR DRIVETRAIN 5 VOLT SUPPLY
Component Location - 52
