Module-Door-Driver

Component ID: 212
Component : MODULE-DOOR-DRIVER

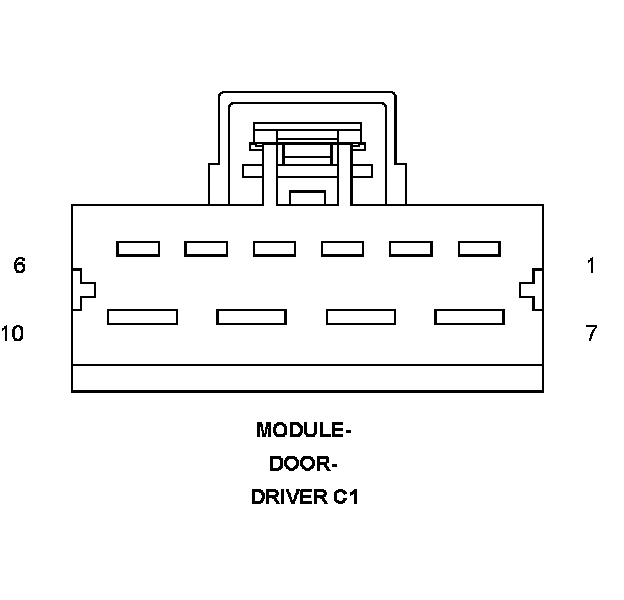

Connector:
Name : MODULE-DOOR-DRIVER C1
Color :
# of pins : 10




Pin Circuit Description
1 Q301 20OR/WT DRIVER WINDOW HALL SENSOR A SIGNAL
2 Q991 20BK/OR DRIVER WINDOW HALL SENSOR RETURN
3 Q303 20WT/OR DRIVER WINDOW HALL SENSOR B SIGNAL
4 A931 20RD FUSED B(+)
4 A931 20RD/WT FUSED B(+)
5 C910 20DB/GY DRIVER MIRROR HEATER RETURN
6 C110 20DB/LB DRIVER MIRROR HEATER DRIVER
7 A929 16RD/DB FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
8 Z911 20BK GROUND
9 Q321 16OR/DB DRIVER WINDOW EXPRESS DOWN DRIVER
10 Q311 16OR/LB DRIVER WINDOW EXPRESS UP DRIVER

Component Location - 65

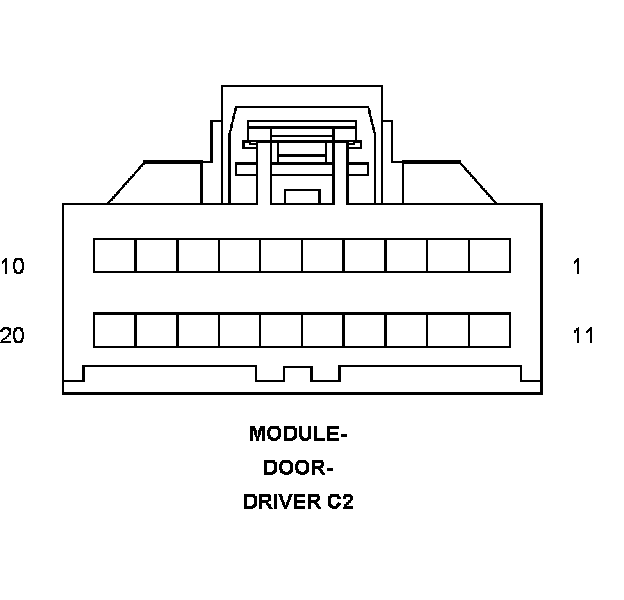

Connector:
Name : MODULE-DOOR-DRIVER C2
Color :
# of pins : 20




Pin Circuit Description
1 D54 20WT CAN B BUS (-)
2 D55 20WT/OR CAN B BUS (+)
3 Q15 20OR/LB WINDOW LOCK OUT SWITCH OUTPUT
4 Q994 20BK/BR DRIVER EXPRESS WINDOW SWITCH RETURN
5 - -
6 P75 20TN/LG DRIVER MIRROR HORIZONTAL DRIVER
7 P71 20TN/DG DRIVER MIRROR VERTICAL DRIVER
8 P73 20TN/VT DRIVER MIRROR COMMON DRIVER
9 - -
10 - -
11 Q305 20OR DRIVER WINDOW HALL SENSOR SUPPLY
12 Z911 20BK GROUND
13 Q221 20OR/DG MASTER SWITCH LEFT FRONT WINDOW MUX
14 Q222 20OR/GY MASTER SWITCH RIGHT FRONT WINDOW MUX
15 G775 20OR/VT LEFT DOOR LOCK SWITCH RETURN
15 G776 20VT/OR RIGHT DOOR LOCK SWITCH RETURN
16 G161 20VT/DG LEFT DOOR LOCK SWITCH MUX
16 G160 20VT/LG RIGHT DOOR LOCK SWITCH MUX
17 P669 20OR/LG DRIVER MIRROR SENSOR SUPPLY
18 P67 20TN/OR DRIVER MIRROR VERTICAL POSITION SIGNAL
19 P65 20TN/VT DRIVER MIRROR HORIZONTAL POSITION SIGNAL
20 P69 20TN/WT DRIVER MIRROR SENSOR GROUND

Component Location - 65

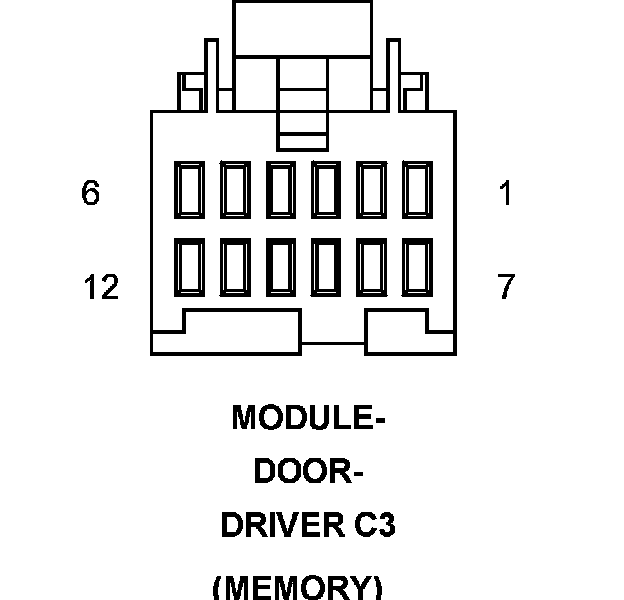

Connector:
Name : MODULE-DOOR-DRIVER C3
Color :
# of pins : 12
Qualifier : (MEMORY)




Pin Circuit Description
1 P703 20DB/LG MIRROR HORIZONTAL LEFT SWITCH SENSE
2 P704 20LG/TN MIRROR HORIZONTAL RIGHT SWITCH SENSE
3 P705 20LG/OR MIRROR VERTICAL DOWN SWITCH SENSE
4 P706 20LG/GY MIRROR VERTICAL UP SWITCH SENSE
5 P439 20LG/OR MEMORY SELECT SWITCH MUX
6 - -
7 - -
8 P76 20TN/LB MIRROR COMMON DRIVER
9 - -
10 - -
11 G920 20VT/YL MEMORY SELECT SWITCH RETURN
12 - -

Component Location - 65
