2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC
Component ID: 217
Component : MODULE-FRONT BLOWER POWER
Connector:

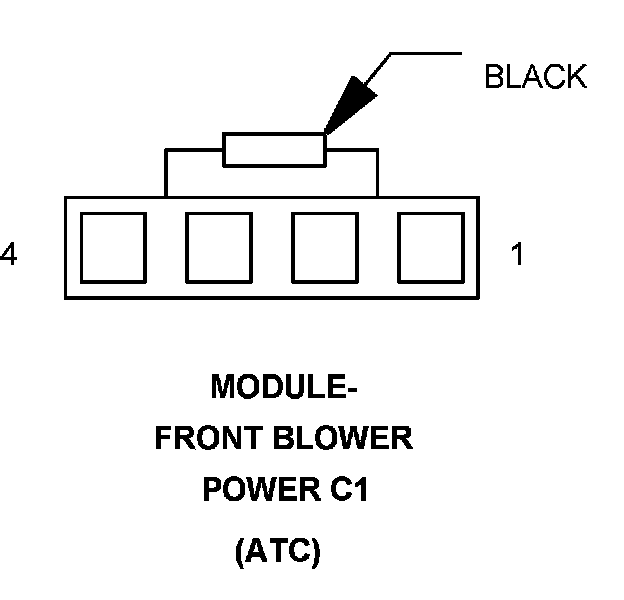

Name : MODULE-FRONT BLOWER POWER C1
Color : BLACK
# of pins : 4
Qualifier : (ATC)
Pin Circuit Description
1 - -
2 Z134 12BK/LG GROUND
3 C56 20VT FRONT BLOWER CONTROL
4 C7 12DB FRONT BLOWER MOTOR RELAY OUTPUT
Component Location - 34
Connector:

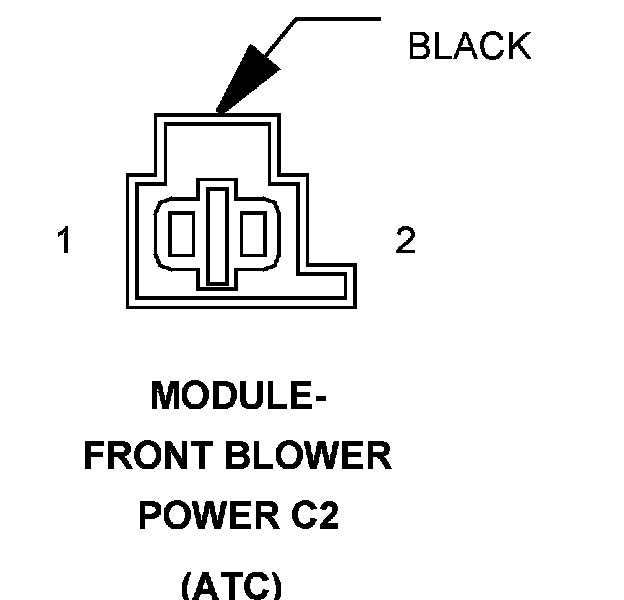

Name : MODULE-FRONT BLOWER POWER C2
Color : BLACK
# of pins : 2
Qualifier : (ATC)
Pin Circuit Description
1 C7 12DG FRONT BLOWER MOTOR RELAY OUTPUT
2 C75 12BK BLOWER MOTOR GROUND
Component Location - 34
