2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
C306
Component ID: 40
Component : C306

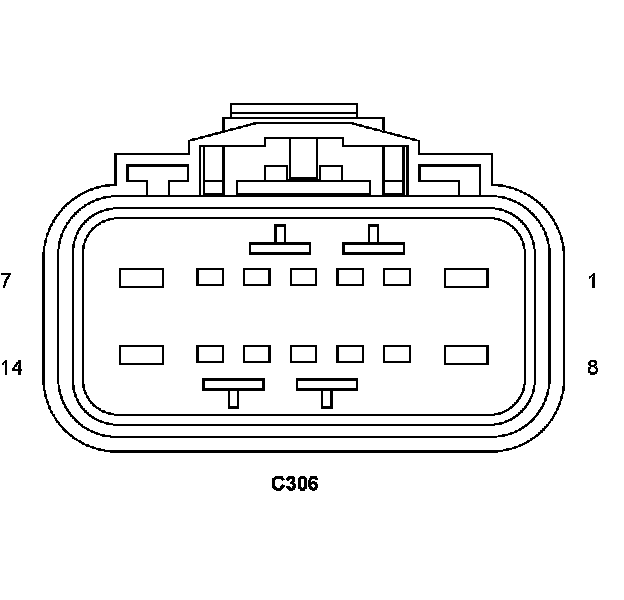

Connector:
Name : C306
Color :
# of pins : 14
Gender : FEMALE
Pin Circuit Description
1 A33 16RD/YL FUSED B(+)
2 R505 20LG/DG DRIVER SEAT BELT TENSIONER LINE 1
3 R503 20LG/YL DRIVER SEAT BELT TENSIONER LINE 2
4 - -
5 G10 20VT/LG DRIVER SEAT BELT SWITCH SENSE
6 G912 20VT/WT ADJUSTABLE PEDALS SENSOR RETURN
6 P187 18LG/BR LEFT SEAT HEATER B(+) DRIVER
6 P188 18LG/VT RIGHT SEAT HEATER B(+) DRIVER
7 Z911 14BK LEFT SEAT HEATER B(+) DRIVER
8 P205 16LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
8 Z917 14BK/WT GROUND
9 G11 20VT/TN ADJUSTABLE PEDALS SENSOR SUPPLY
9 D54 20WT CAN B BUS (-)
10 G12 20VT/BR ADJUSTABLE PEDALS SENSOR SIGNAL
10 D55 20WT/OR CAN B BUS (+)
11 Q101 20OR/LB ADJUSTABLE PEDALS SWITCH GROUND
12 Q102 20OR/DB ADJUSTABLE PEDALS SWITCH FORWARD
12 D54 20WT CAN B BUS (-)
13 Q103 20OR/LG ADJUSTABLE PEDALS SWITCH REARWARD
13 D55G 20WT/OR CAN B BUS (+)
14 P206 16LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
Component Location - 62
Component Location - 59

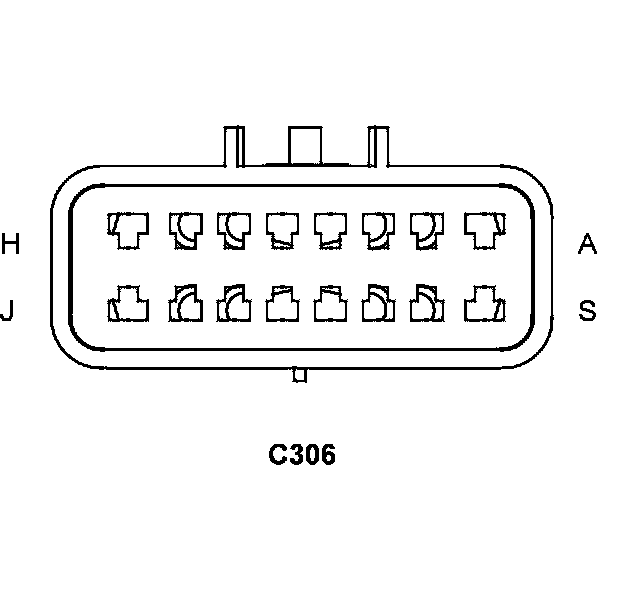

Connector:
Name : C306
Color :
# of pins : 16
Gender : MALE
A A33 16RD/YL FUSED B(+)
C G12 20VT/BR ADJUSTABLE PEDALS SENSOR SIGNAL
D P206 16LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
E P205 16LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
F G912 20VT/WT ADJUSTABLE PEDALS SENSOR RETURN
G G11 20VT/TN ADJUSTABLE PEDALS SENSOR SUPPLY
H Z911 14BK GROUND
J - -
J P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
K D54 20WT CAN B BUS (-)
L D55 20WT/OR CAN B BUS (+)
M Q101 20OR/LB ADJUSTABLE PEDALS SWITCH GROUND
N Q102 20OR/DB ADJUSTABLE PEDALS SWITCH FORWARD
P Q103 20OR/LG ADJUSTABLE PEDALS SWITCH REARWARD
R - -
S - -
Component Location - 62
Component Location - 59
