2008 Jeep Commander 4WD V6-3.7L
Brake Light Switch
2008 Jeep Commander 4WD V6-3.7LSECTION Brake Light Switch
Component ID: 587
Component : SWITCH-STOPLAMP
Connector:

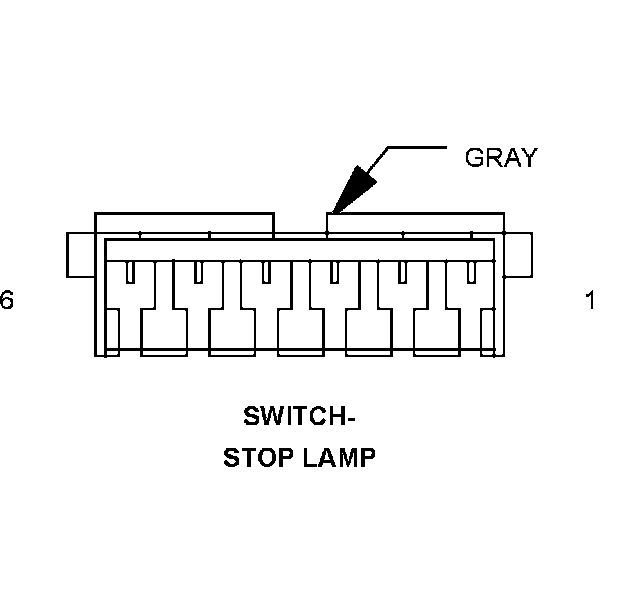

Name : SWITCH-STOPLAMP
Color : GRAY
# of pins : 6
Pin Circuit Description
1 A103 18GY/RD FUSED B(+)
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
3 F942 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 B16 20LB/DG BRAKE SWITCH NO. 2 SIGNAL
5 Z904 20BK GROUND
6 B15 20DG/WT BRAKE SWITCH NO. 1 SIGNAL
Component Location - 3
Component Location - 4
