2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Lamp-Tail/Stop/Turn-Right
Component ID: 191
Component : LAMP-TAIL/STOP/TURN-RIGHT

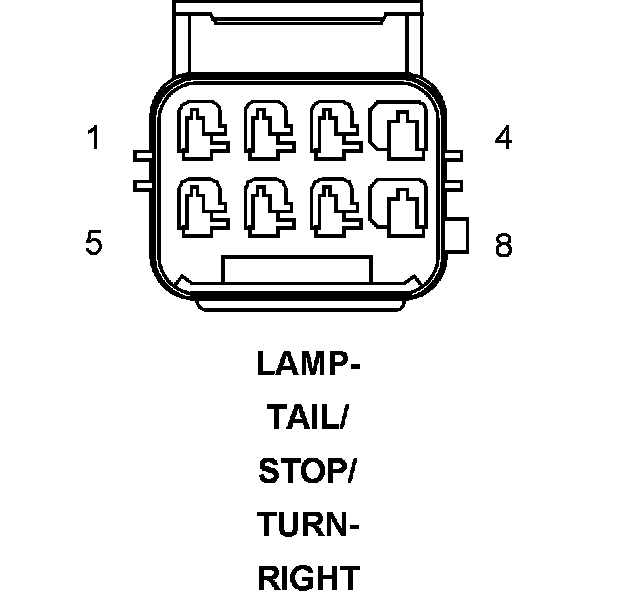

Connector:
Name : LAMP-TAIL/STOP/TURN-RIGHT
Color :
# of pins : 8
Pin Circuit Description
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 A35 18RD/DG -
3 - -
4 - -
5 L778 20WT/DB FUSED PARK LAMP RELAY OUTPUT
5 L778 20WT/LB FUSED PARK LAMP RELAY OUTPUT
6 L1 18WT/LG BACKUP LAMP FEED
7 L62 18WT/OR RIGHT REAR TURN SIGNAL CONTROL
8 Z918 18BK GROUND

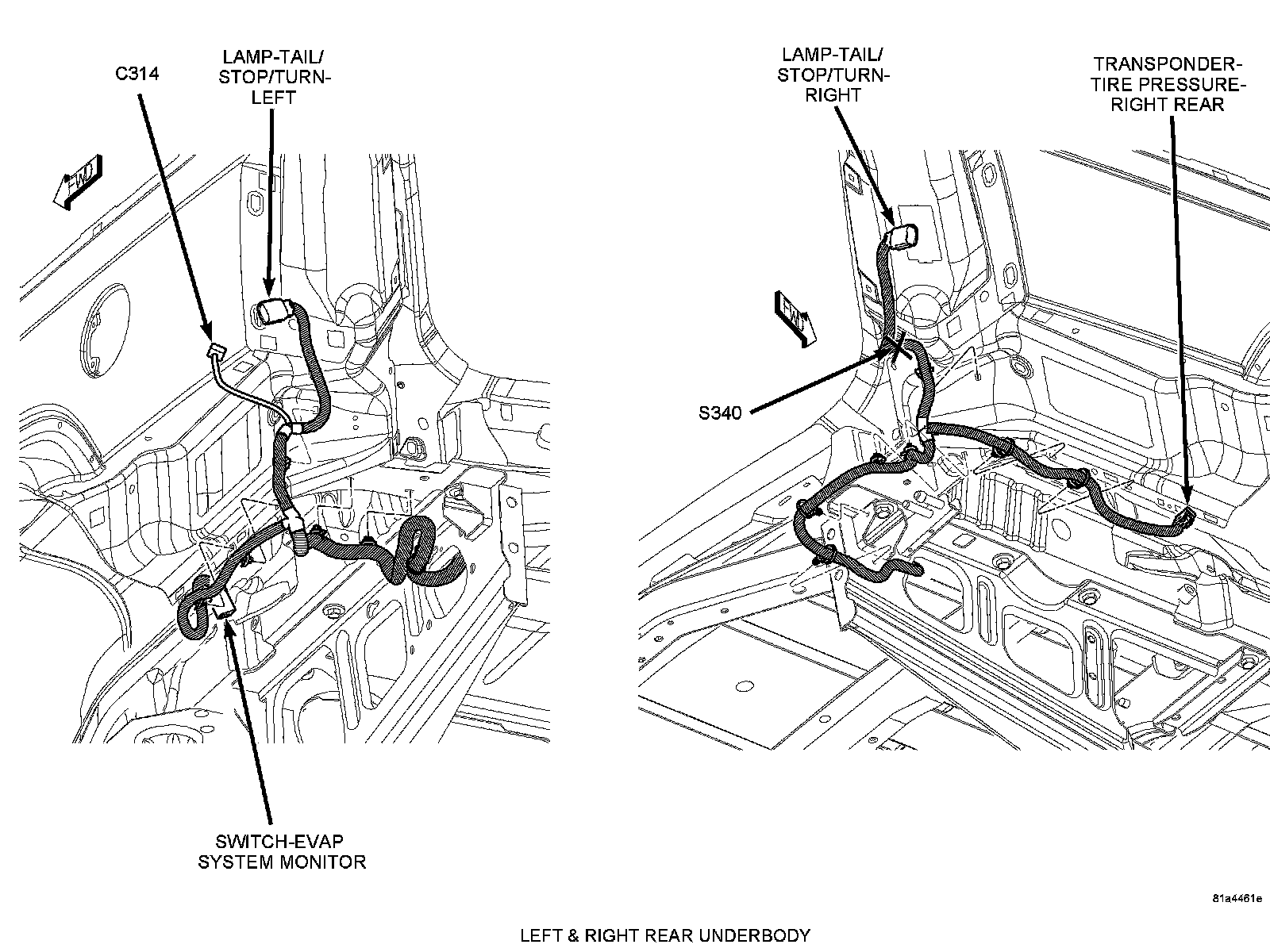

Component Location - 71
