2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Resistor-Blower Motor-Rear
Component ID: 302

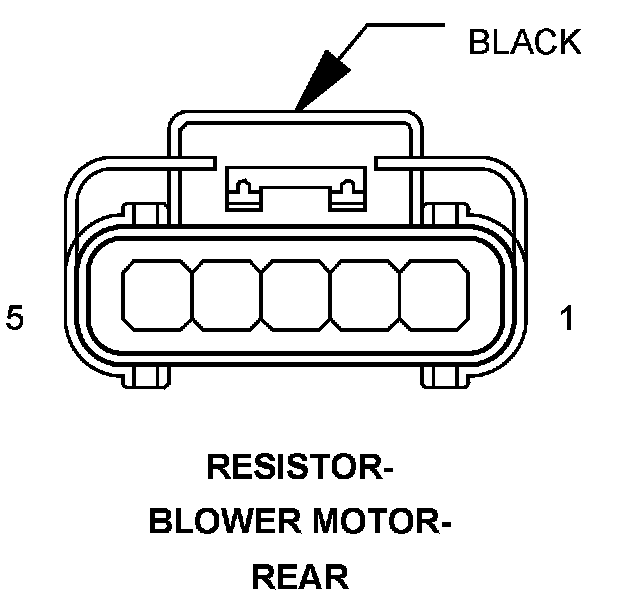

Component : RESISTOR-BLOWER MOTOR-REAR
Connector:
Name : RESISTOR-BLOWER MOTOR-REAR
Color : BLACK
# of pins : 5
Pin Circuit Description
1 - -
2 C951 14BK/WT REAR BLOWER HIGH SPEED
3 C153 14DB/VT REAR BLOWER HIGH SPEED
4 C152 16LB REAR BLOWER MEDIUM SPEED
5 C151 16DB/BR REAR BLOWER LOW SPEED
Component Location - 60
