2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

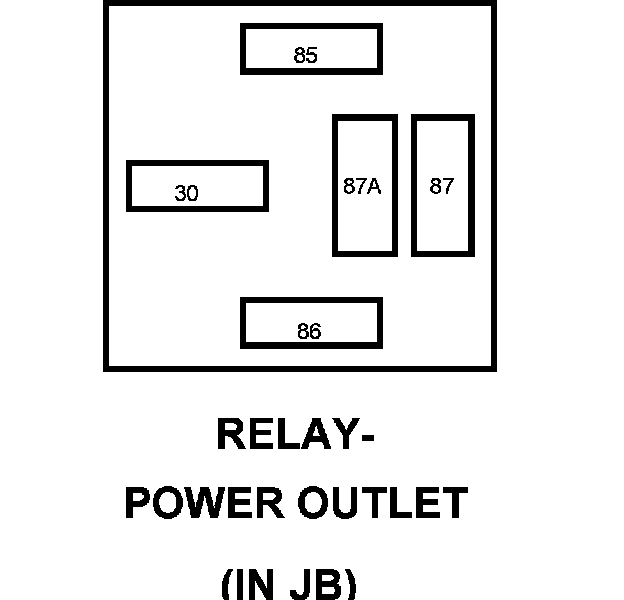

Relay-Power Outlet
Component ID: 282
Component : RELAY-POWER OUTLET
Connector:
Name : RELAY-POWER OUTLET
Color :
# of pins : 0
30 A925 14RD/LG FUSED B(+)
85 Z387 16BK GROUND
86 INTERNAL RUN/ACCESSORY RELAY OUTPUT
87 INTERNAL POWER OUTLET RELAY OUTPUT
87A - -
