2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Intake Air Temperature Sensor
Component ID: 499
Component : SENSOR-INTAKE AIR TEMPERATURE

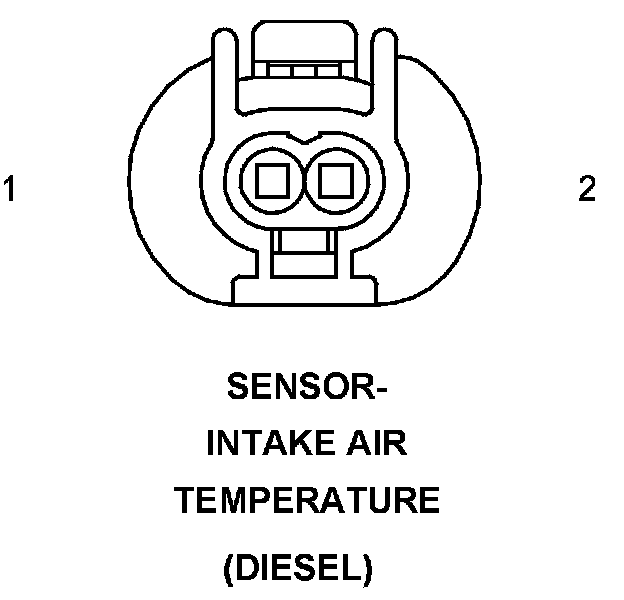

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color :
# of pins : 2
Qualifier : (DIESEL)
Pin Circuit Description
1 K960 18BR/VT IAT GROUND
2 K21 20DG/WT IAT SIGNAL

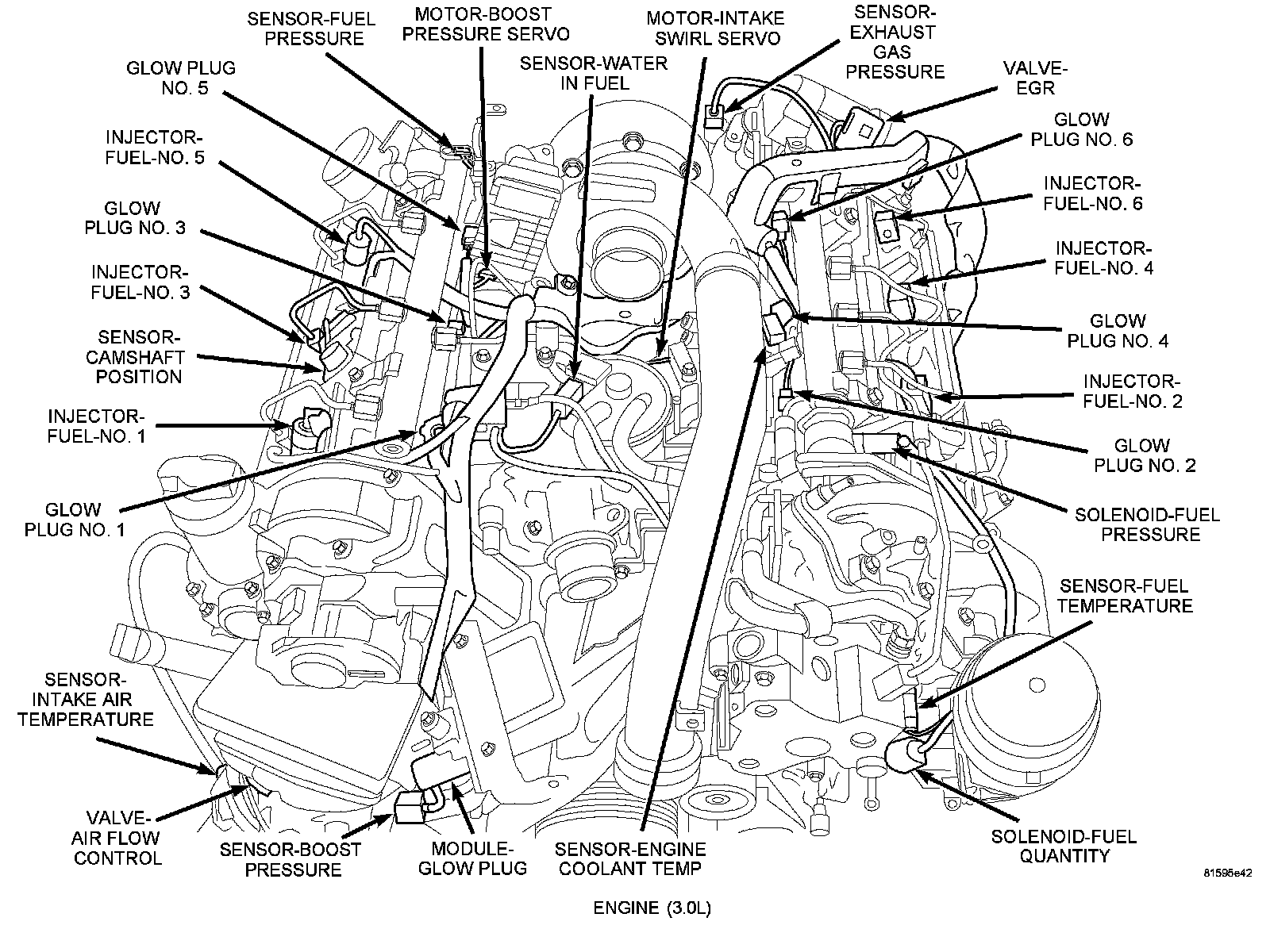

Component Location - 30
Component Location - 20
Component Location - 24

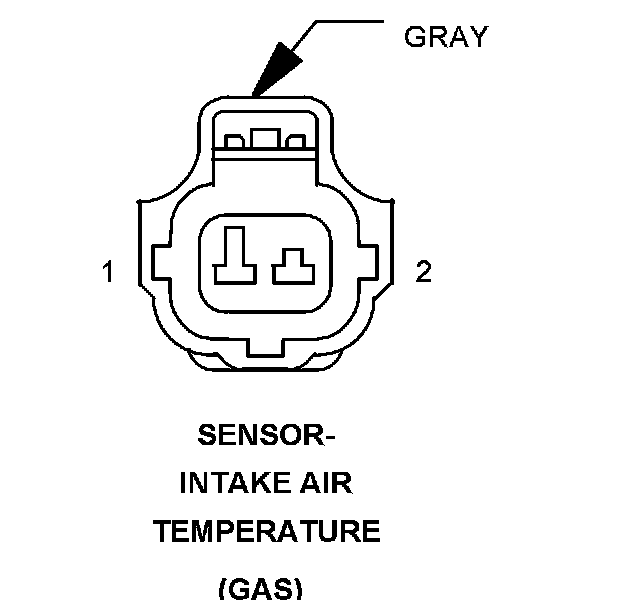

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color : GRAY
# of pins : 2
Qualifier : (GAS)
Pin Circuit Description
1 K21 20BR/WT IAT SIGNAL
2 K900 20DB/DG SENSOR GROUND
Component Location - 30
Component Location - 20
Component Location - 24
