2008 Jeep Commander 4WD V6-3.7L
Accelerator Pedal Position Sensor
2008 Jeep Commander 4WD V6-3.7LSECTION Accelerator Pedal Position Sensor
Component ID: 480
Component : SENSOR-ACCELERATOR PEDAL POSITION

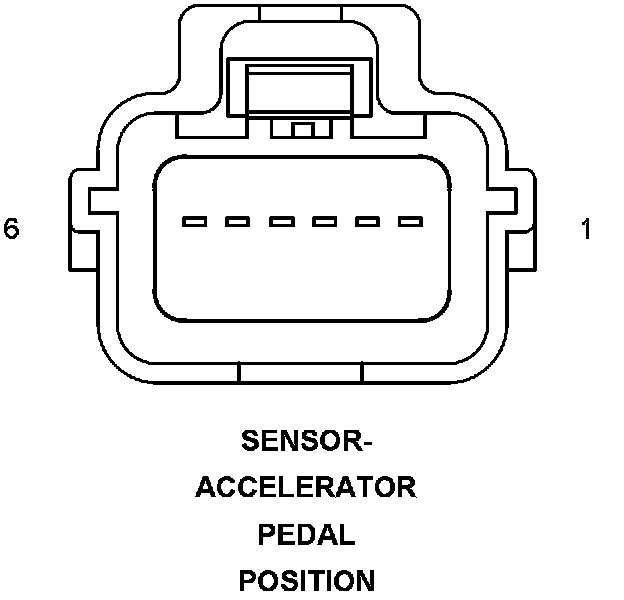

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color :
# of pins : 6
Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 K23 20BR/WT APPS NO. 1 SIGNAL
3 K167 18BR/YL APPS NO. 1 SENSOR GROUND
3 K167 20BR/YL APPS NO. 1 SENSOR GROUND
4 K400 20BR/VT APPS NO. 2 SENSOR GROUND
5 K29 20WT/BR APPS NO. 2 SIGNAL
6 F856 20YL/PK 5 VOLT SUPPLY
Component Location - 4
