2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Rear
REAR

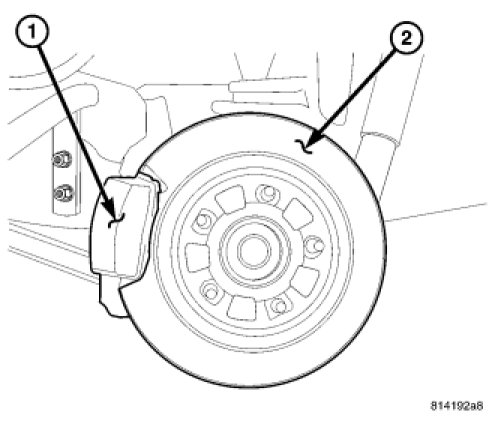

1. Install the brake pads.
2. Lubricate the slide pins and slide pin bushings with caliper slide grease or the grease provided with the caliper.

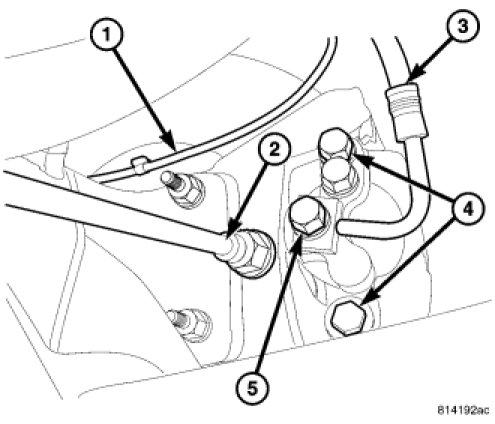

3. Install the caliper (1) on the anchor.
4. Install the caliper slide pin bolts (4) and tighten to 25 Nm (18 ft. lbs.).
CAUTION: Verify brake hose is not twisted or kinked before tightening fitting bolt.
5. Install brake hose (3) to caliper with a new gasket washers and tighten banjo bolt (5) to 31 Nm (23 ft. lbs.).
6. Fill and bleed brake system.
7. Install wheel and tire assemblies.
8. Remove supports and lower vehicle.
