2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Removal
REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Remove the seat back cushion/cover. Seat Back Cushion / Cover - Removal

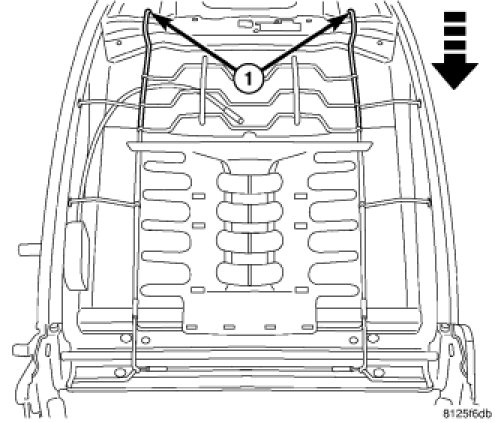

3. Release the lumbar mat side wires (1) by pulling out on the wire supports and then pulling them in.

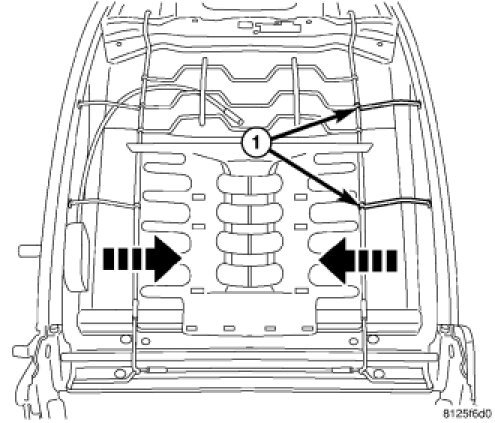

4. Squeeze the lower support wires (1) in and release the lower wires.

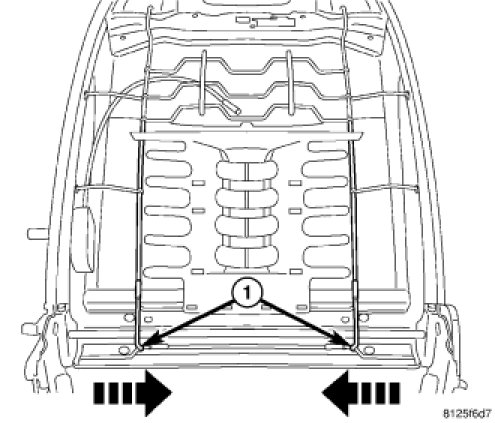

5. Pull the upper support wires (1) down and release the lumbar mat from the seat back frame.

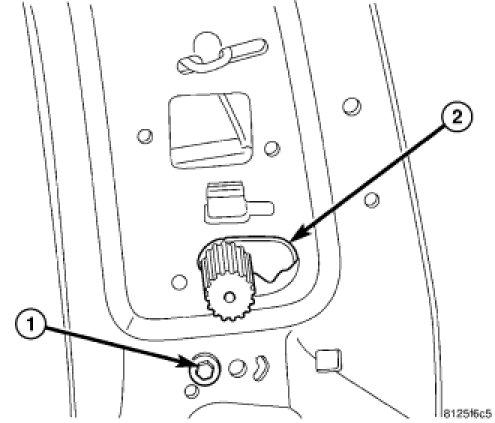

6. Remove the rivet (1) and remove the lumbar mechanism (2).
