2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Installation
INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions

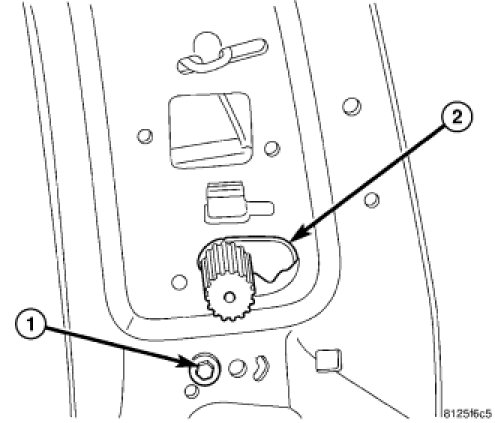

2. Install the lumbar mechanism (2) and install a new rivet (1).

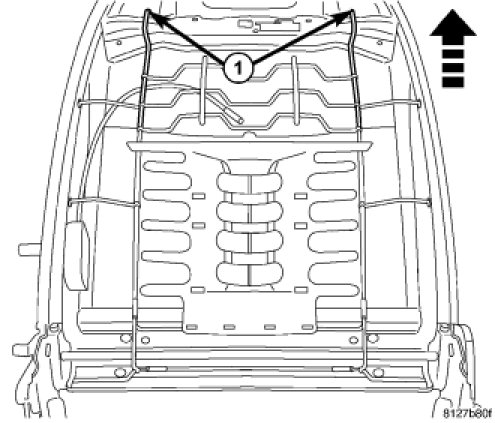

3. Place lumbar mat onto seat back frame and insert the upper support wires (1) into the frame.

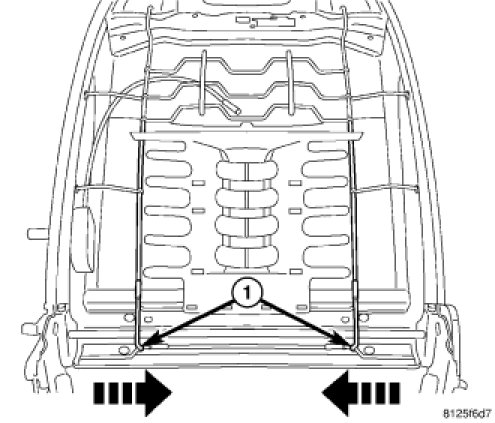

4. Squeeze the lower support wires (1) together and insert into the lower frame.

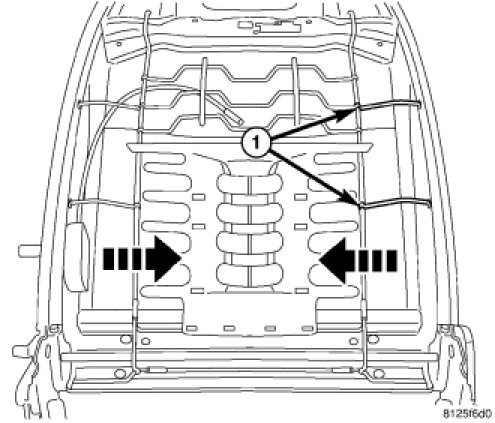

5. Squeeze the side support wires together and insert them into the sides of the seat back frame.
6. Install the seat back cushion/cover. Seat Back Cushion / Cover - Installation
