2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Removal
REMOVAL
Inboard Latch

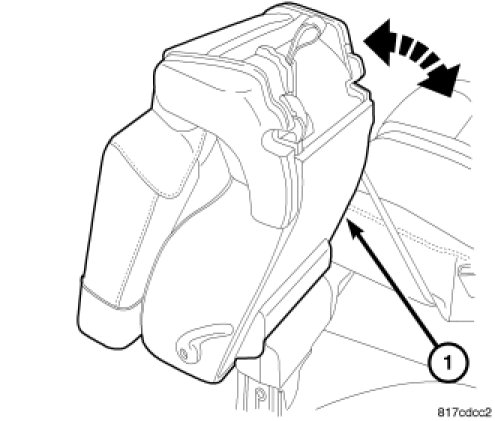

1. Tumble the seat (4) forward.

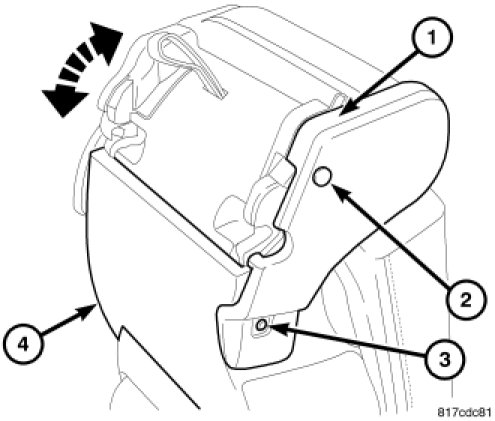

2. Remove the screw (3) and push pin fastener (2) and remove the trim cover (1).

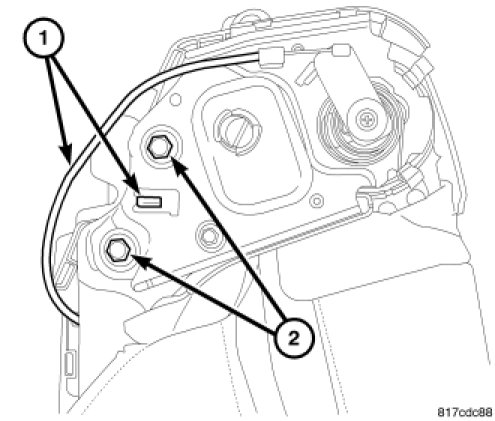

3. Disconnect the cable (1) from the tab and position aside.
4. Remove the two bolts (2).

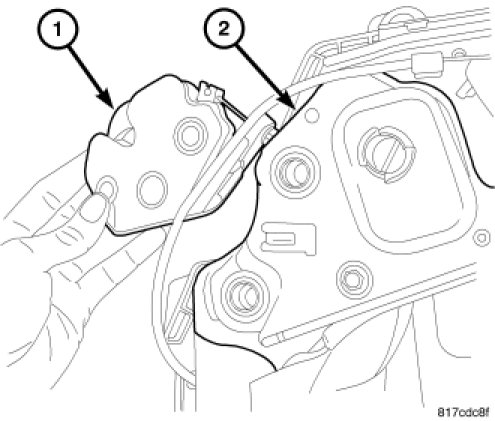

5. Remove the latch (1) from the seat frame (2).

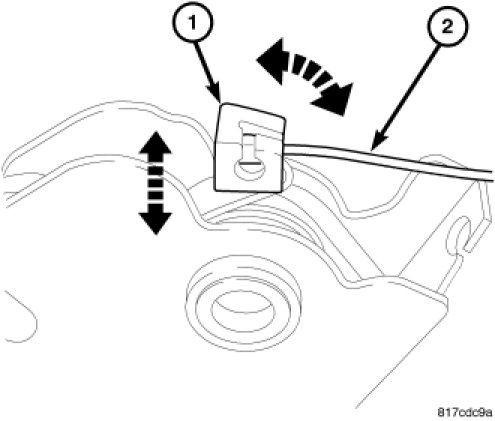

6. Separate the cable housing (2) from the latch (1).

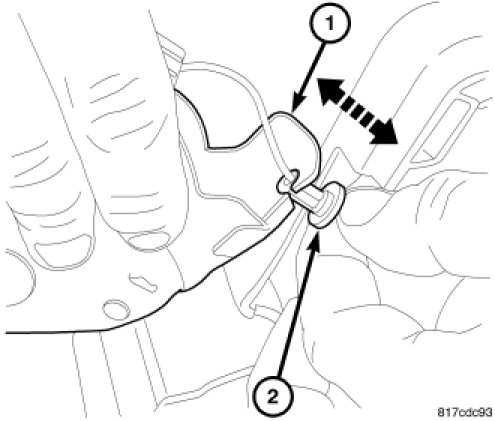

7. Disconnect the cable (2) from the latch (1).
Outboard Latch
1. Tumble the seat (1) forward.

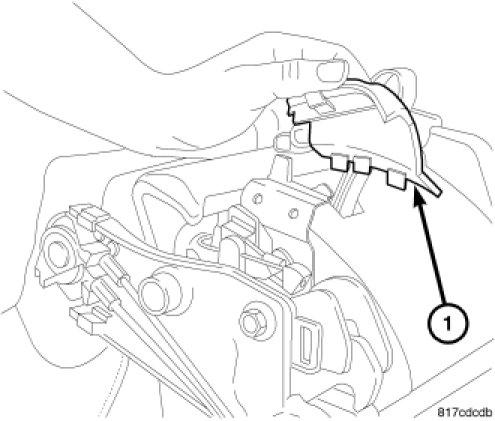

2. Using a trim stick C-4755 or equivalent, remove the trim cover (1).

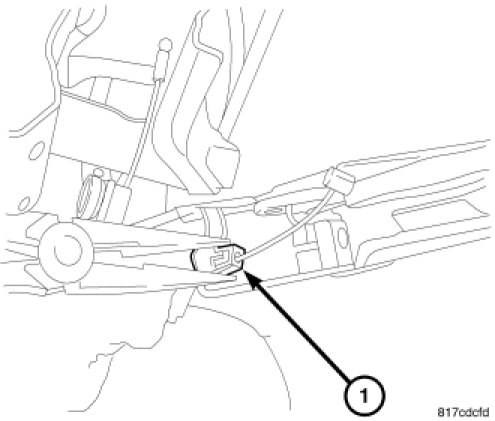

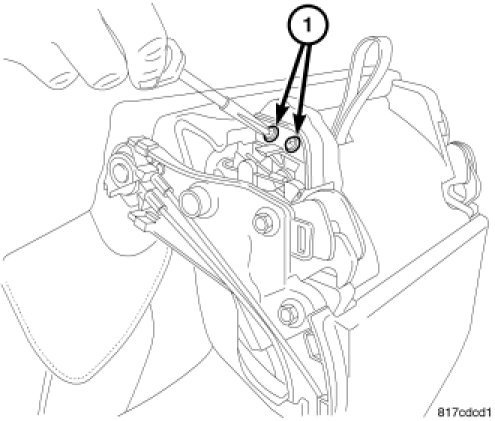

3. Remove the two screws (1).

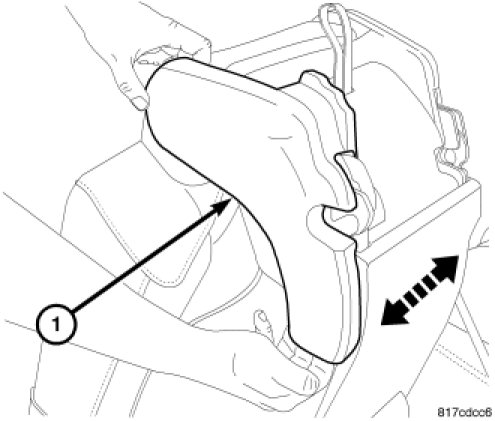

4. Remove the trim cover (1).

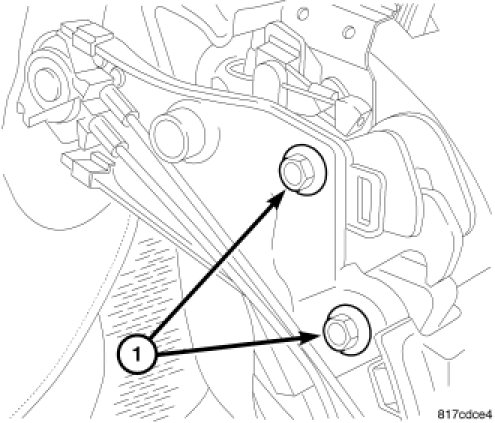

5. Remove the bolts (1).
6. Remove the latch (1) from the seat frame (2).

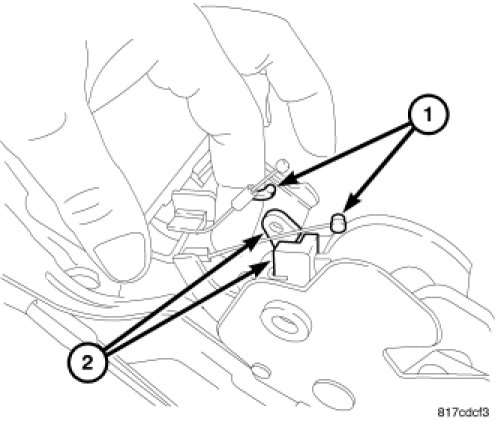

7. Disconnect the cable ends (1) from the latch (2).
8. Separate the cable housings (1) from the latch.
