2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Crossmember - Installation
INSTALLATION

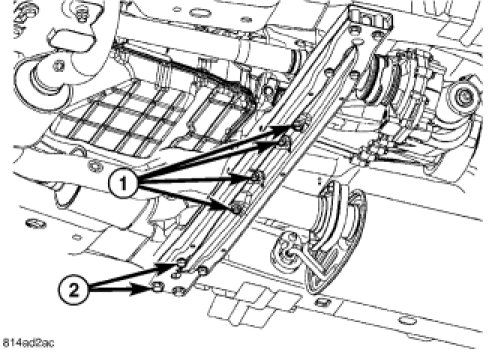

1. Install the crossmember and install the eight crossmember bolts (2).
2. Tighten the crossmember bolts to 54 Nm (40 ft. lbs.).
3. Remove the lifting device.
4. Install the four transmission mount bolts (1) and tighten to 54 Nm (40 ft. lbs.).
5. Install the skid plate. Transfer Case Skid Plate - Installation
