2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Removal
REMOVAL
CAUTION: Front Control Module (FCM) damage may occur if the module case comes in contact with the battery while still connected. Always disconnect the battery negative cable prior to removal of the FCM.
1. Disconnect and isolate the battery negative cable.
2. Remove the Integrated Power Module (IPM) from the engine compartment, Removal.

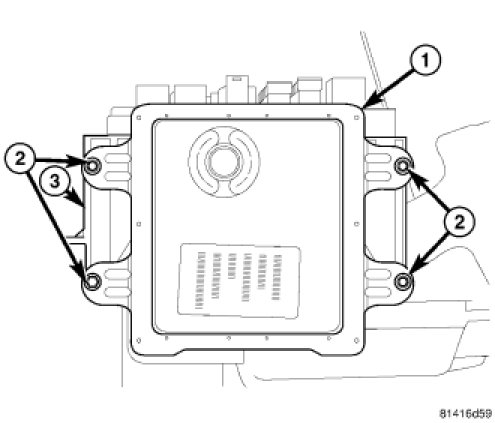

3. Remove the four fasteners (2) securing the Front Control Module (FCM) (1) to the IPM (3).
4. Separate the FCM from the IPM by pulling the two straight away from each other to disengage the electrical connector.
