2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Removal
ADJUSTABLE PEDALS
NOTE: If possible put the pedals in the full forward position.
1. Disconnect the negative battery cable.
2. Remove the power brake booster Power Brake Booster - Removal.

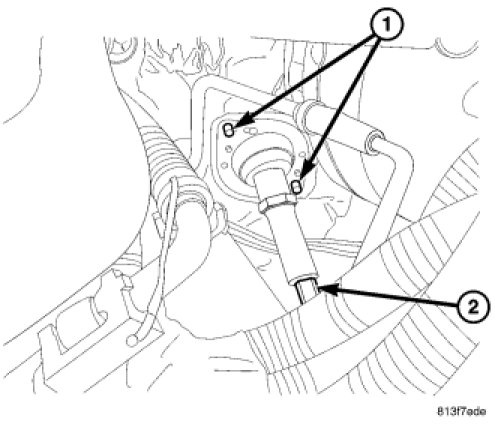

3. Remove the 2 intermediate shaft bearing nuts (1).
4. Remove the lower steering shaft pinch bolt.
5. Remove the lower steering shaft off the column.
6. Lock the steering wheel into place.
7. Disconnect the pedal motor electrical connector.
8. Disconnect the accelerator pedal cable.

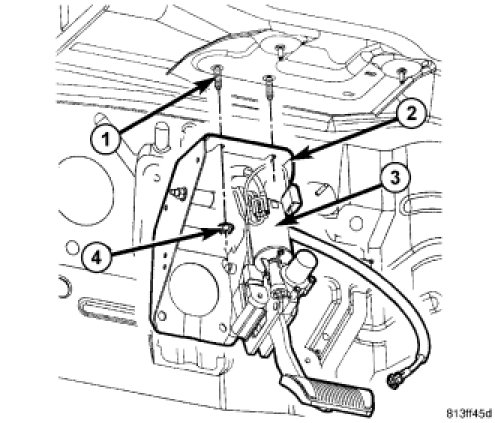

9. Disconnect the 2 upper brake pedal mounting nuts (4).
10. Loosen the brake pedal sled (1) upper nuts

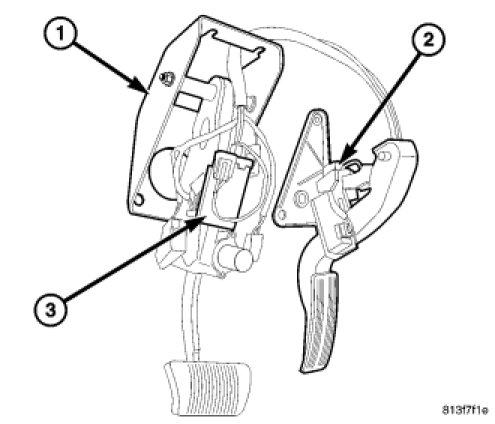

11. Remove the brake pedal/accelerator pedal assembly (2&3) from the vehicle.
