2008 Jeep Commander 2WD V8-4.7LFACTORY OEM SERVICE PROCEDURE
Fuel Tank - Installation
INSTALLATION
1. If fuel tank is to be replaced, install fuel pump module into tank Fuel Pump Module - Installation.
2. Position fuel tank to hydraulic jack.
3. Raise tank until positioned to body.

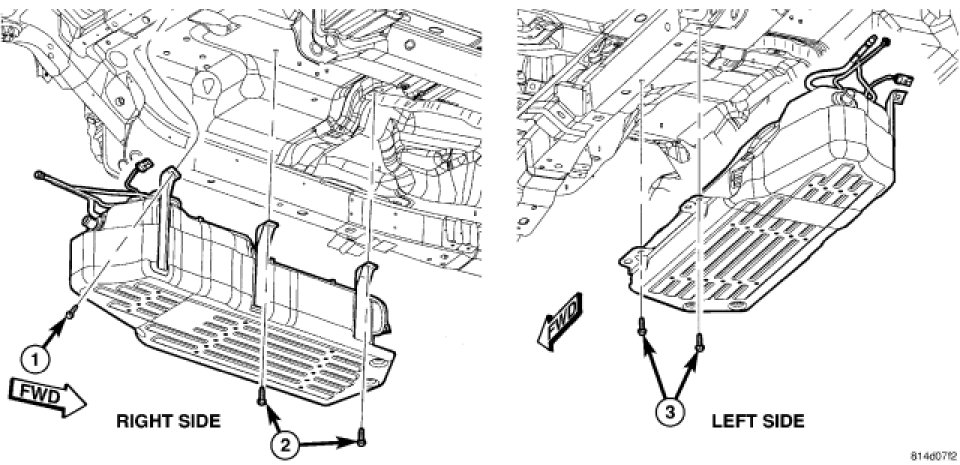

4. Install and tighten bolts (1) (2) and (3) Fuel Delivery Torque Specifications.
5. Remove hydraulic jack.

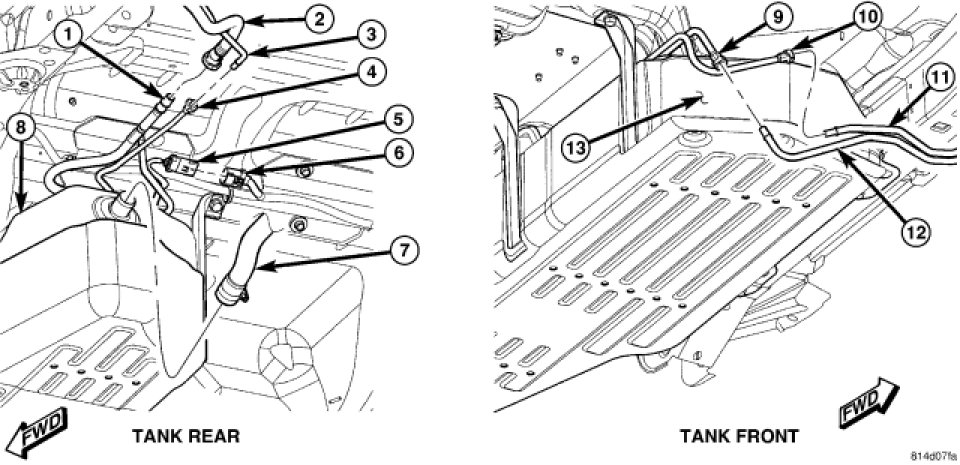

6. Connect EVAP, ORVR, fuel and NVLD lines at front and rear of tank.
7. Connect fuel pump module electrical jumper connector (5) to body connector (6).
8. Connect rubber fill hose (3) to tank fitting (7) and tighten clamp (9).
9. Lower vehicle.
10. Fill fuel tank with fuel.
11. Start engine and check for fuel leaks near top of module.
