2008 Jeep Commander 2WD V8-4.7L
Sensor-Wheel Speed-ABS-Left Front
2008 Jeep Commander 2WD V8-4.7LSECTION Sensor-Wheel Speed-ABS-Left Front
Component ID: 539

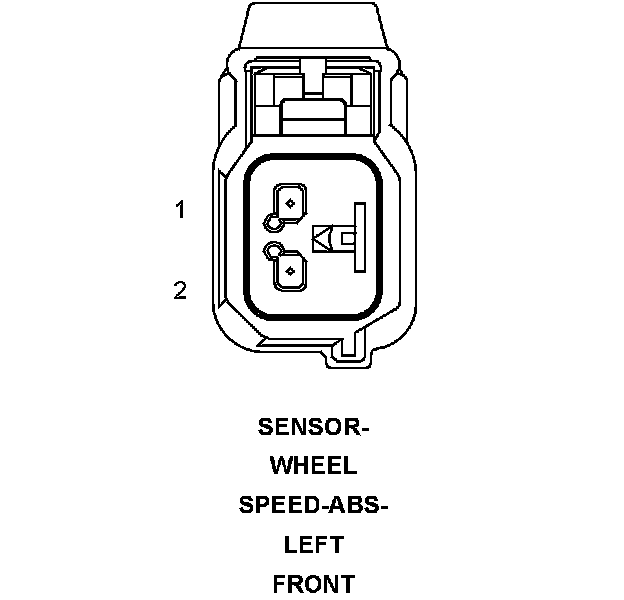

Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color :
# of pins : 2
Pin Circuit Description
1 B9 20DG/LG LEFT FRONT WHEEL SPEED SENSOR SUPPLY
2 B8 20DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
Component Location - 1
