2008 Jeep Commander 2WD V8-4.7LFACTORY OEM SERVICE PROCEDURE
Installation
INSTALLATION
CAUTION: The Heated Seat Module mounting tabs can be damaged during module removal and installation. Use care to properly align tabs to prevent binding that could result in tab breakage.

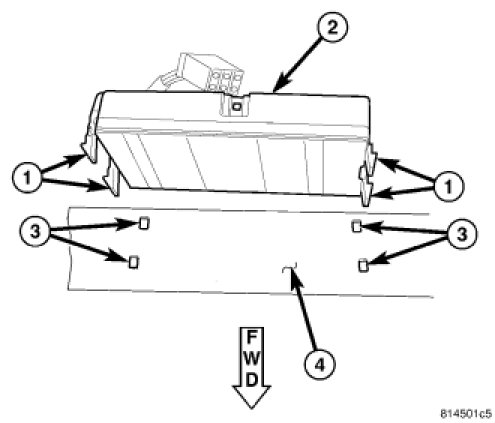

1. Install the heated seat module (2) into the vehicle.
2. Position the retaining clips (1) with the retaining holes (3) in the mounting bracket (4). Firmly apply even pressure to the module (2) until all four retaining clips (1) snap into place.

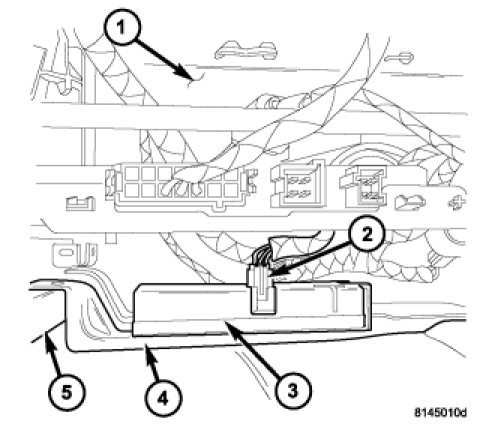

3. Connect the wire harness connector (2) to the heated seat module (3).
4. Connect the battery negative cable.
5. Check for proper heated seat system operation.
