2008 Jeep Commander 2WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Front Control
INSTALLATION

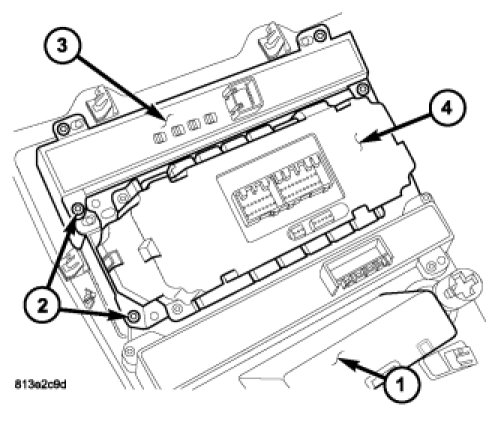

1. Position the A/C-heater control (4) and the electronic vehicle information center (EVIC) control (3) into the instrument panel center bezel (1).
2. Install the screws (2) that secure the A/C-heater control and the EVIC control to the center bezel. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the center bezel onto the instrument panel Instrument Panel Center Bezel - Installation.
4. Reconnect the negative battery cable.
5. Initiate the Actuator Calibration function using a scan tool. Refer to HVAC System Test. HVAC System Test
