2008 Jeep Commander 2WD V6-3.7L
Motor-Window-Driver Express

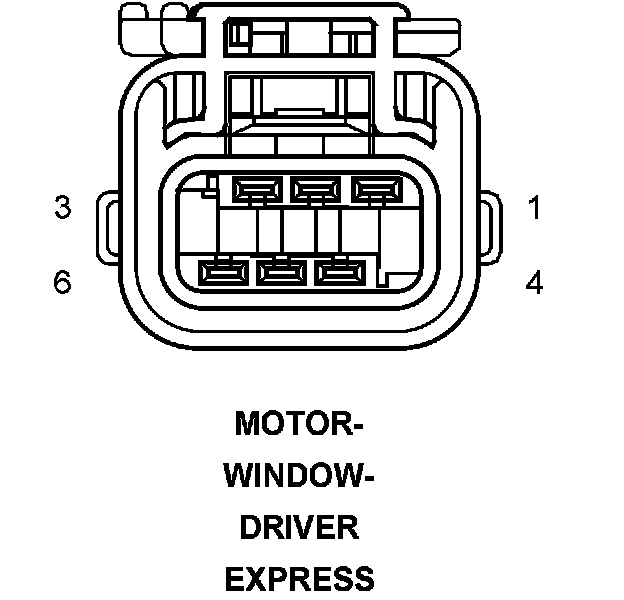

2008 Jeep Commander 2WD V6-3.7LSECTION Motor-Window-Driver Express
Component ID: 250
Component : MOTOR-WINDOW-DRIVER EXPRESS
Connector:
Name : MOTOR-WINDOW-DRIVER EXPRESS
Color :
# of pins : 6
Pin Circuit Description
1 Q311 16OR/LB DRIVER WINDOW EXPRESS UP DRIVER
2 Q303 20WT/OR DRIVER WINDOW HALL SENSOR B SIGNAL
3 Q321 16OR/DB DRIVER WINDOW EXPRESS DOWN DRIVER
4 Q991 20BK/OR DRIVER WINDOW HALL SENSOR RETURN
5 Q305 20OR DRIVER WINDOW HALL SENSOR SUPPLY
6 Q301 20OR/WT DRIVER WINDOW HALL SENSOR A SIGNAL
Component Location - 65
