2008 Jeep Commander 2WD V6-3.7L
Brake Fluid Level Sensor/Switch
2008 Jeep Commander 2WD V6-3.7LSECTION Brake Fluid Level Sensor/Switch
Component ID: 484

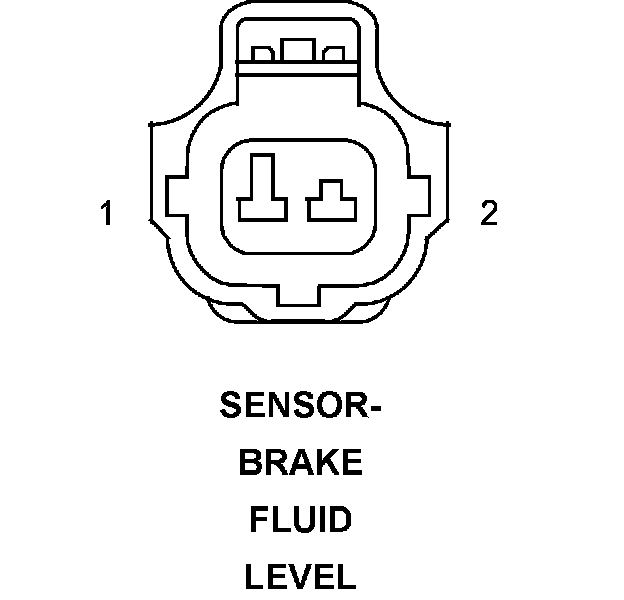

Component : SENSOR-BRAKE FLUID LEVEL
Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color :
# of pins : 2
Pin Circuit Description
1 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
2 Z387 20BK GROUND
Component Location - 1
