2007 Jeep Liberty Limited, RWDFACTORY OEM SERVICE PROCEDURE
Ignition Systems: Cylinder-Key/Lock: Installation: Cylinder-Key

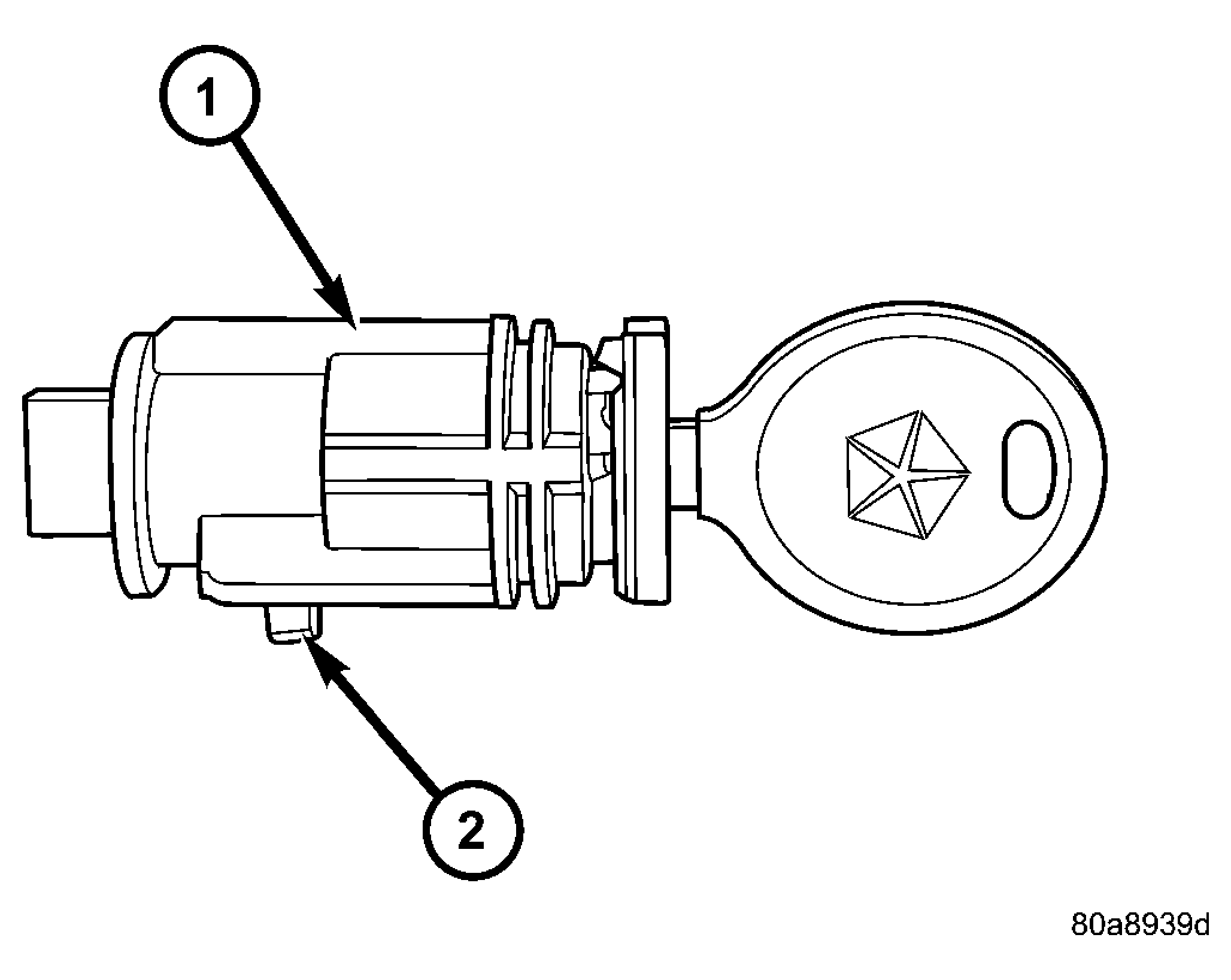

| 1 - KEY CYLINDER |
| 2 - RELEASE TANG |
The ignition key must be in the key cylinder (1) for cylinder installation. See Fig 1.
- Install the key cylinder (1) into the housing using care to align the end of the key cylinder with the ignition switch. See Fig 1.
- Push the key cylinder (1) in until it clicks. See Fig 1.
- Rotate the key to the insert position.
- install the halo ring around the key cylinder housing.
- Install the R.K.E. module.
- Install the lower shroud cover.
