Fuel Pump Module

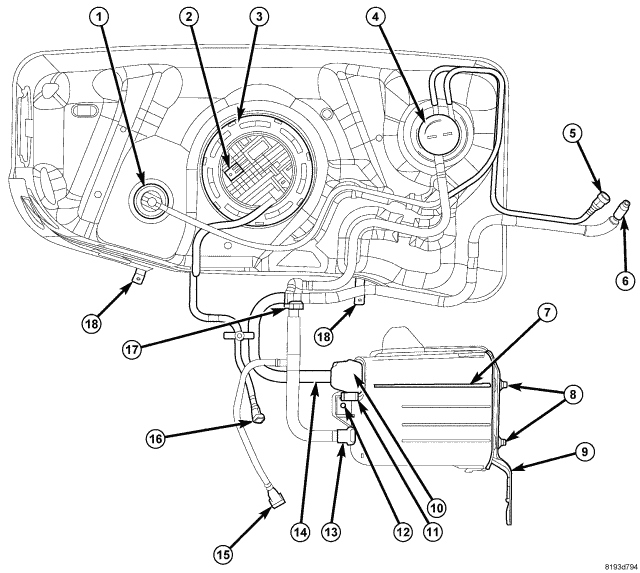

The fuel pump module assembly (2) is located on top of the fuel tank. The complete assembly contains the following components:
- A fuel pressure regulator
- A built-in primary fuel filter
- A separate fuel pick-up, or inlet filter
- An electric fuel pump
- A lockring (3) to retain pump module to tank
- A soft gasket between tank flange and module
- A fuel gauge sending unit (fuel level sensor)
- A fuel line connection
If the electrical fuel pump, primary inlet filter or fuel pressure regulator require service, the fuel pump module must be replaced.
