2007 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Transmission Control Module
- The TCM (2) is located between the brake pedal bracket (1) and the left kick panel (3).

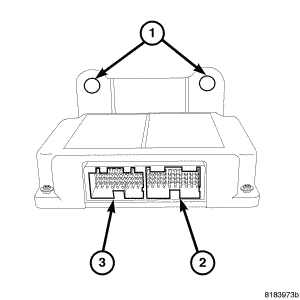

- Unplug the two electrical connectors (2) at the TCM.
- Remove the two nuts (1) that hold the TCM to the bulkhead.
- Remove the TCM.
