2007 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM)

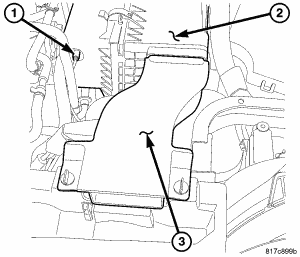

- Remove air inlet duct (3).
- Disconnect negative battery cable.
- Disconnect vacuum hose (1).
- Remove air cleaner housing assembly (2). Refer to appropriate ENGINE - SERVICE INFORMATION article.
- Disconnect both ECM (2) electrical connectors by pulling tabs at ends of connectors.
- Remove ECM bracket retaining bolts and remove ECM (2) and bracket assembly from vehicle.
- Remove ECM to bracket retaining nuts and remove ECM from bracket.
