2007 Jeep Compass 2WD L4-2.4L VIN WFACTORY OEM SERVICE PROCEDURE
System Specifications

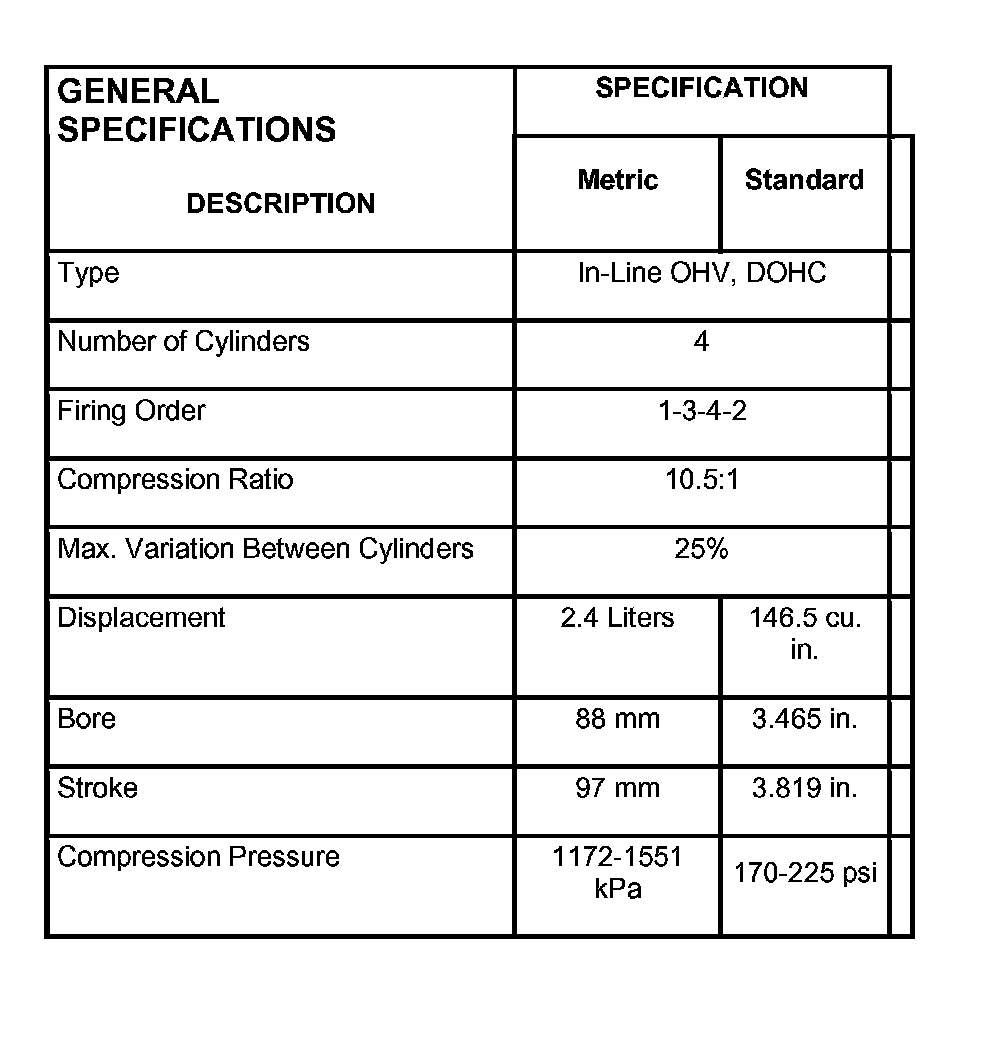

General Specifications:
General Specifications

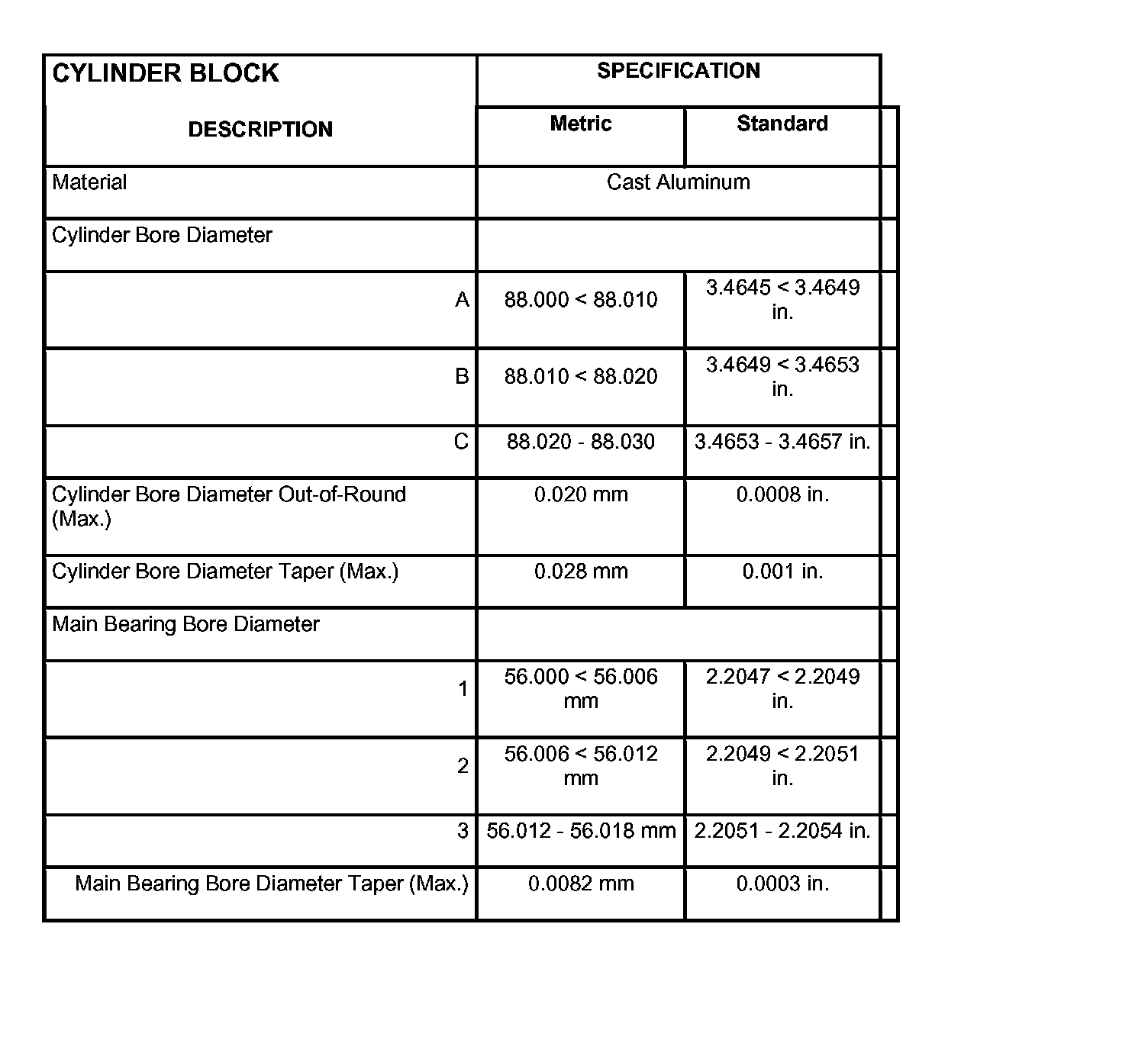

Cylinder Block:
Cylinder Block

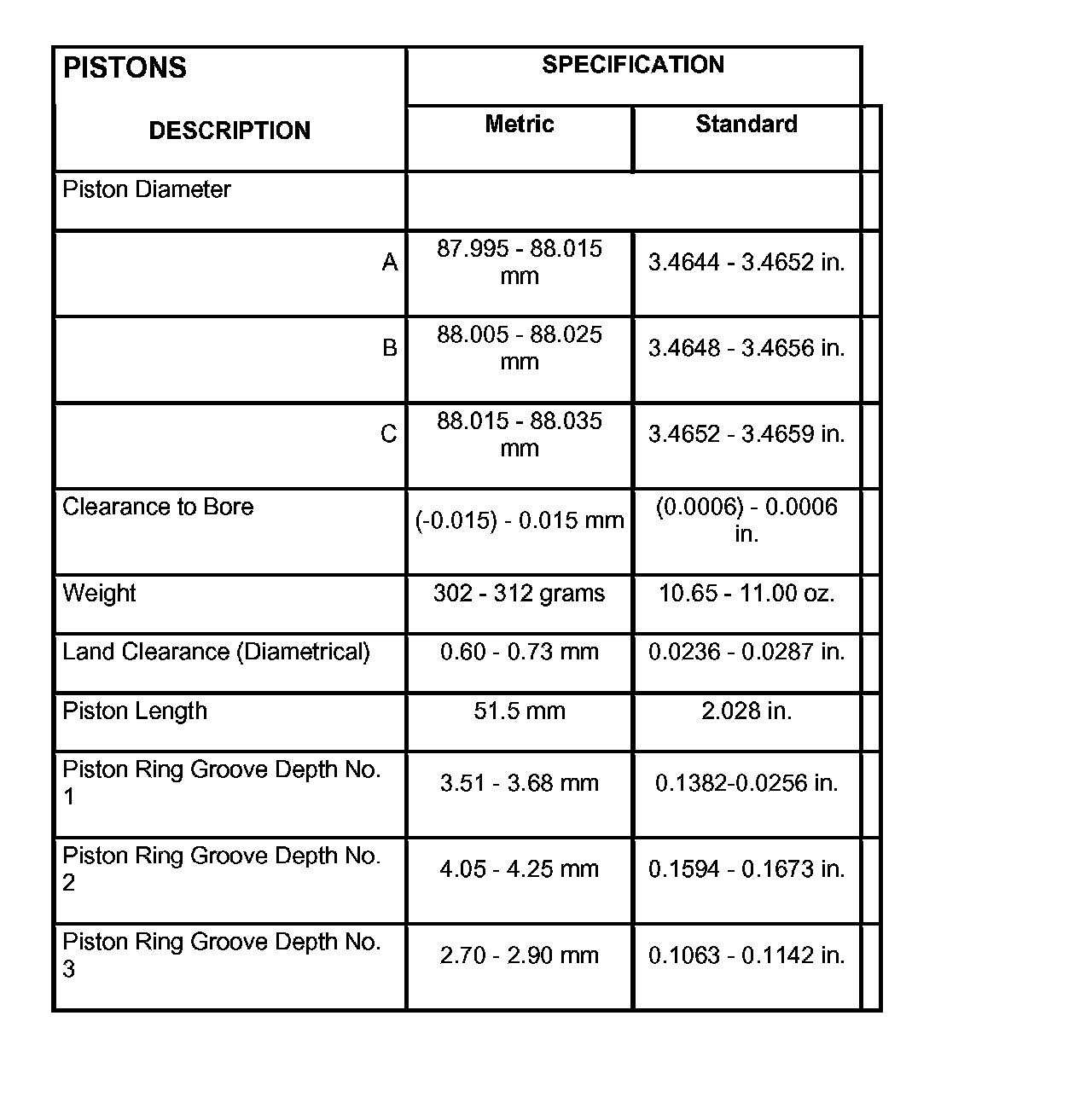

Pistons:
Pistons

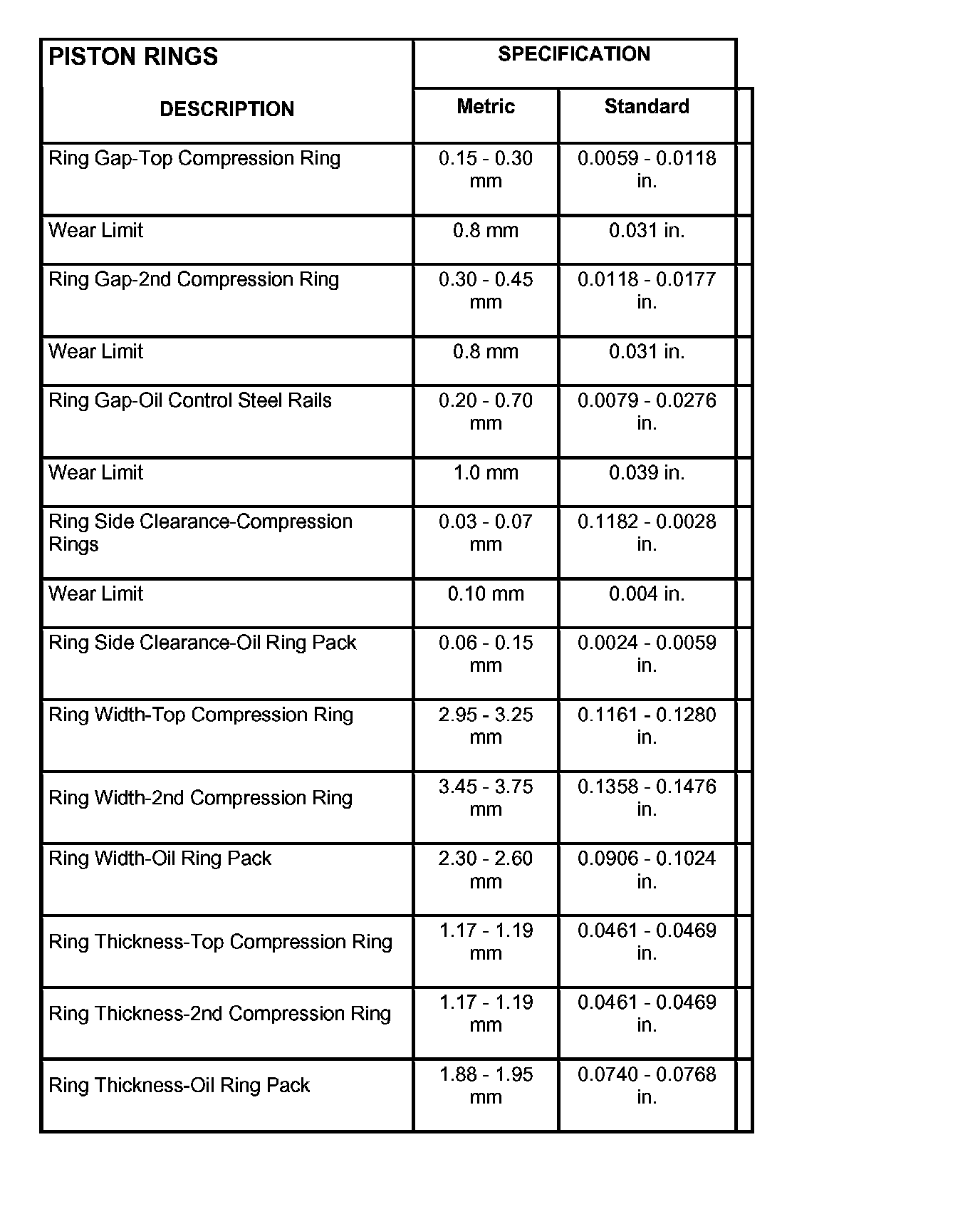

Piston Rings:
Piston Rings

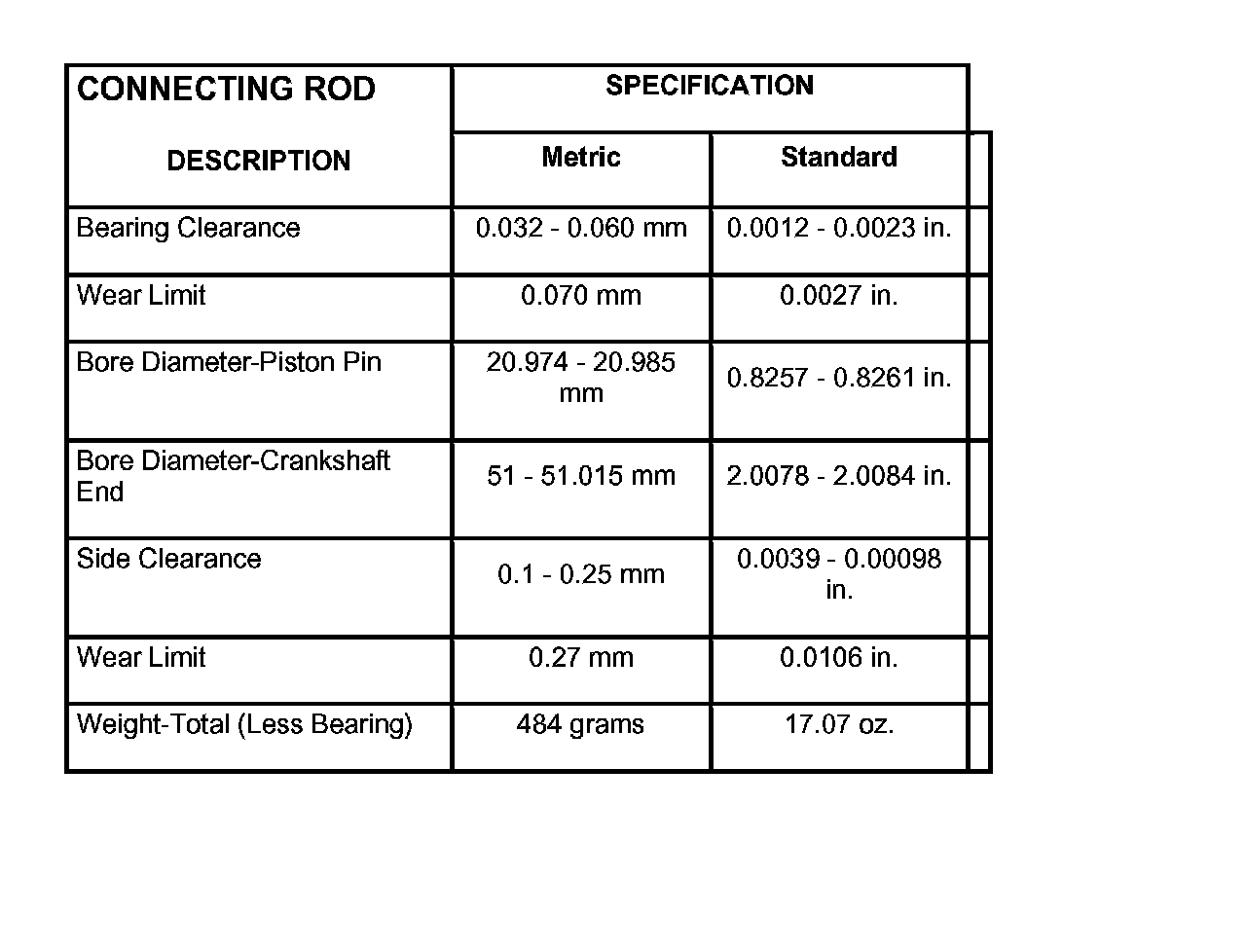

Connecting Rod:
Connecting Rod

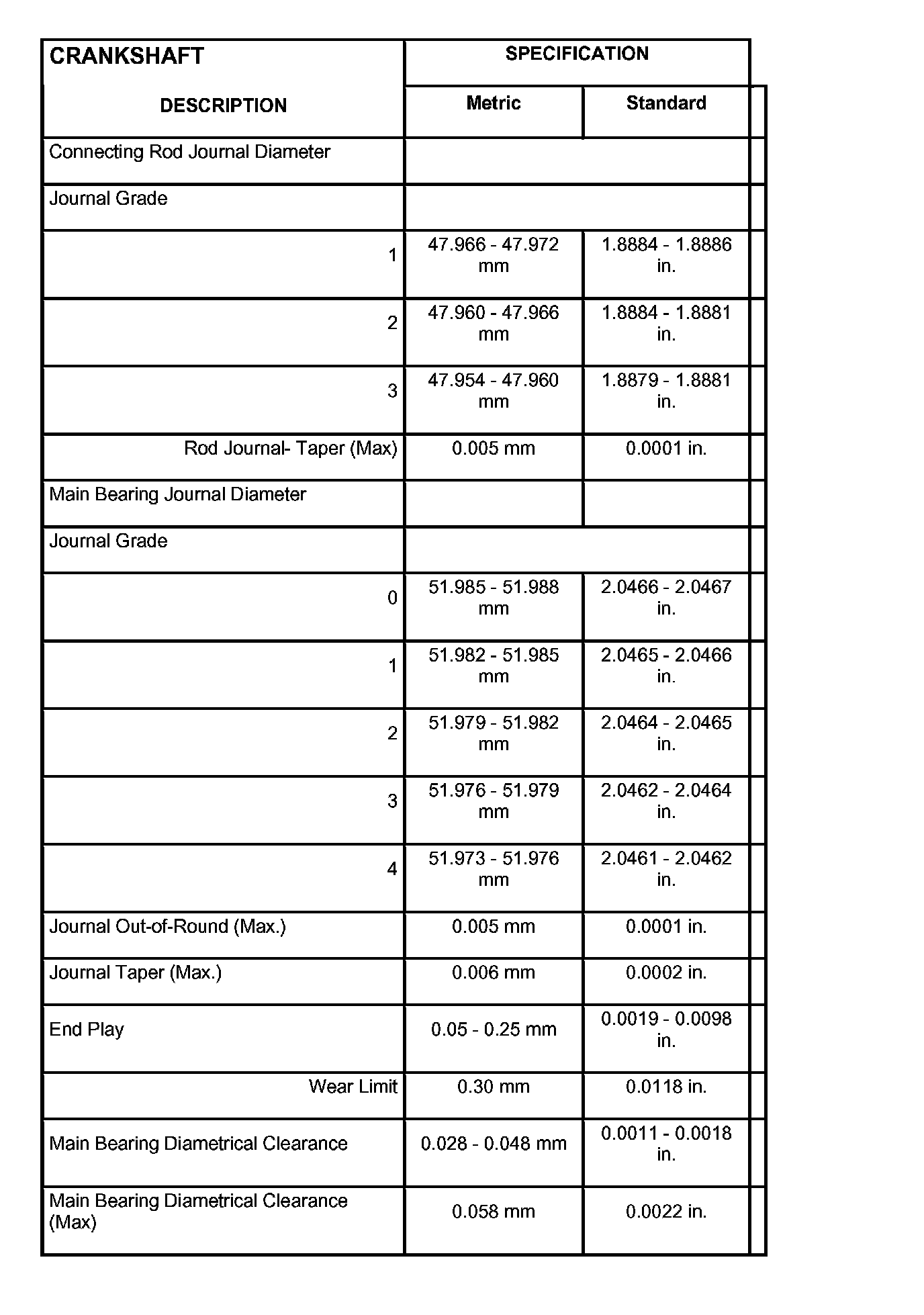

Crankshaft:
Crankshaft
Connecting Rod Cap-Bolts 20 Nm + 90οΏ½ (15 ft. lbs. + 90οΏ½)

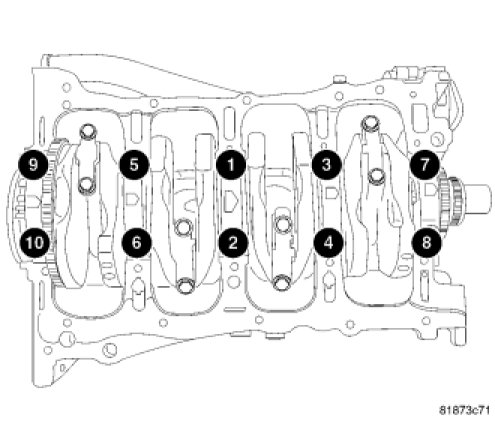

Crankshaft Main Bearing Cap-Bolts 27 Nm + 45οΏ½ (20 ft. lbs. + 45οΏ½)
Crankshaft Damper-Bolt 210 Nm (155 ft. lbs.)
Cylinder Block Surface Variation
Deck surface must be within service limit of 0.050 mm (0.002 in.).
