2007 Jeep Compass 2WD L4-2.4L VIN WFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Locations
Component ID: 308
Component : SENSOR-KNOCK

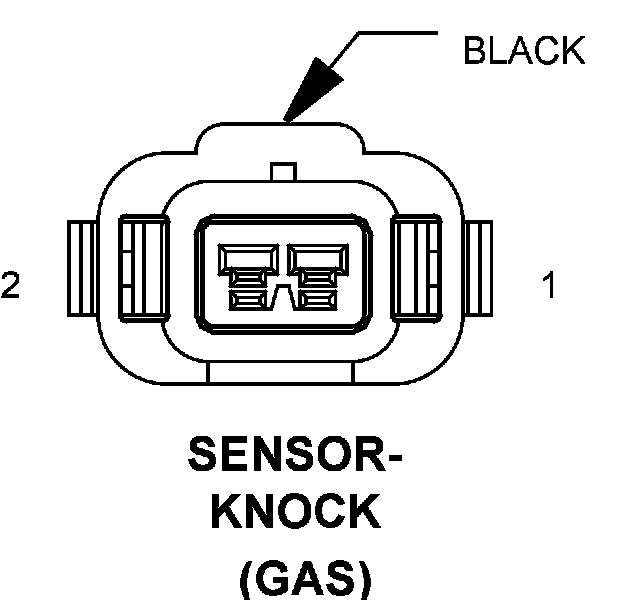

Connector:
Name : SENSOR-KNOCK
Color : BLACK
# of pins : 2
Qualifier : (GAS)
Pin Description Circuit
1 KS SIGNAL K42 20LG/DB
2 KS RETURN K942 20WT/BR
Component Location - 14
Component Location - 15
