2007 Jeep Compass 2WD L4-2.4L VIN WFACTORY OEM SERVICE PROCEDURE
Data Link Connector: Locations
Component ID: 54
Component : DATA LINK CONNECTOR
Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16

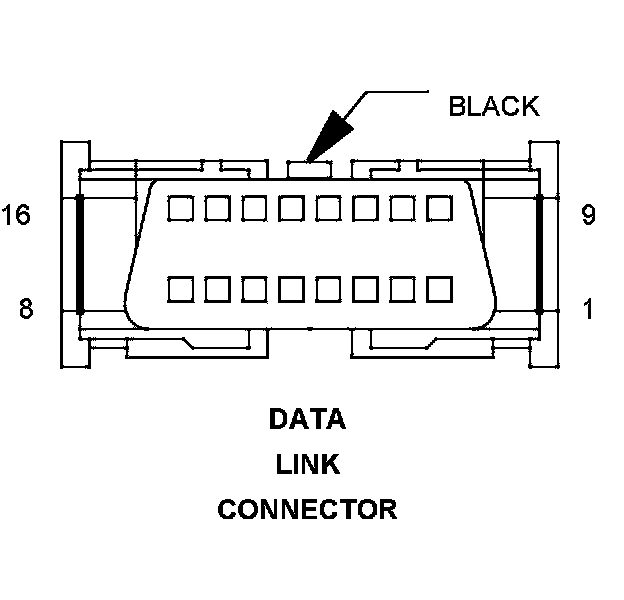

Pin Description Circuit
1 - -
2 - -
3 - -
4 GROUND Z11 20BK/BR
5 GROUND Z11 20BK/BR
6 DIAGNOSTIC CAN C (+) D72 20WT/TN
7 SCI TRANSMIT D21 20WT/BR
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 DIAGNOSTIC CAN C (-) D71 20WT/DB
15 - -
16 FUSED B(+) A933 20RD/LG

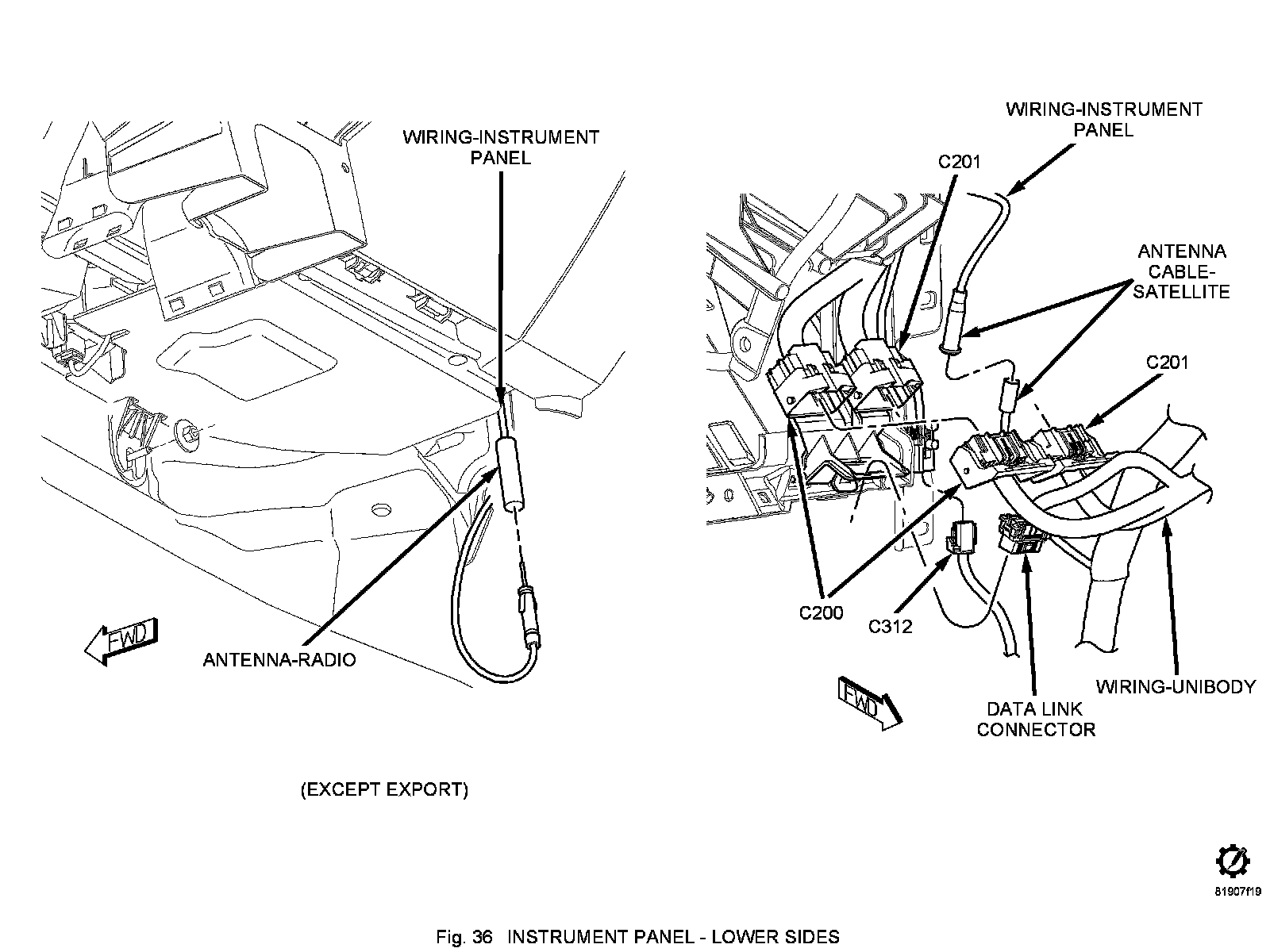

Component Location - 36

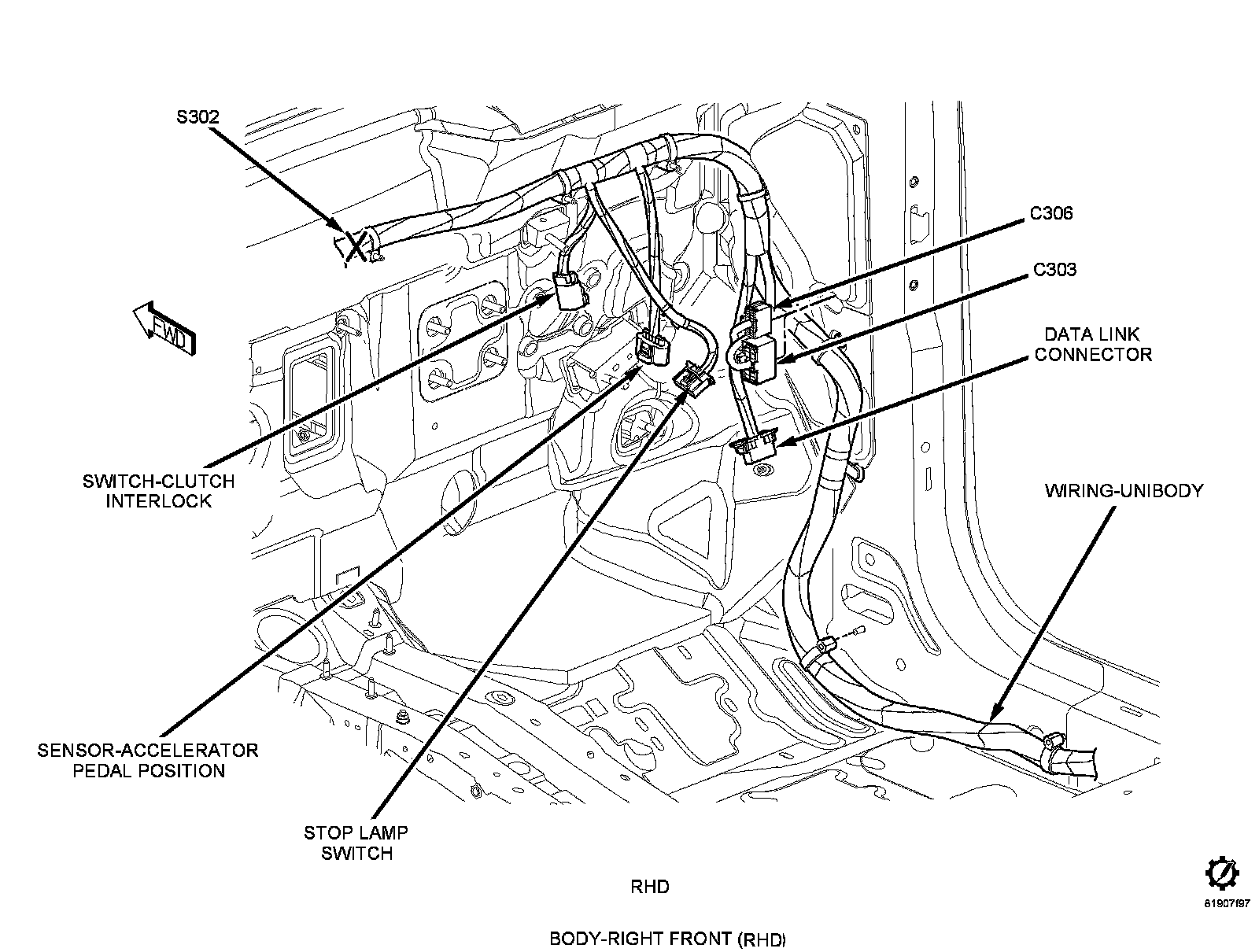

Component Location - 43
Component Location - 46
