2007 Jeep Compass 2WD L4-2.4L VIN WFACTORY OEM SERVICE PROCEDURE
Voice Activation Module
Component ID: 157
Component : MODULE-HANDS FREE

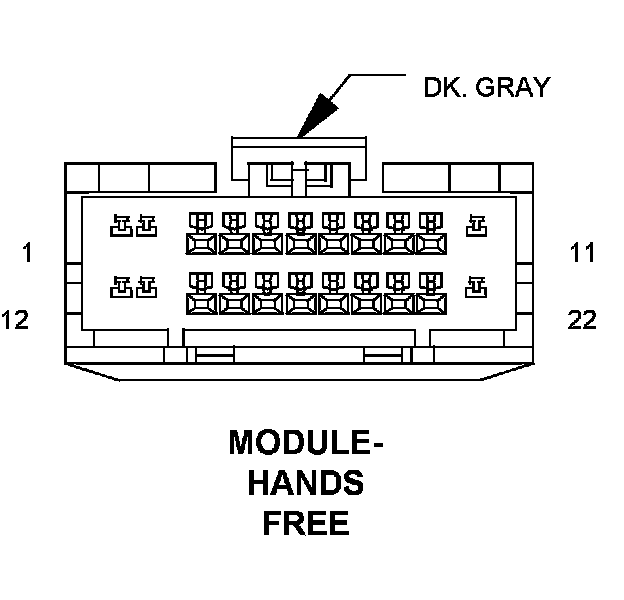

Connector:
Name : MODULE-HANDS FREE
Color : DK. GRAY
# of pins : 22
Pin Description Circuit
1 FUSED B(+) (I.O.D.) A417 18RD/DG
2 - -
3 - -
4 CAN B BUS (-) D54 20WT/PK
5 MICROPHONE 2 IN(+) X722 20LB/DG
6 - -
7 - -
8 LEFT AUDIO OUTPUT X703 22DG/OR
9 RIGHT AUDIO OUTPUT X704 22DG/PK
10 COMMON AUDIO OUTPUT X795 22DG/BK
11 - -
12 - -
13 - -
14 CAN B BUS (+) D55 20WT/OR
15 VOICE RECOGNITION/PHONE SWITCH SIGNAL X730 20GY/YL
16 MICROPHONE 1 IN(+) X712 20DG/LB
17 MICROPHONE IN(-) X792 20LB/TN
18 - -
19 - -
20 MICROPHONE FEED X793 20DG/YL
21 SENSOR GROUND X835 20OR/BK
22 GROUND Z937 18BK/YL
Component Location - 24
