2007 Jeep Compass 2WD L4-2.4L VIN WFACTORY OEM SERVICE PROCEDURE

Steering Mounted Controls Communication Module




Component ID: 167
Component : MODULE-STEERING CONTROL

Connector:

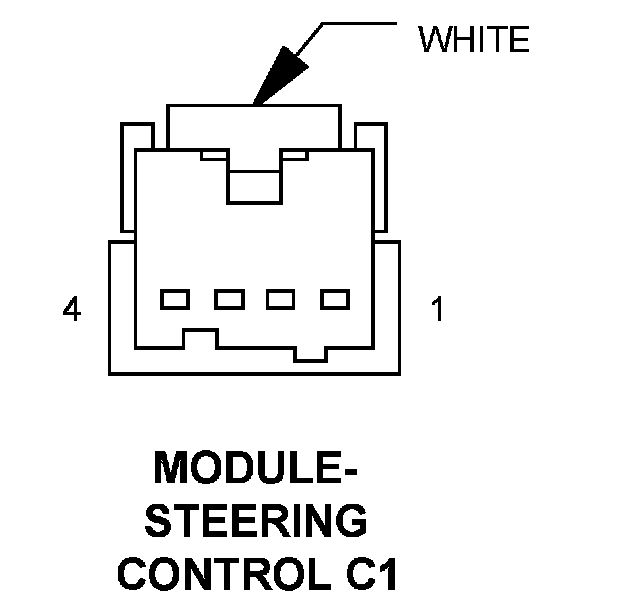

Name : MODULE-STEERING CONTROL C1
Color : WHITE
# of pins : 4
Factory service manual diagram




Pin Description Circuit
1 GROUND Z937 20BK/YL
Pin Description Circuit
1 GROUND Z936 20BK/LB
2 FUSED B(+) (I.O.D.) A411 20RD/LG
3 LIN BUS D506 20WT/DG
4 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/GY

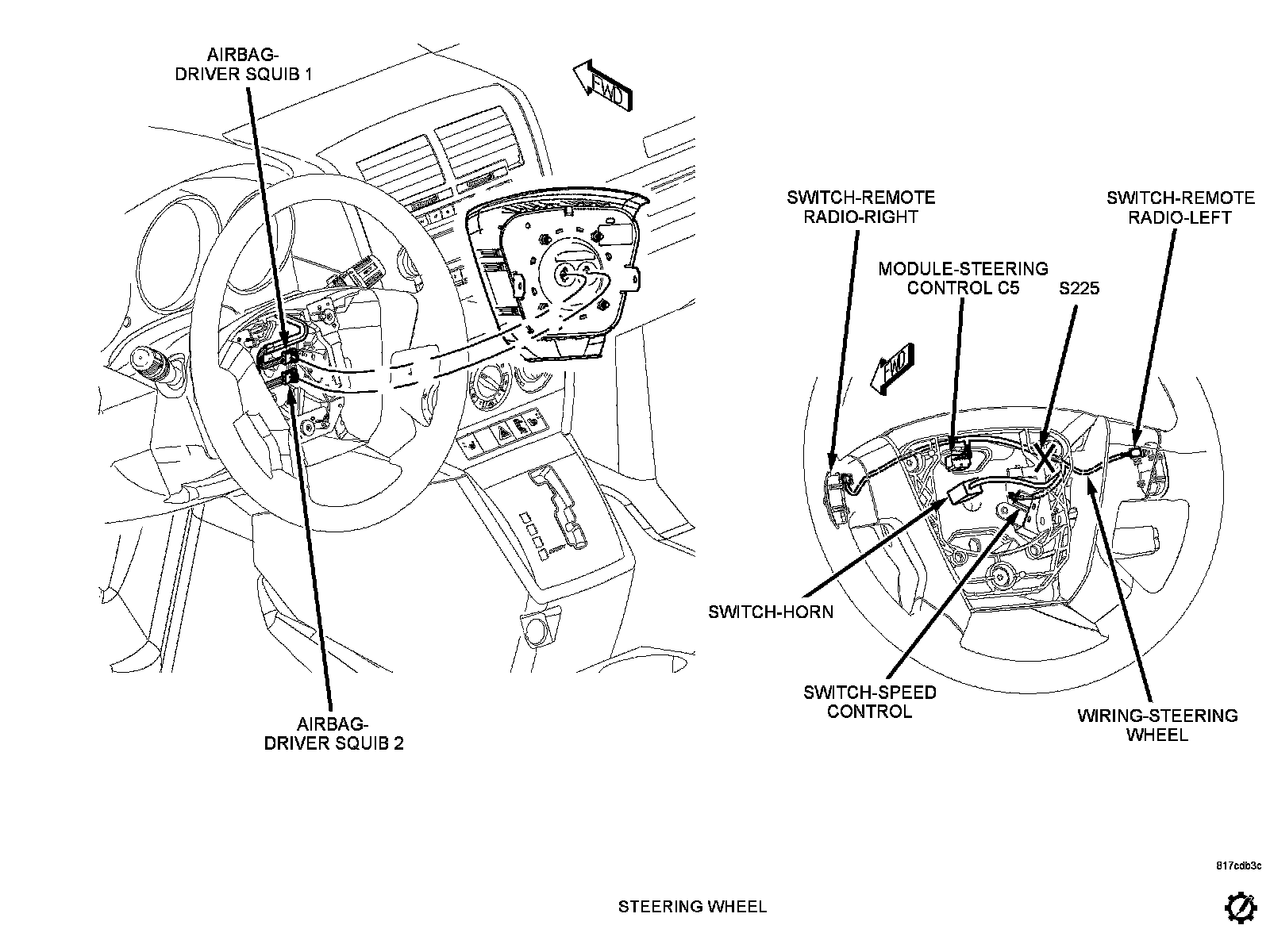

Component Location - 33
Factory service manual diagram

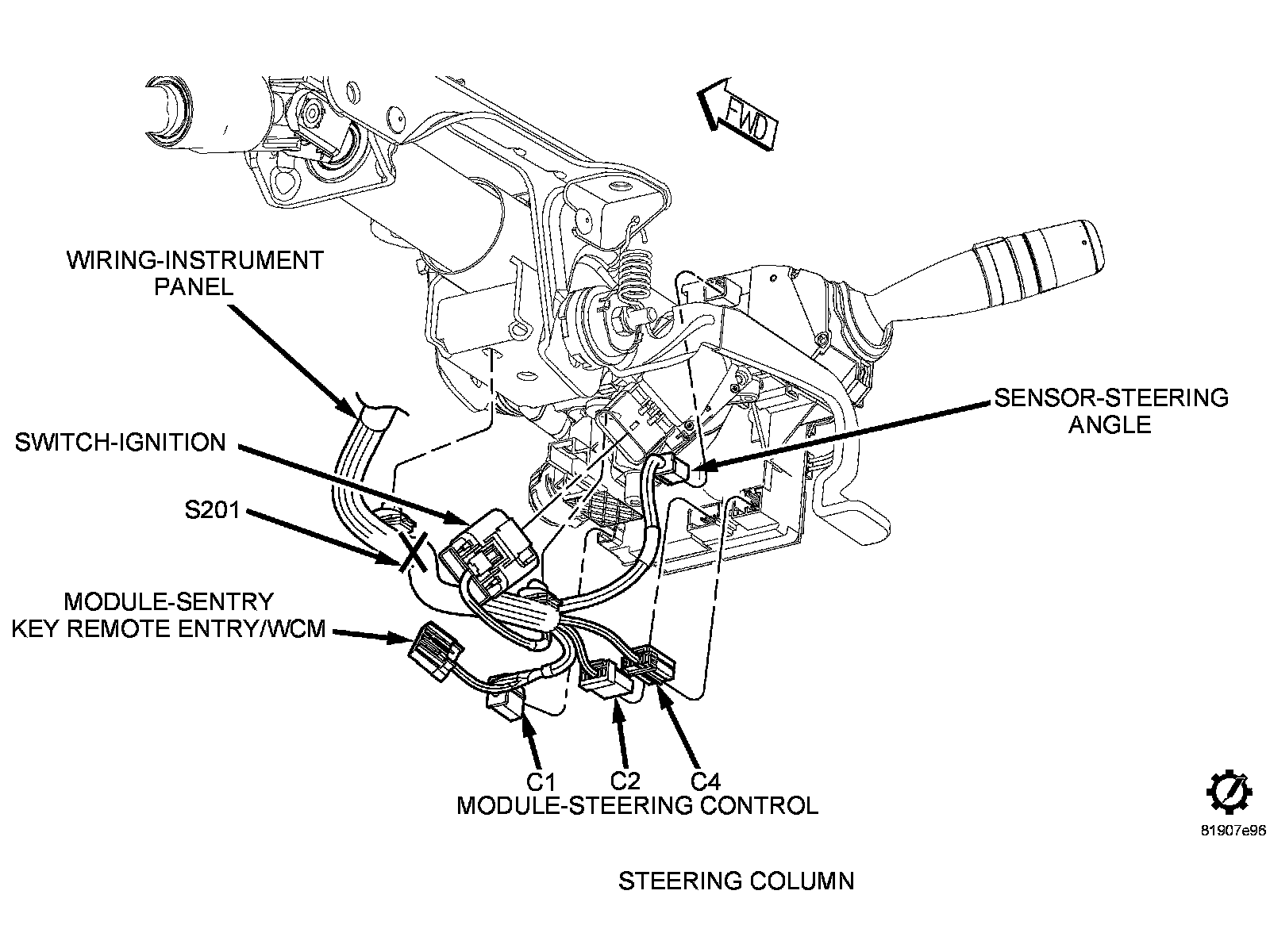

Component Location - 27
Factory service manual diagram

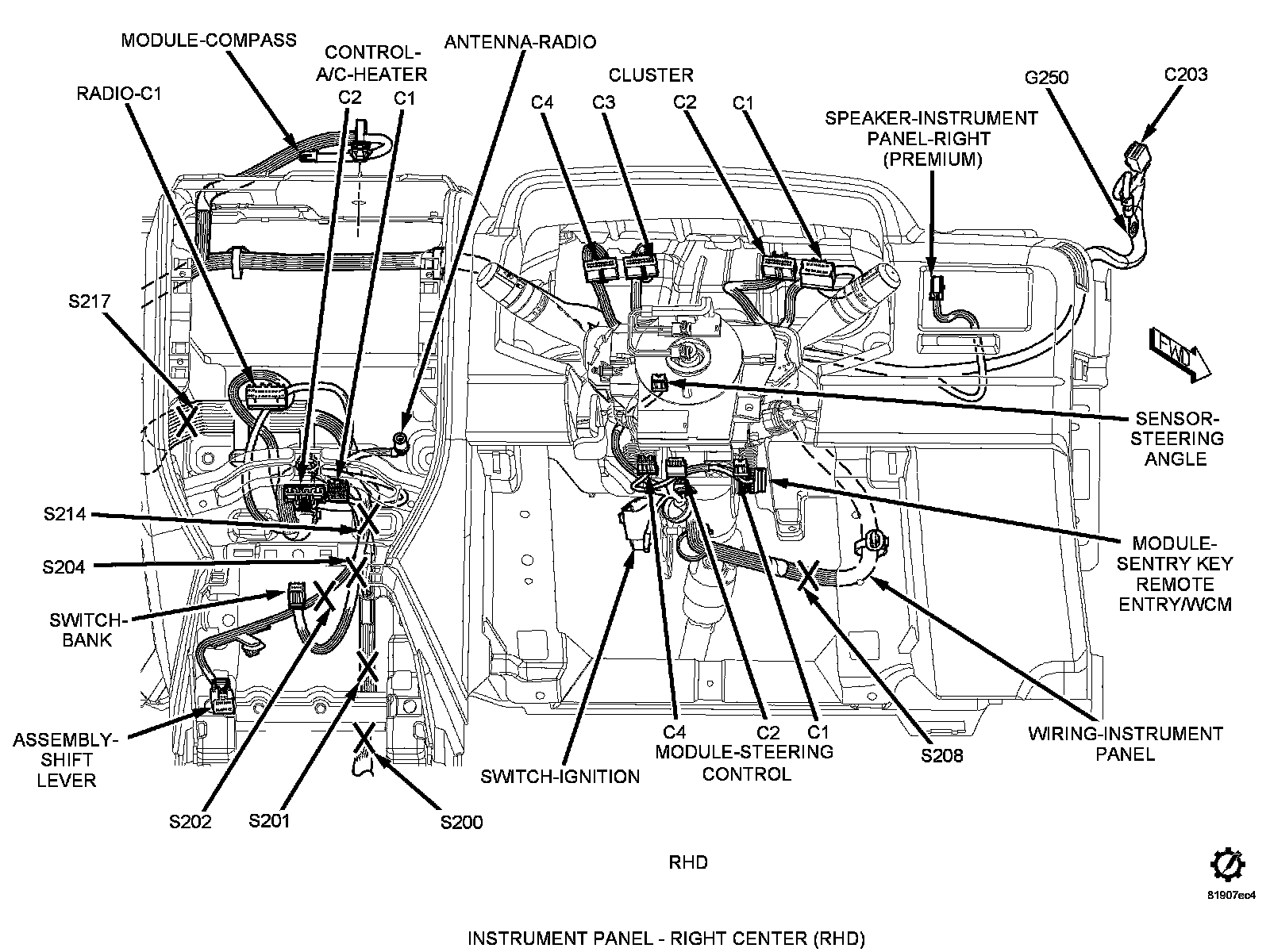

Component Location - 29
Factory service manual diagram

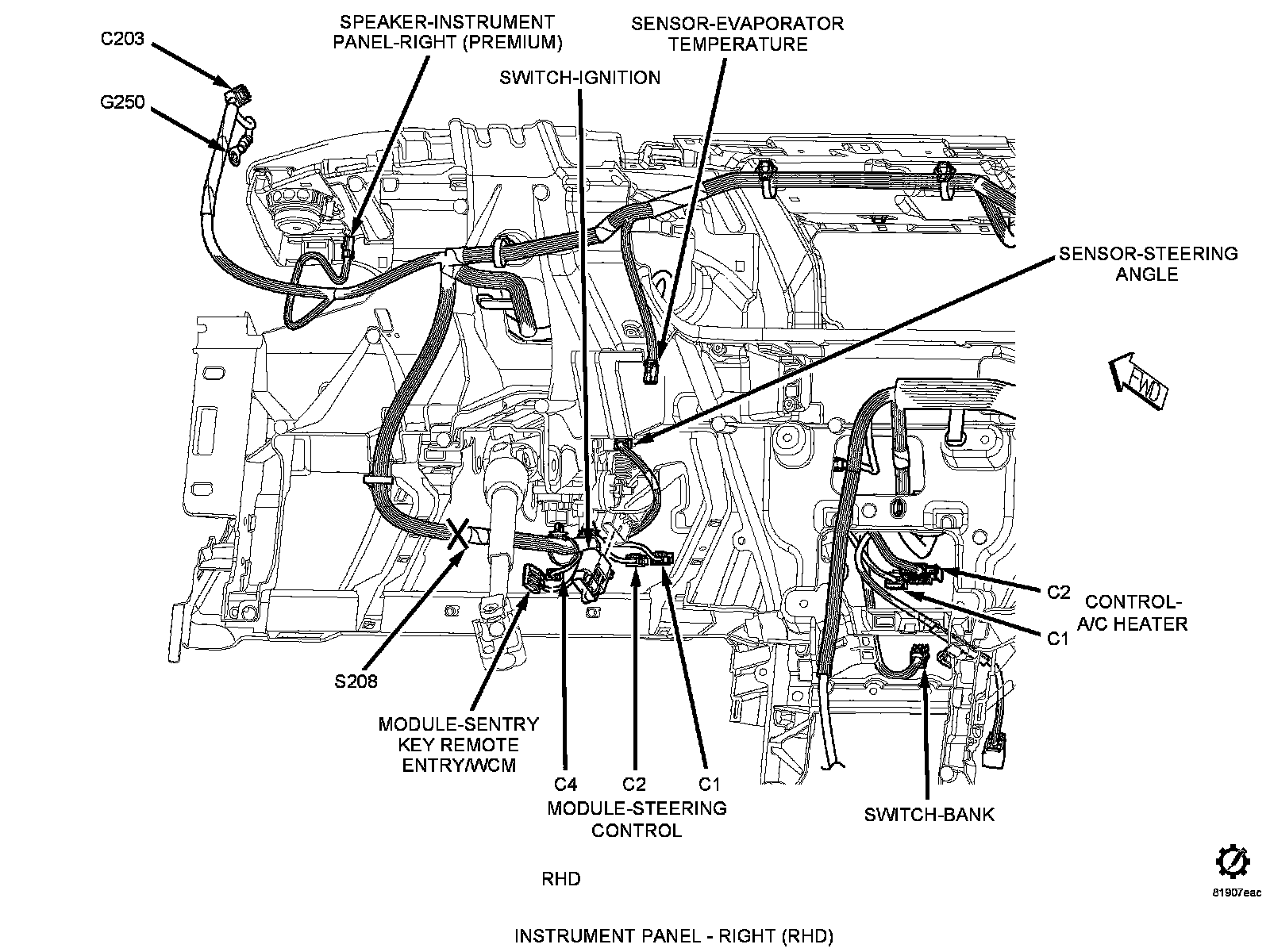

Component Location - 31
Factory service manual diagram






Connector:

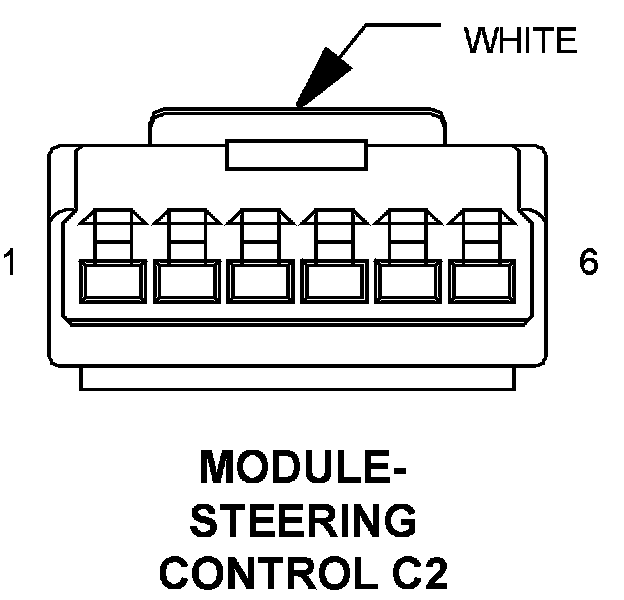

Name : MODULE-STEERING CONTROL C2
Color : WHITE
# of pins : 6
Factory service manual diagram




Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY/WT
2 RADIO CONTROL RETURN Y13 20DG/RD
3 HORN SWITCH SENSE X3 20DG/VT
4 S/C SIGNAL 2 V72 20OR/VT
5 S/C SWITCH GROUND V937 20VT/LG
6 S/C SIGNAL 1 V71 20VT/OR

Component Location - 33
Factory service manual diagram




Component Location - 27
Factory service manual diagram




Component Location - 29
Factory service manual diagram




Component Location - 31
Factory service manual diagram






Connector:

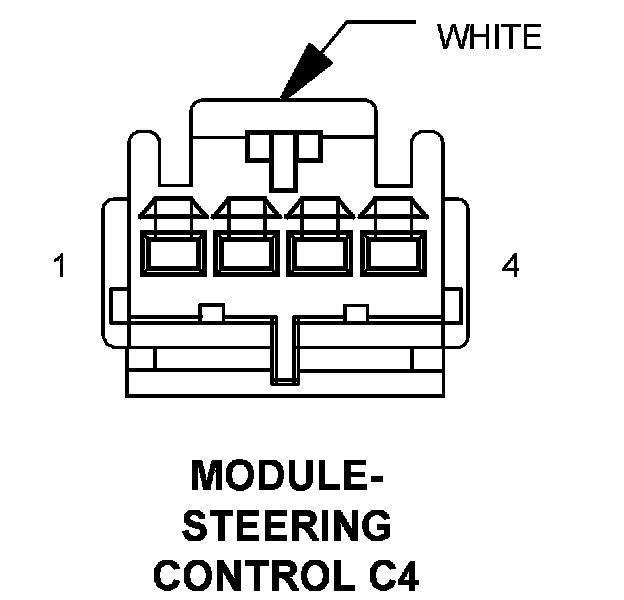

Name : MODULE-STEERING CONTROL C4
Color : WHITE
# of pins : 4
Factory service manual diagram




Pin Description Circuit
1 DRIVER SQUIB 2 LINE 1 R63 18LG/BK
2 DRIVER SQUIB 2 LINE 2 R61 18LG/VT
3 DRIVER SQUIB 1 LINE 1 R45 18LG/RD
4 DRIVER SQUIB 1 LINE 2 R43 18LG/BR

Component Location - 33
Factory service manual diagram




Component Location - 27
Factory service manual diagram




Component Location - 29
Factory service manual diagram




Component Location - 31
Factory service manual diagram






Connector:

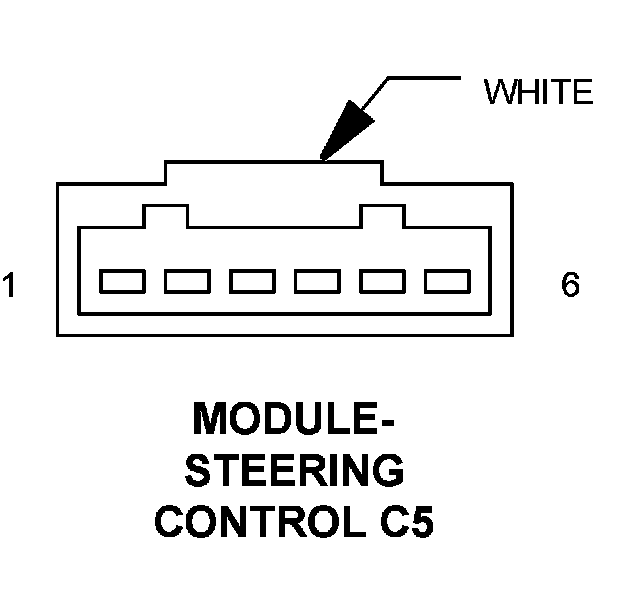

Name : MODULE-STEERING CONTROL C5
Color : WHITE
# of pins : 6
Factory service manual diagram




Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY
Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY
2 RADIO CONTROL RETURN Y13 20BK
2 RADIO CONTROL RETURN Y13 20BK
3 HORN SWITCH SENSE X3 20DB
4 S/C SIGNAL 2 V72 20PK
5 S/C SIGNAL 1 V71 20VT
6 S/C SWITCH GROUND V937 20YL

Component Location - 33
Factory service manual diagram




Component Location - 27
Factory service manual diagram




Component Location - 29
Factory service manual diagram




Component Location - 31
Factory service manual diagram
