2006 Jeep Wrangler X, AutomaticFACTORY OEM SERVICE PROCEDURE
O2 Sensor: Removal: 2.4L
CAUTION:
Never apply any type of grease to the oxygen sensor electrical connector or attempt any soldering of the sensor wiring harness.

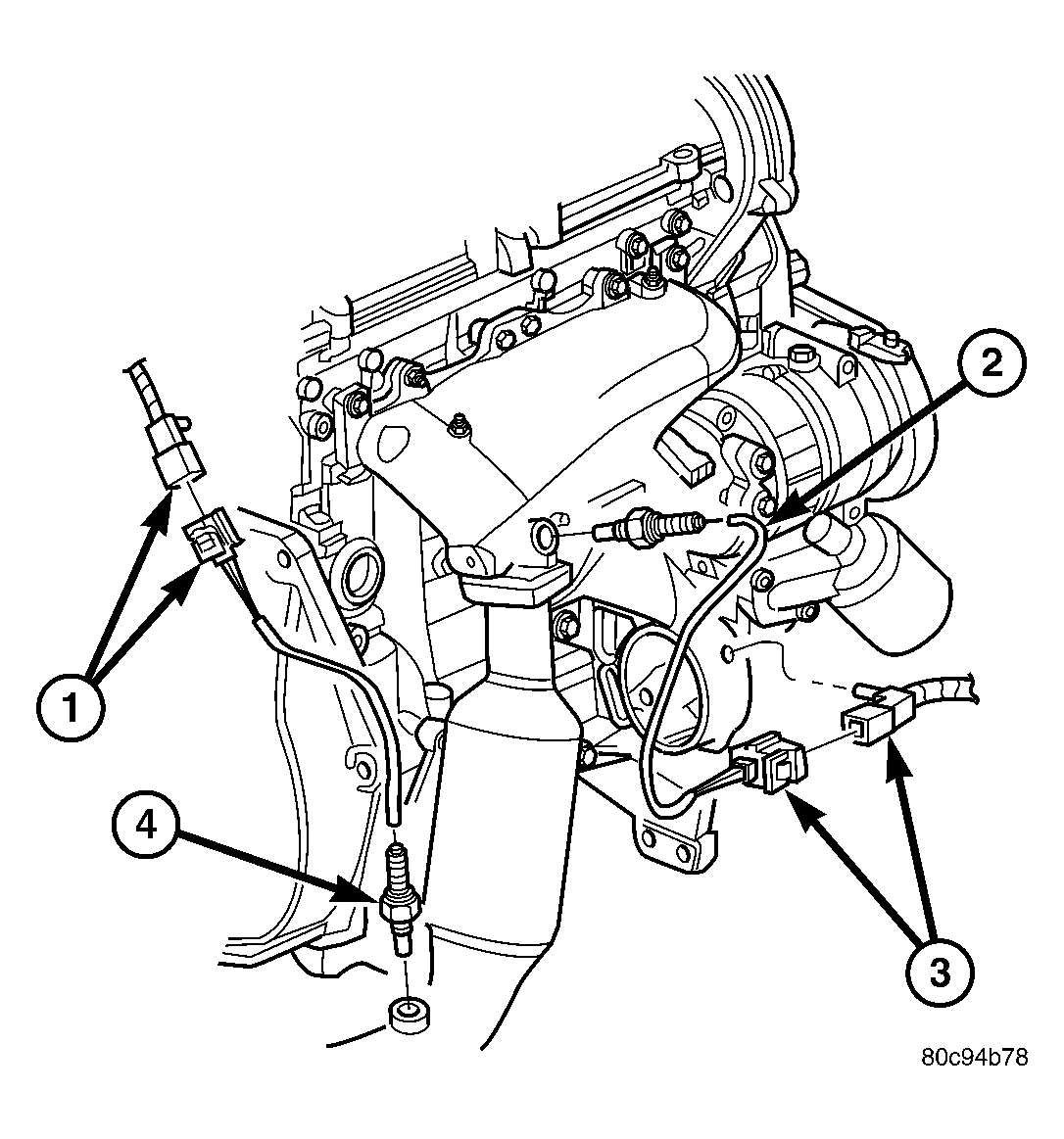

Refer to Fig 1 for O2S (oxygen sensor) location.
WARNING:
THE EXHAUST MANIFOLD, EXHAUST PIPES AND CATALYTIC CONVERTER BECOME VERY HOT DURING ENGINE OPERATION. ALLOW ENGINE TO COOL BEFORE REMOVING OXYGEN SENSOR.
- Raise and support vehicle.
- Disconnect wire connector from O2S sensor.CAUTION: When disconnecting sensor electrical connector, do not pull directly on wire going into sensor.
- Remove O2S sensor with an oxygen sensor removal and installation tool.
- Clean threads in exhaust pipe using appropriate size tap.
| 1 - ELECTRICAL CONNECTORS |
| 2 - UPSTREAM SENSOR (1/1) |
| 3 - ELECTRICAL CONNECTORS |
| 4 - DOWNSTREAM SENSOR (1/2) |
