2006 Jeep Wrangler X, AutomaticFACTORY OEM SERVICE PROCEDURE
Map Sensor: Removal: 4.0L

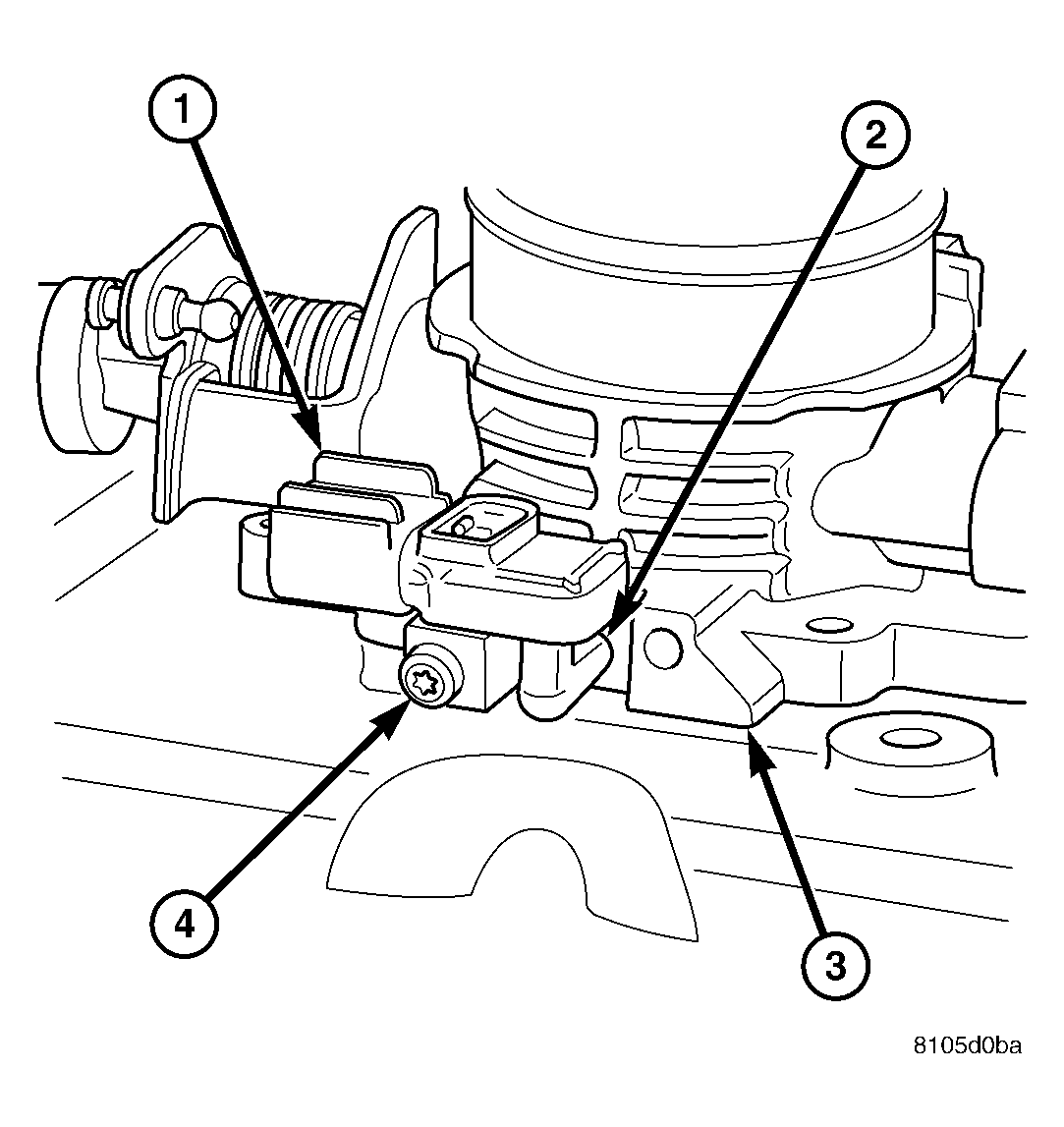

An L-shaped rubber fitting is used to connect the MAP sensor to throttle body. See Fig 1.
- Remove air cleaner intake tube at throttle body.
- Remove MAP sensor mounting bolt (screw). See Fig 1.
- While removing MAP sensor, slide the rubber L-shaped fitting from throttle body. See Fig 1.
- Remove rubber L-shaped fitting from MAP sensor.
| 1 - MAP SENSOR |
| 2 - RUBBER FITTING |
| 3 - THROTTLE BODY |
| 4 - MOUNTING SCREW (1) |
