Map Sensor: Removal: 2.4L
The Manifold Absolute Pressure (MAP) sensor is mounted into the rear of the intake manifold. See Fig 1. An o-ring is used to seal the sensor to the intake manifold. See Fig 2.
- Disconnect electrical connector at sensor.
- Clean area around MAP sensor.
- Remove sensor mounting screw (TORX head).
- Remove MAP sensor from intake manifold.
- Check condition of sensor o-ring. See Fig 2.

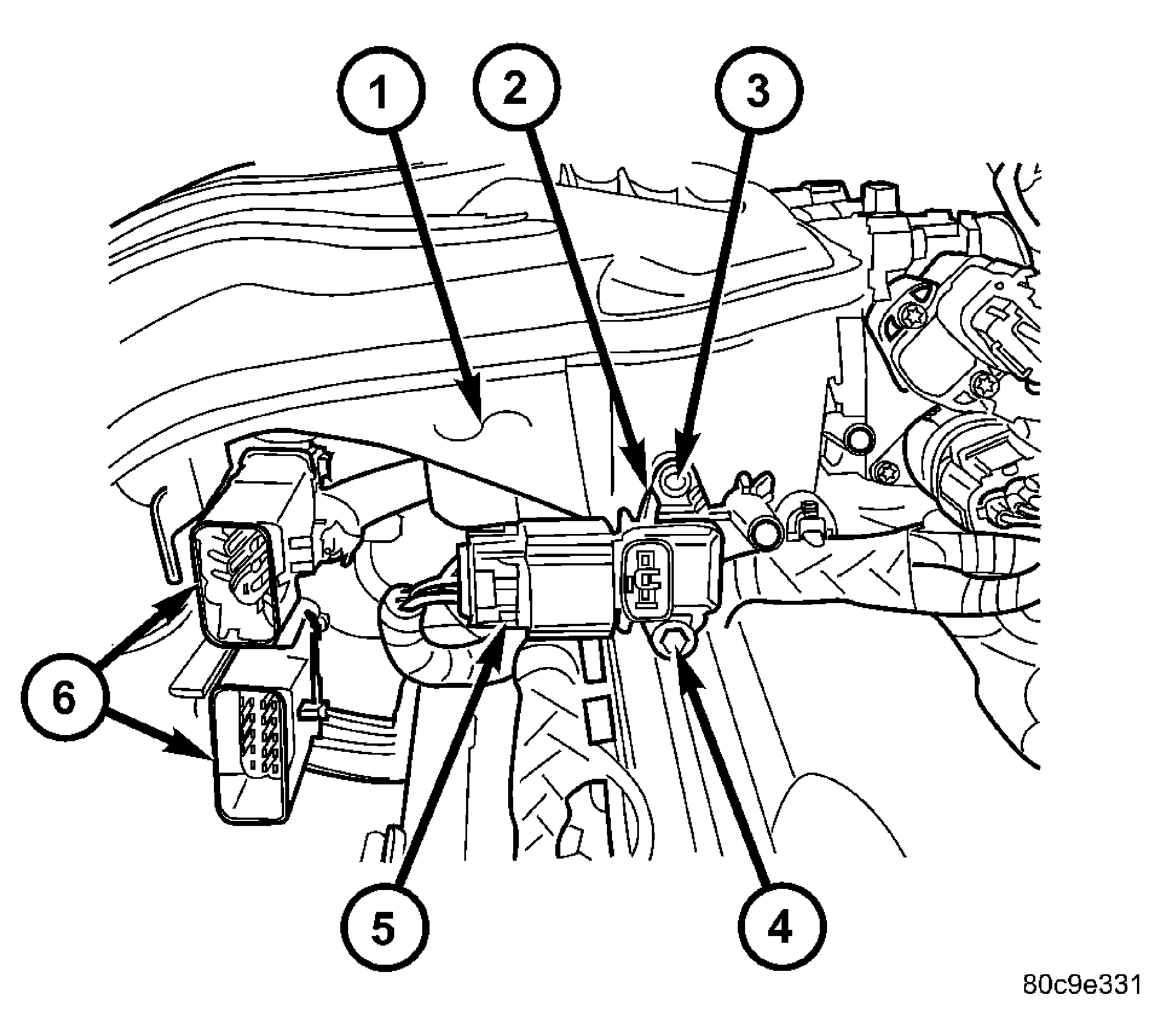

| 1 - REAR OF INTAKE MANIFOLD |
| 2 - MAP SENSOR |
| 3 - ALIGNMENT PIN |
| 4 - MOUNTING BOLT (TORX) |
| 5 - ELECTRICAL CONNECTOR |
| 6 - MAIN ENGINE HARNESS CONNECTORS |
| 1 - MAP SENSOR |
| 2 - O-RING |
