2006 Jeep Commander Base, 3.7 K, AWDFACTORY OEM SERVICE PROCEDURE
Sensor-Throttle Position: Removal: 4.7L

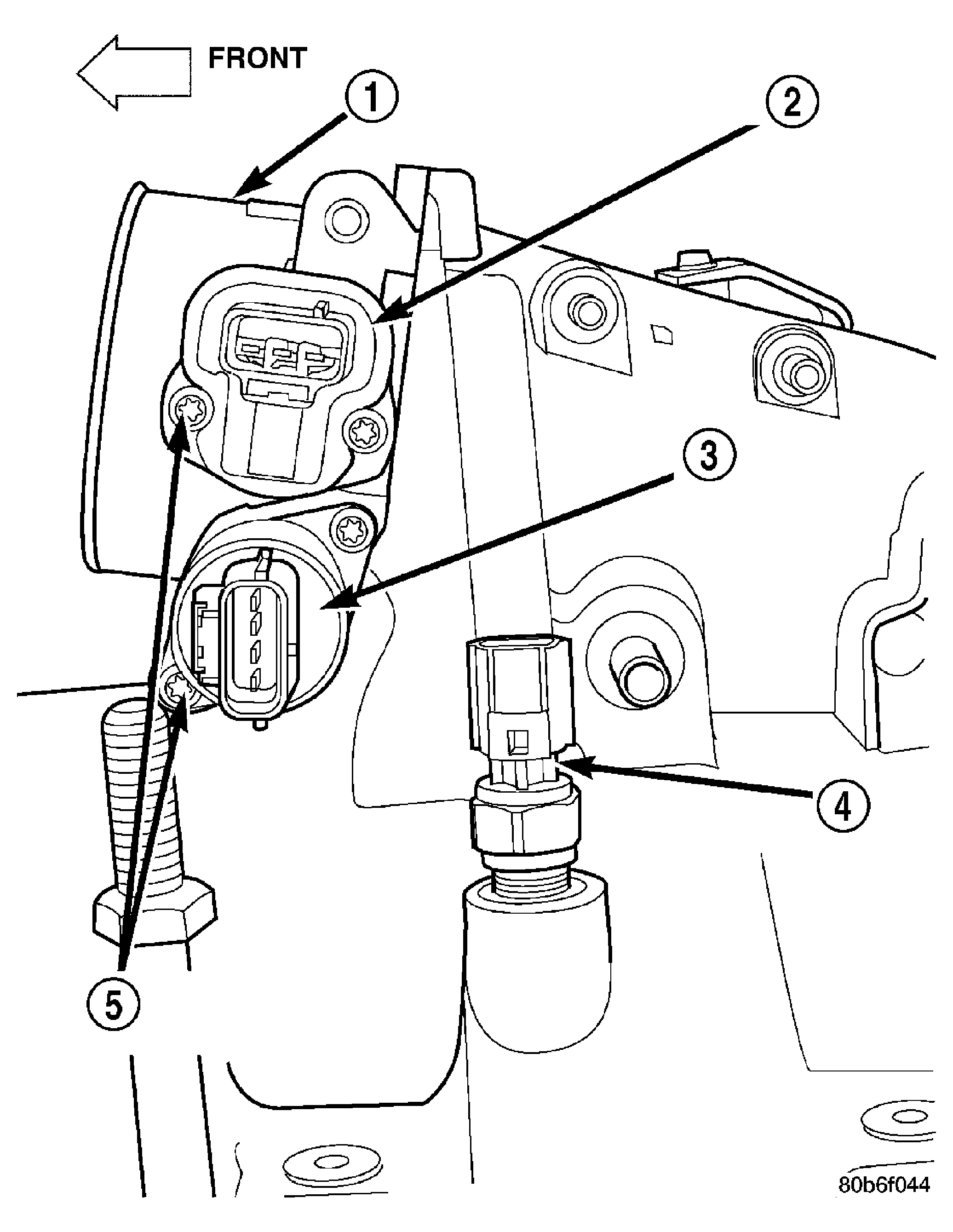

| 1 - THROTTLE BODY |
| 2 - TPS |
| 3 - IAC MOTOR |
| 4 - IAT SENSOR (THREADED TYPE) |
| 5 - MOUNTING SCREWS |
The TPS is located on the throttle body (2). See Fig 1.
- Remove air duct and tube at throttle body.
- Disconnect TPS electrical connector.
- Remove two TPS mounting bolts (screws) (5).
- Remove TPS from throttle body.
