Fuel Pump Module: Removal
Fuel tank removal will be necessary for fuel pump module removal.
- Drain fuel tank and remove tank. See FUEL TANK .
- Thoroughly wash and clean area around pump module to prevent contaminants from entering tank.

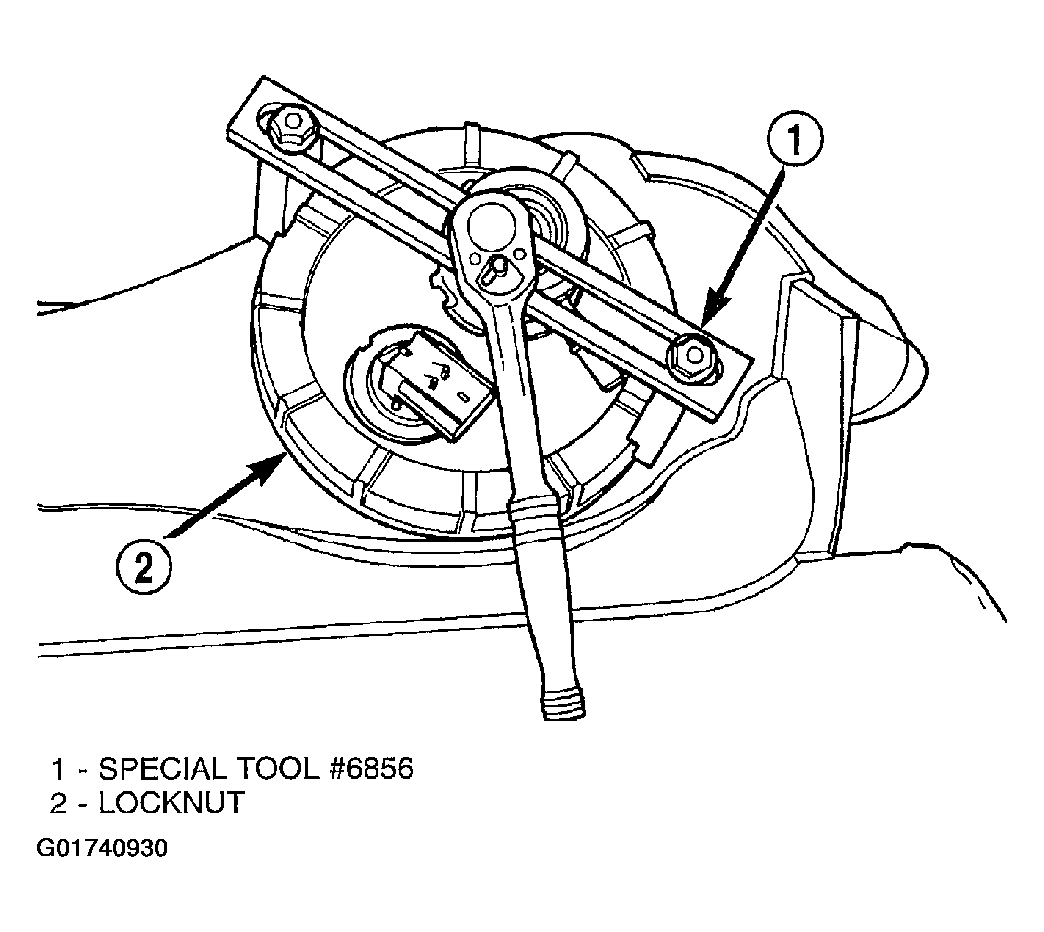

- The plastic fuel pump module locknut is threaded onto fuel tank. Install Special Tool 6856 to fuel pump module locknut and remove locknut. The fuel pump module will spring up when locknut is removed.
- Remove module from fuel tank.
