2004 Jeep Liberty Limited, RWDFACTORY OEM SERVICE PROCEDURE

PCV Valve: Description: 3.7L

The 3.7L V-6 engine is equipped with a closed crankcase ventilation system and a Positive Crankcase Ventilation (PCV) valve.

This system consists of:

A PCV valve mounted to the oil filler housing. The PCV valve is sealed to the oil filler housing with an o-ring.

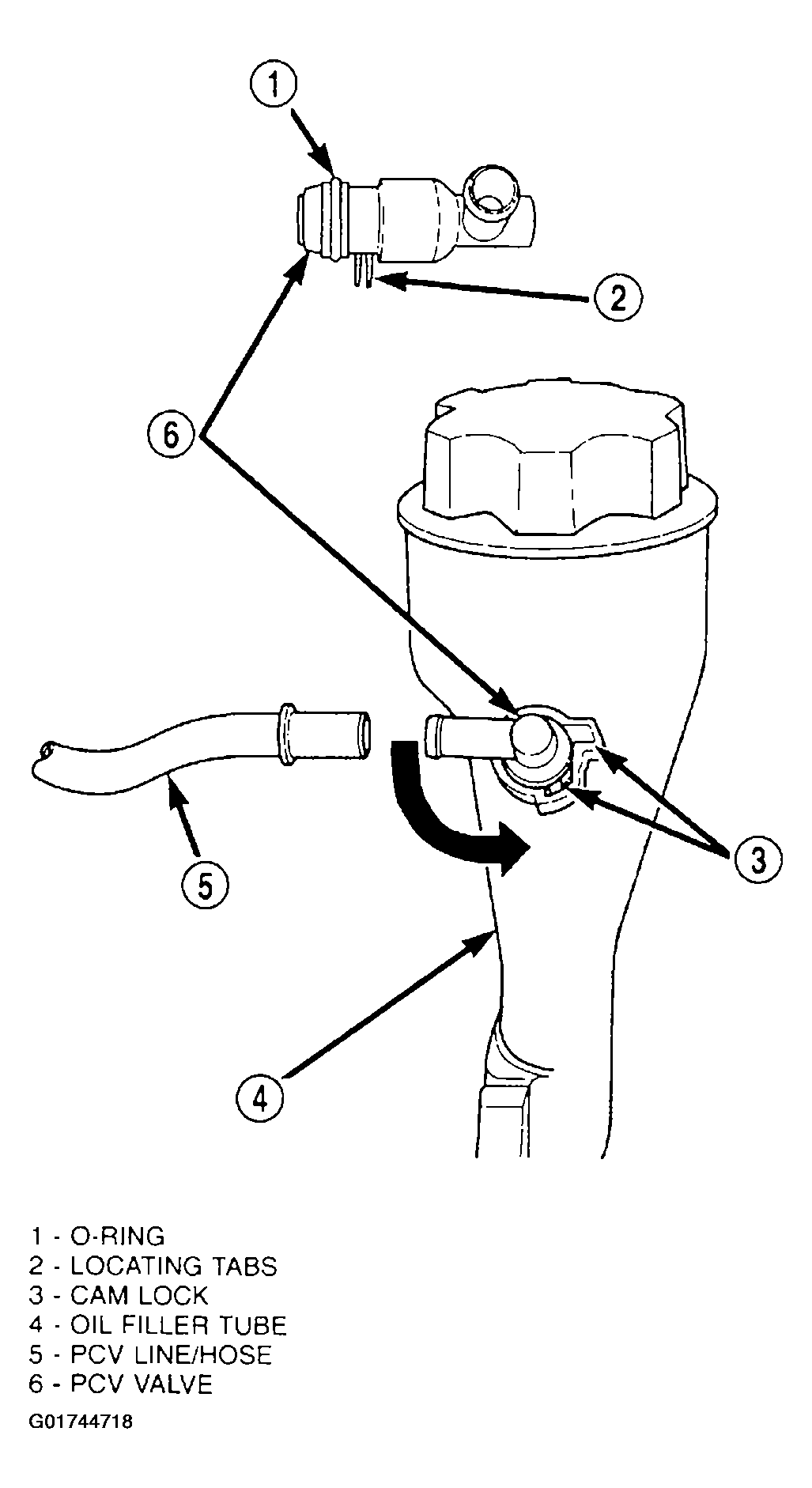

Fig 1: Identifying PCV Valve - 3.7L
Courtesy of DAIMLERCHRYSLER CORP.
the air cleaner housing
two interconnected breathers threaded into the rear of each cylinder head.

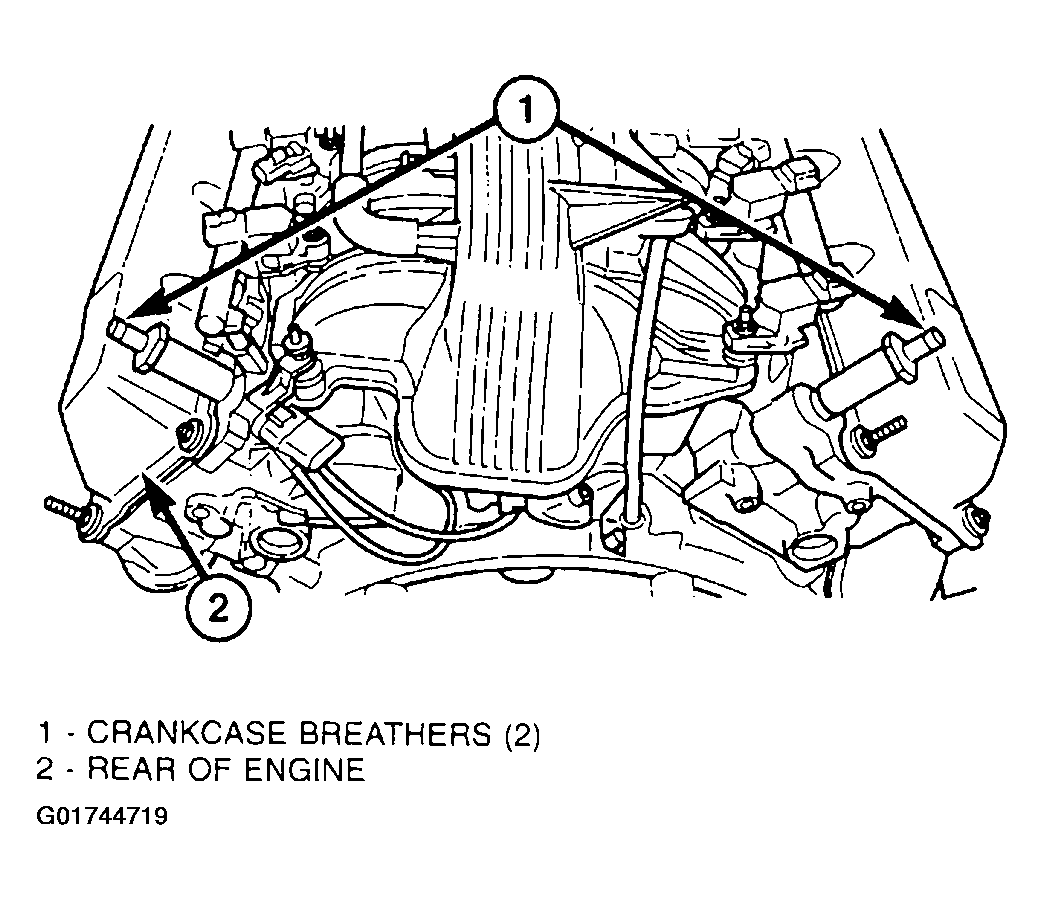

Fig 2: Locating Crankcase Breathers (2) - 3.7L
Courtesy of DAIMLERCHRYSLER CORP.
tubes and hoses to connect the system components.
