Leak Detection Pump: Removal

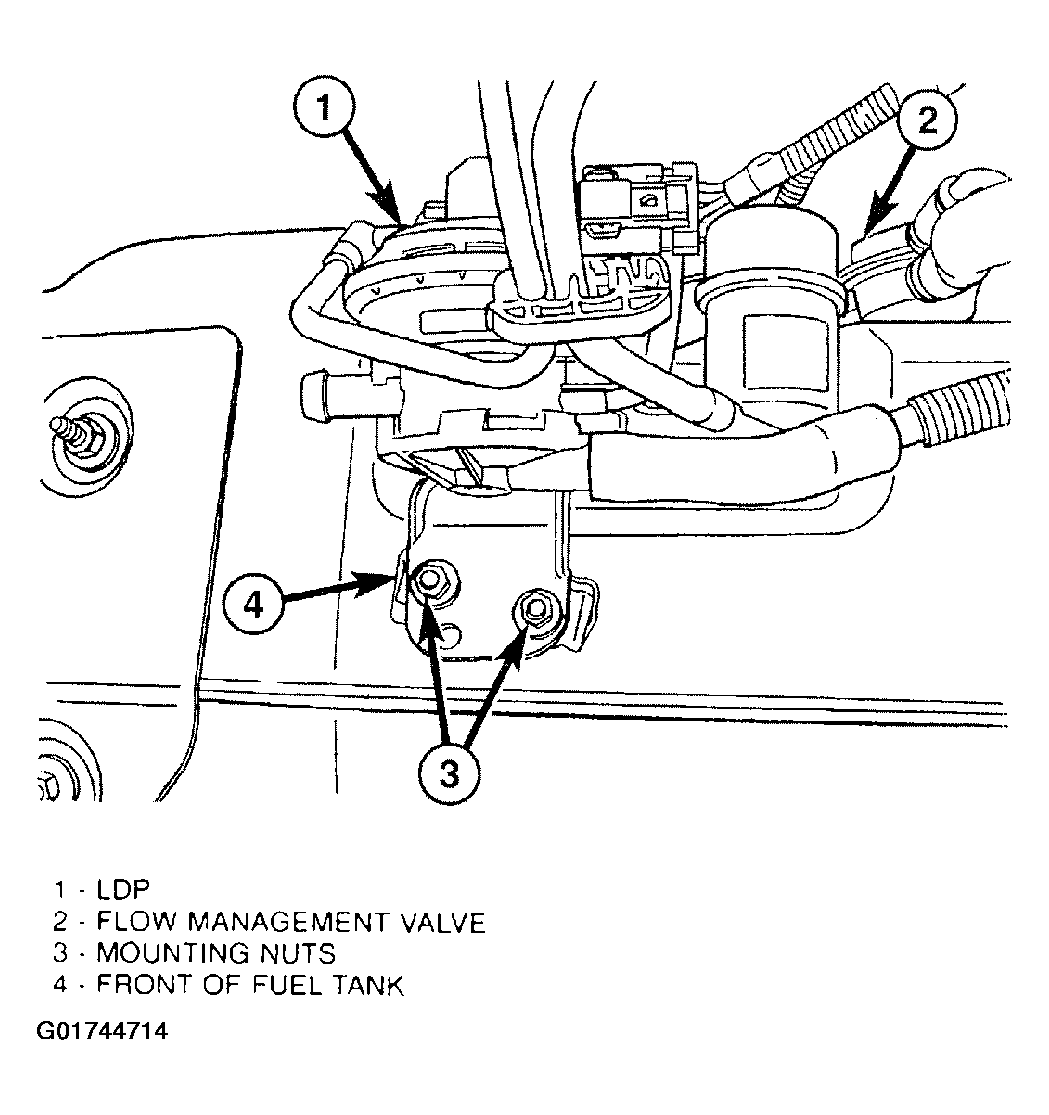

The Leak Detection Pump (LDP) is attached (bolted) to the front of the fuel tank. The LDP fresh air filter is located on the end of a hose. This hose is attached to the fuel fill tube assembly below and near the fuel fill opening. The LDP and LDP filter are typically replaced (serviced) as one unit.
- Raise vehicle.
- Carefully remove two 3/4" vent hoses at sides of LDP.
- Carefully remove other vapor/vacuum hoses from LDP.
- Place a hydraulic jack under fuel tank.
- Loosen 2 fuel tank strap mounting bolts at front of tank about 10 turns.
- Lower front of fuel tank about 1/2".
- Remove 2 LDP mounting nuts and lower LDP slightly to gain access to electrical connector.

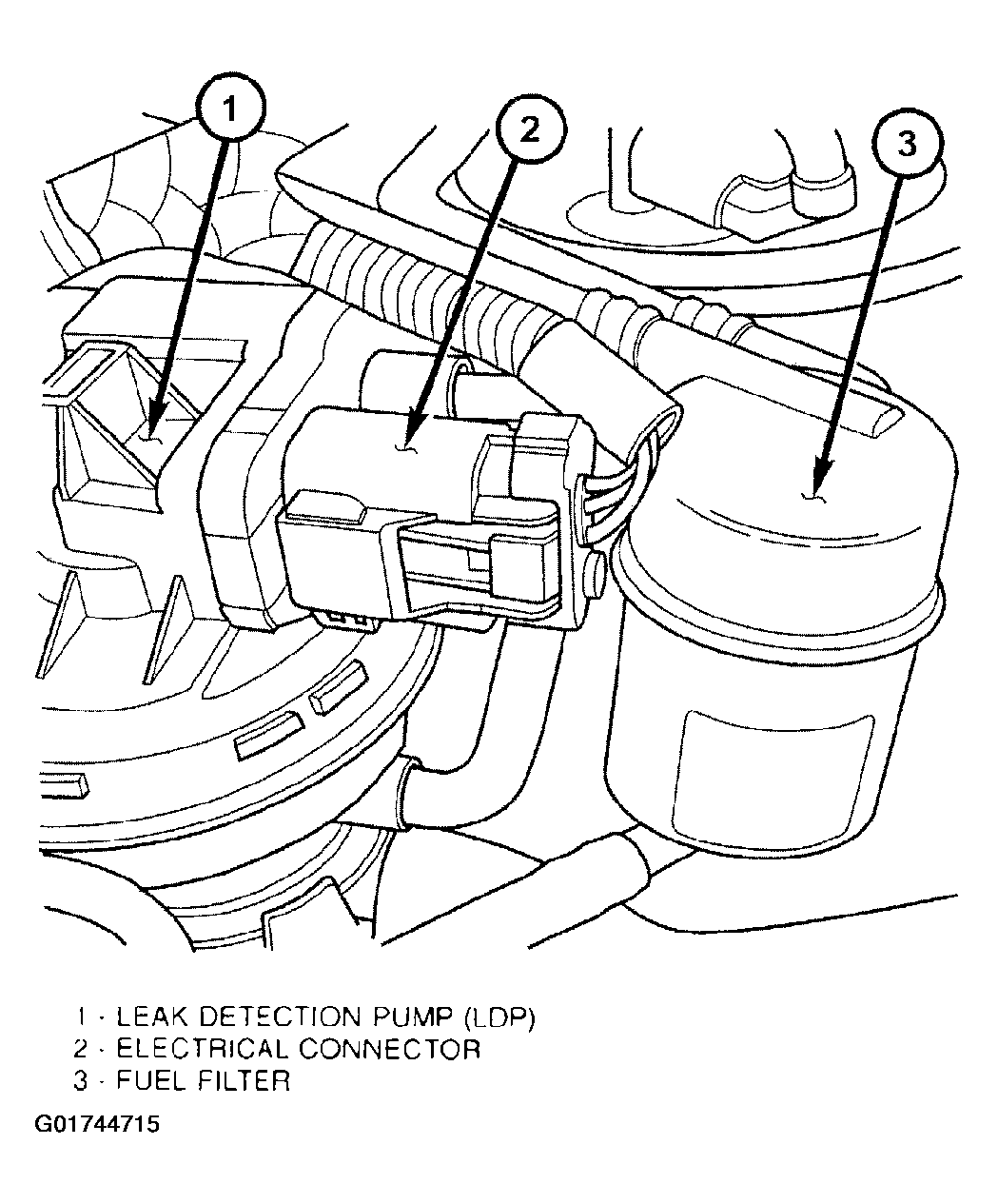

- Disconnect electrical connector at LDP. To disconnect: Slide red colored tab upward. Push on black colored tab while removing connector.
- Remove LDP from vehicle.
