2004 Jeep Liberty Limited, RWDFACTORY OEM SERVICE PROCEDURE
Map Sensor: Removal: 3.7L

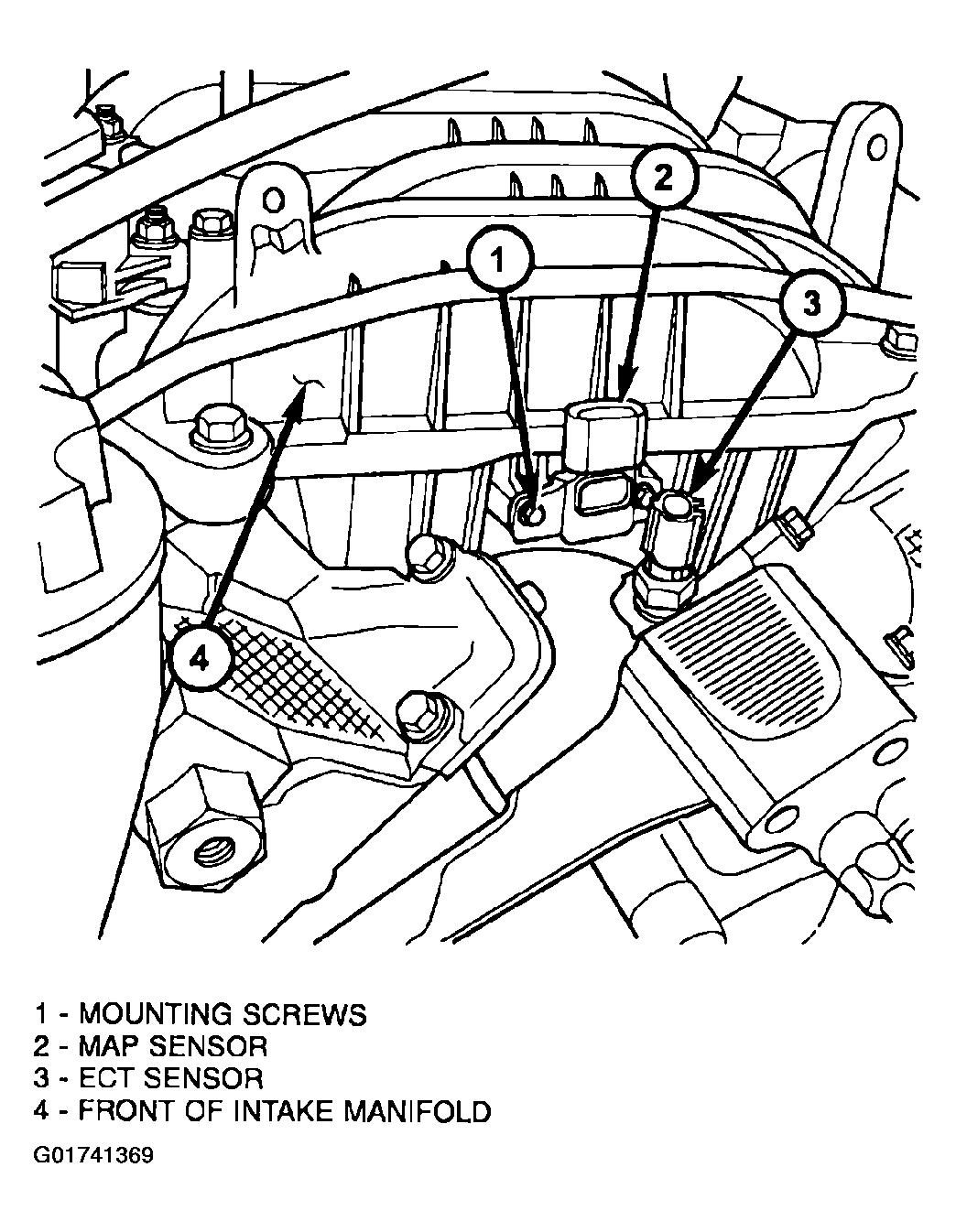

The Manifold Absolute Pressure (MAP) sensor is mounted into the front of the intake manifold. An o-ring is used to seal the sensor to the intake manifold. See Figure.
- Disconnect electrical connector at sensor.
- Clean area around MAP sensor.
- Remove 2 sensor mounting screws.
- Remove MAP sensor from intake manifold.
- Check condition of sensor o-ring. See Figure.
