2002 Jeep TJ (CANADA) L6-4.0LFACTORY OEM SERVICE PROCEDURE
Engine Specifications

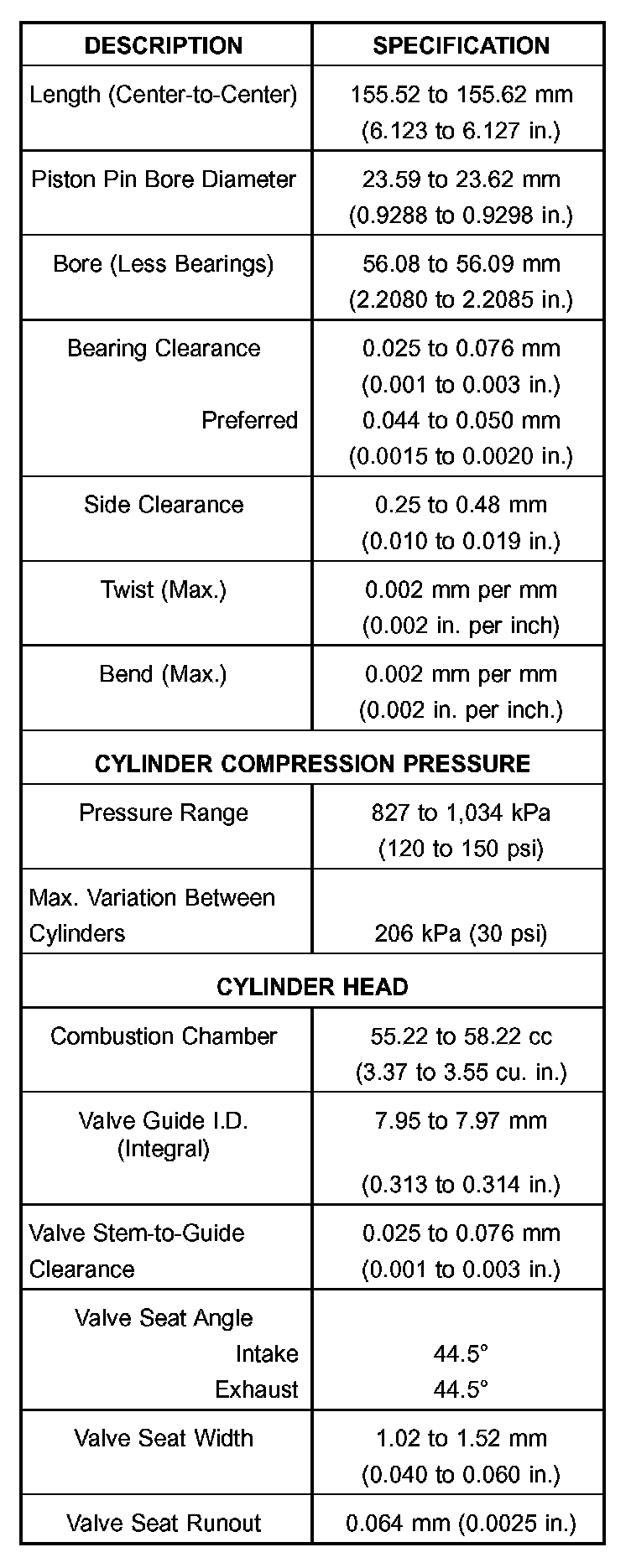

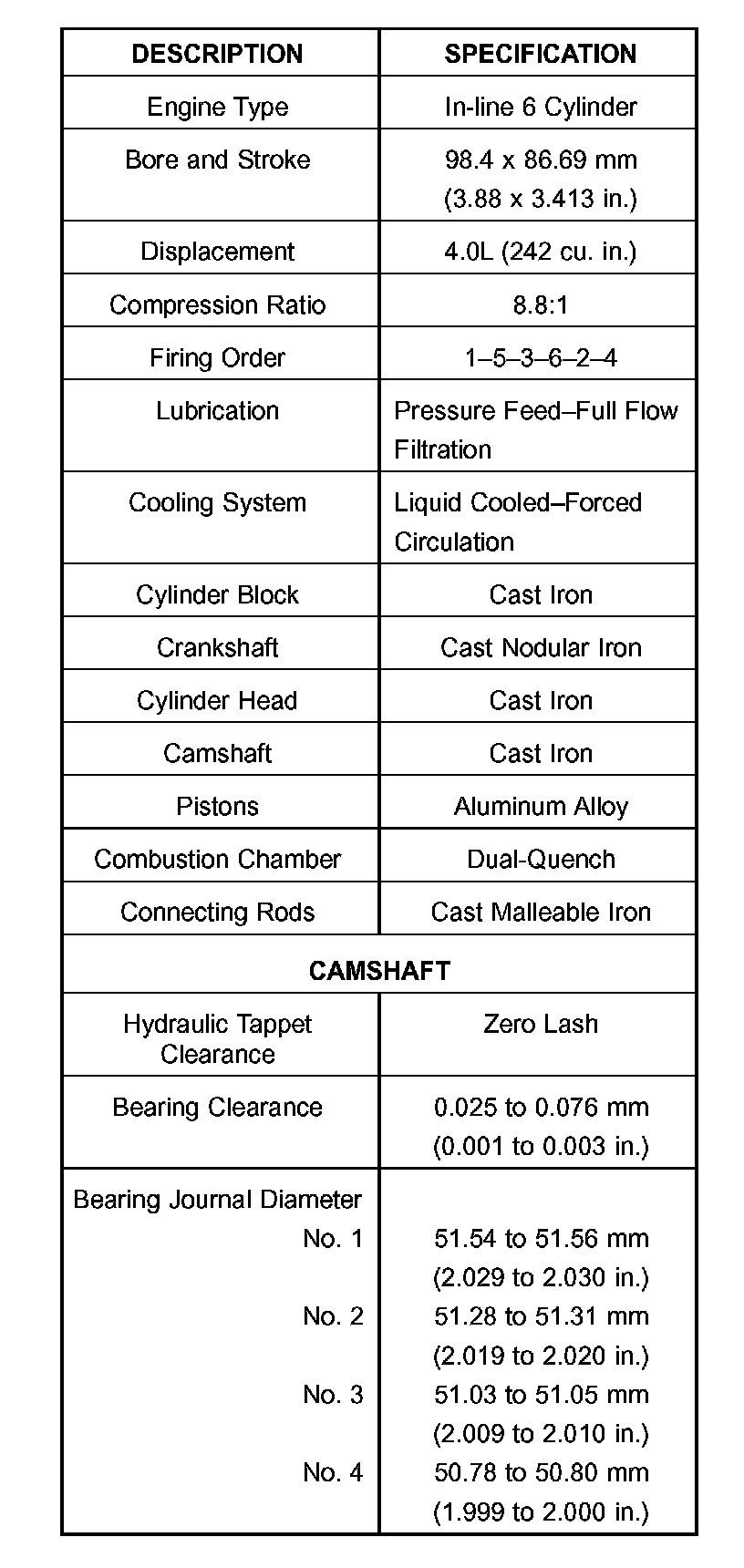

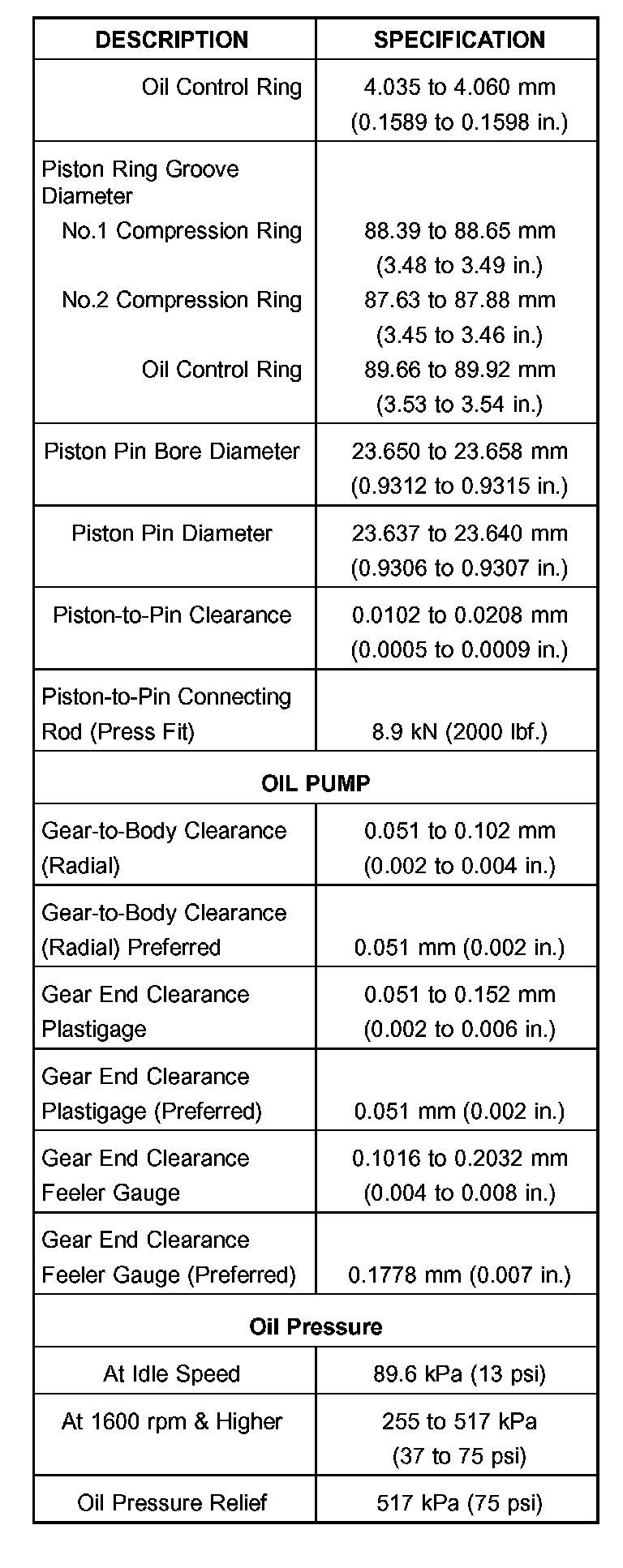

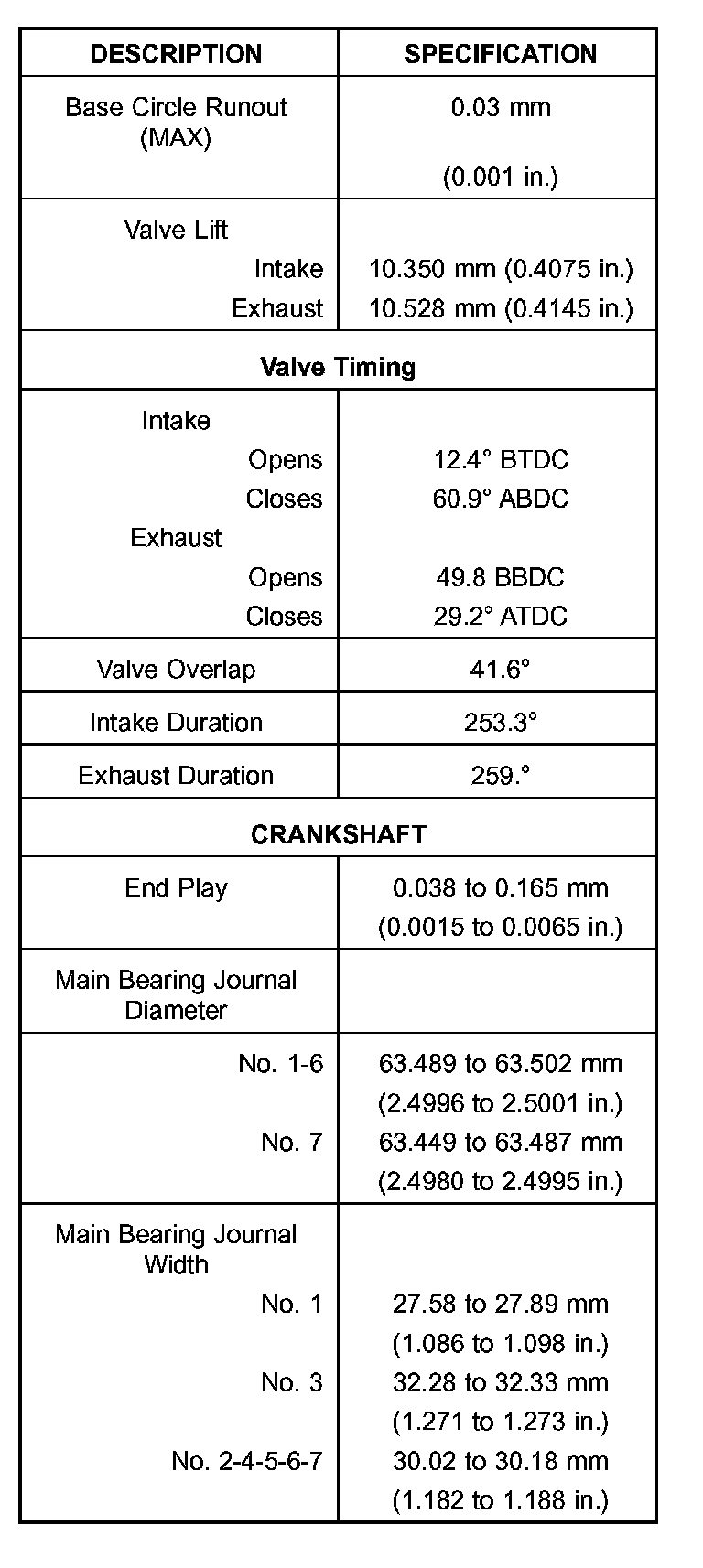

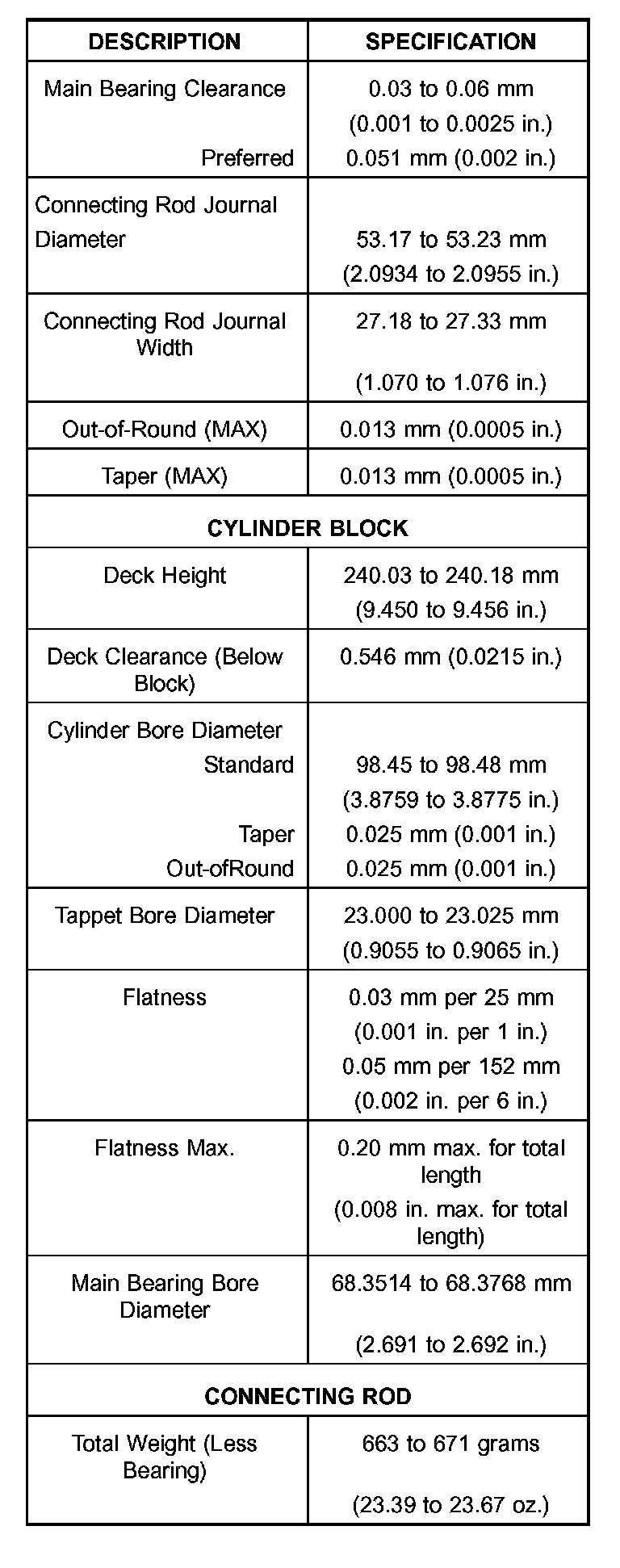

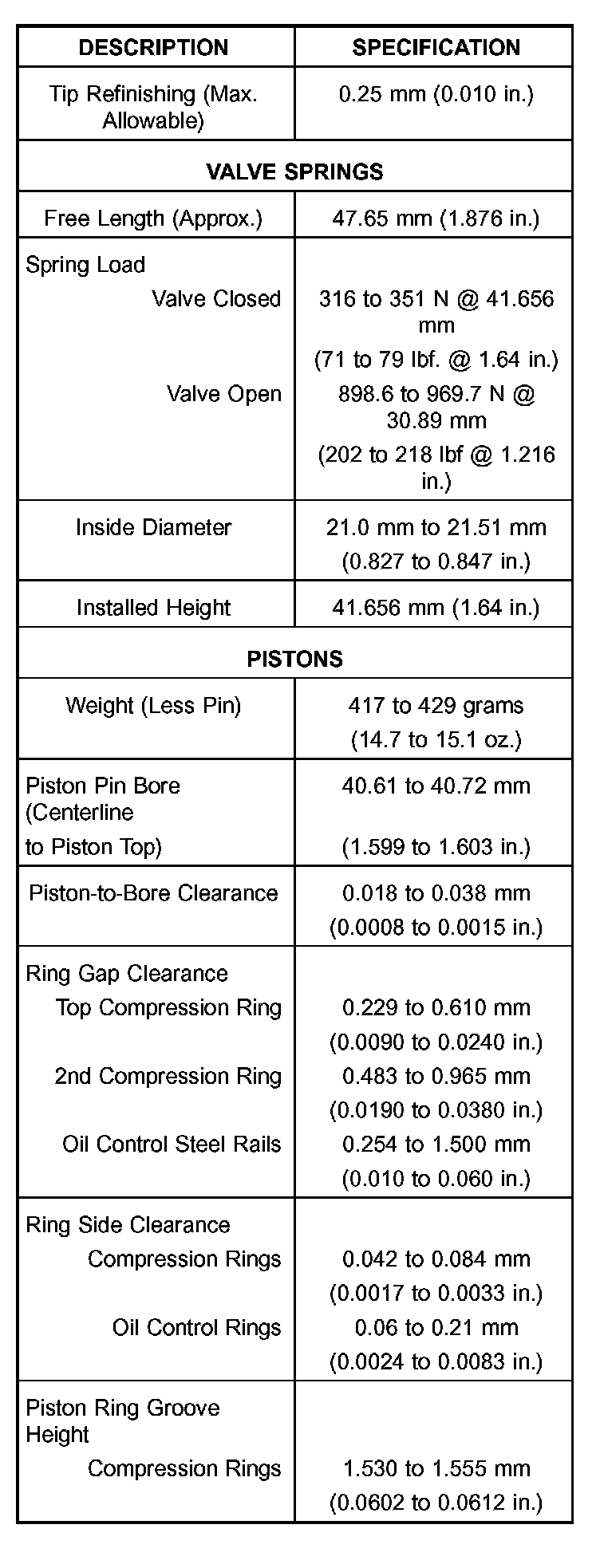

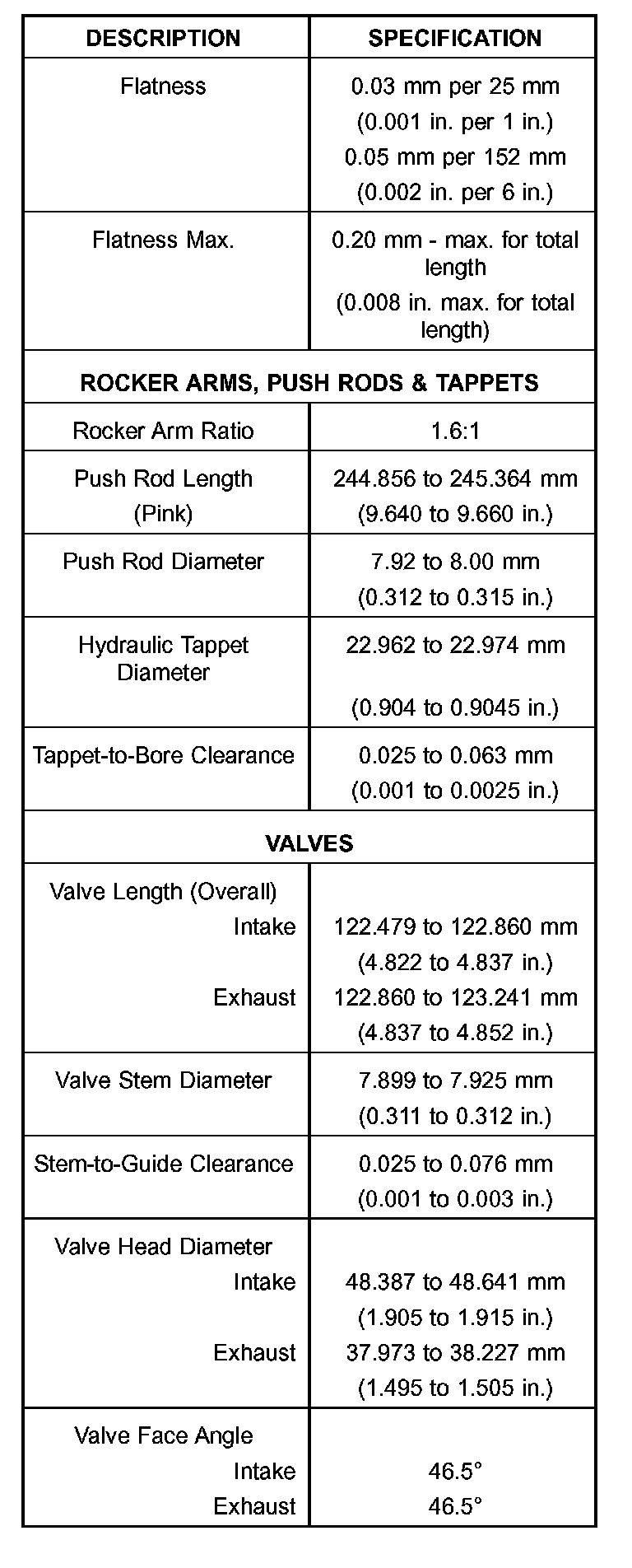

Engine General Specifications Part 1 of 7
Engine General Specifications Part 2 of 7
Engine General Specifications Part 3 of 7
Engine General Specifications Part 4 of 7
Engine General Specifications Part 5 of 7
Engine General Specifications Part 6 of 7
Engine General Specifications Part 7 of 7

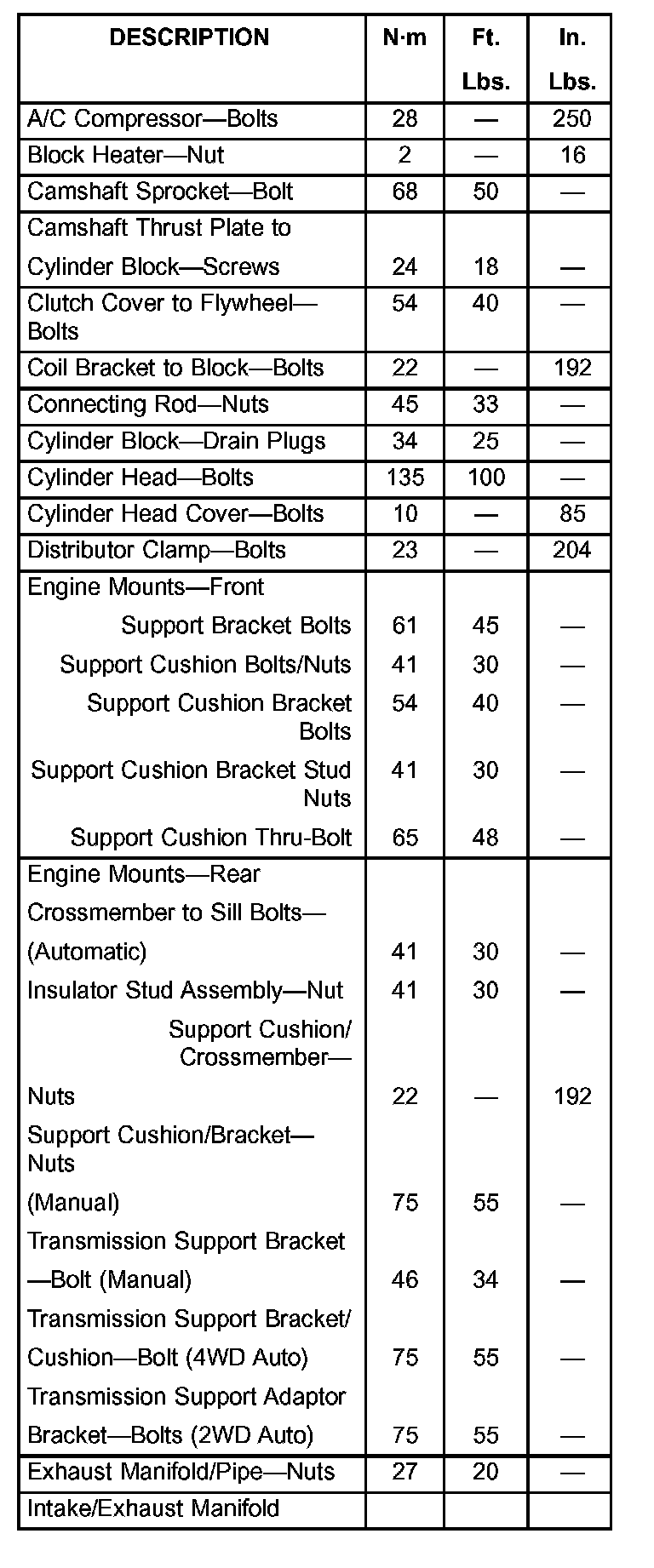

Engine Torque Specifications Part 1 of 2

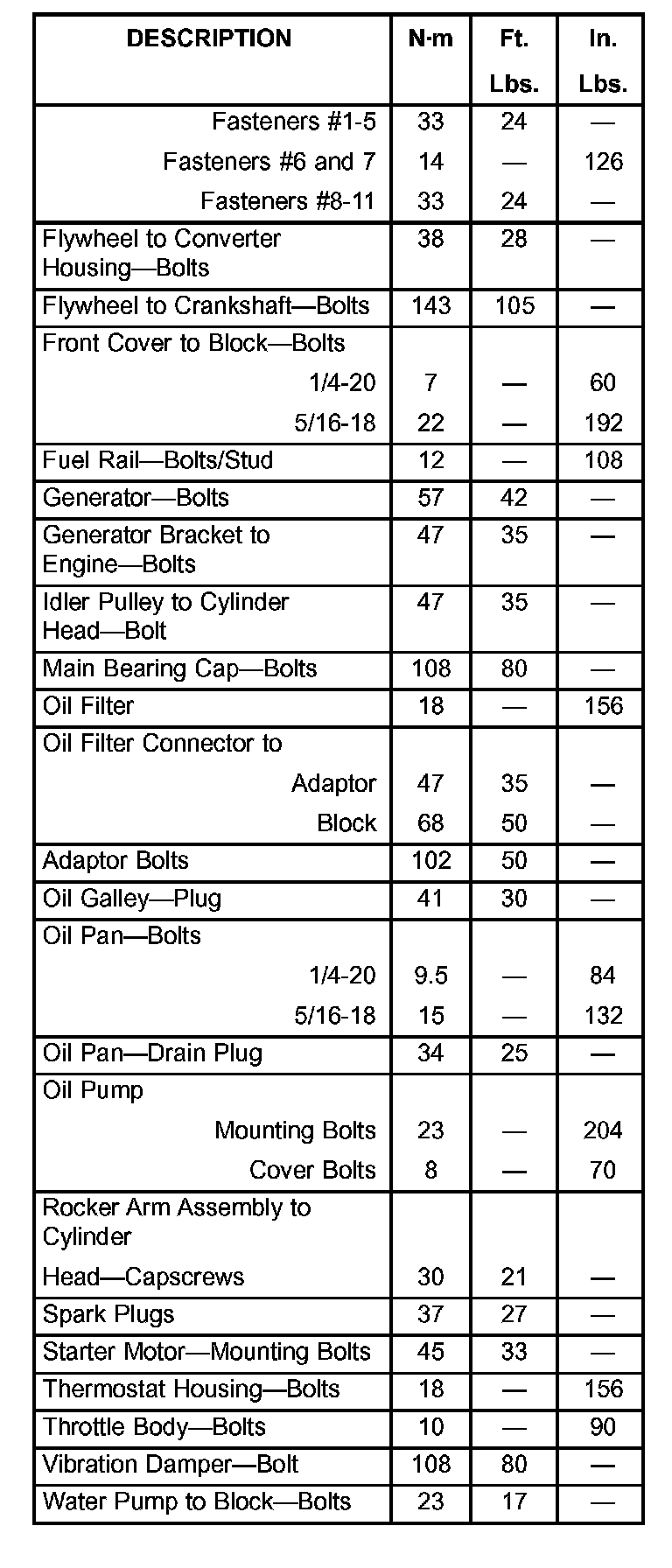

Engine Torque Specifications Part 2 of 2
Exhaust System Torque Specifications Part 1 of 2
Exhaust System Torque Specifications Part 2 of 2
