2002 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE
Intake Manifold Torque Specifications
REMOVAL

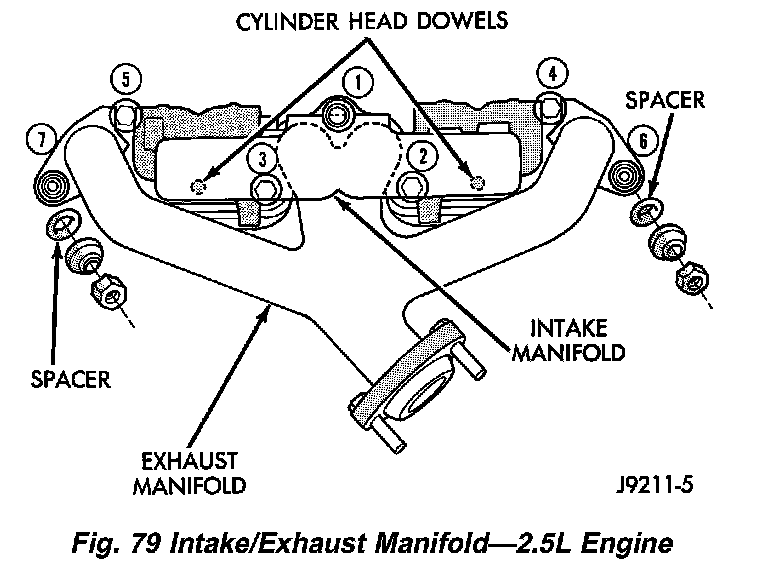

Remove bolts 2 through 5 securing the intake manifold to the cylinder head (Fig. 79). LOOSEN BUT DO NOT REMOVE exhaust manifold bolt No. 1 and nuts 6 and 7.
INSTALLATION
Tighten the fasteners in sequence and to the specified torque (Fig. 79).
- Fastener No. 1-Tighten to 41 Nm (30 ft. lbs.) torque.
- Fasteners Nos. 2 through 5-Tighten to 31 Nm (23 ft. lbs.) torque.
- Fasteners Nos. 6 and 7-Tighten to 23 Nm (17 ft. lbs.) torque.
Power steering pump bolts to 28 Nm (21 ft. lbs.).
Bracket to water pump bolts to 47 Nm (35 ft. lbs.).
